Kinetix 5700 DC-bus Conditioner Module
Minimum Clearance Requirements
Mount the DC-bus Conditioner Module
The following mounting guidelines apply:
• The DC-bus conditioner module is required with a 2198-RPxxx regenerative-bus supply
cluster when the combined motor cable lengths exceed 400 m (1312 ft).
• The DC-bus conditioner module is also required with all extended clusters.
• The DC-bus conditioner module is required with all regenerative-bus supply clusters
and extended clusters when using an impedance-grounded power configuration.

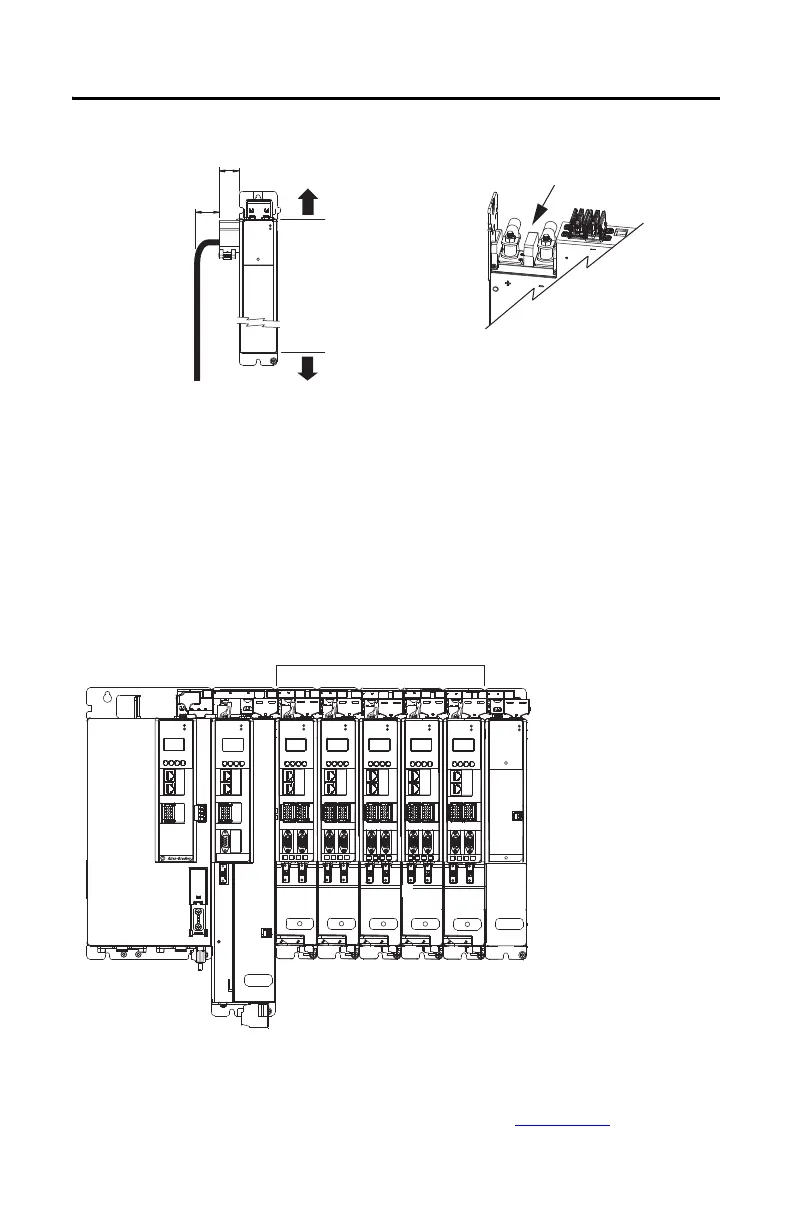

Kinetix 5700 Drive System with Single Drive Cluster
In this example, the DC-bus conditioner module is required because the combined motor cable
length exceeds 400 m (1312 ft). The 2198-RPxxx module is positioned on the far left, with the
DC-bus supply feeding into the inverter with the highest power rating.
Refer to the Kinetix 5700 Servo Drives User Manual, publication 2198-UM002
, for more
information and examples of single cluster configurations.
