Rockwell Automation Publication 2198-IN016B-EN-P - October 2018 11
Kinetix 5700 DC-bus Conditioner Module
Ground Your DC-bus Conditioner Module to the Subpanel
Ground Bulletin 2198 drives and DC-bus conditioner modules to a bonded cabinet ground-bus
with a braided ground strap.

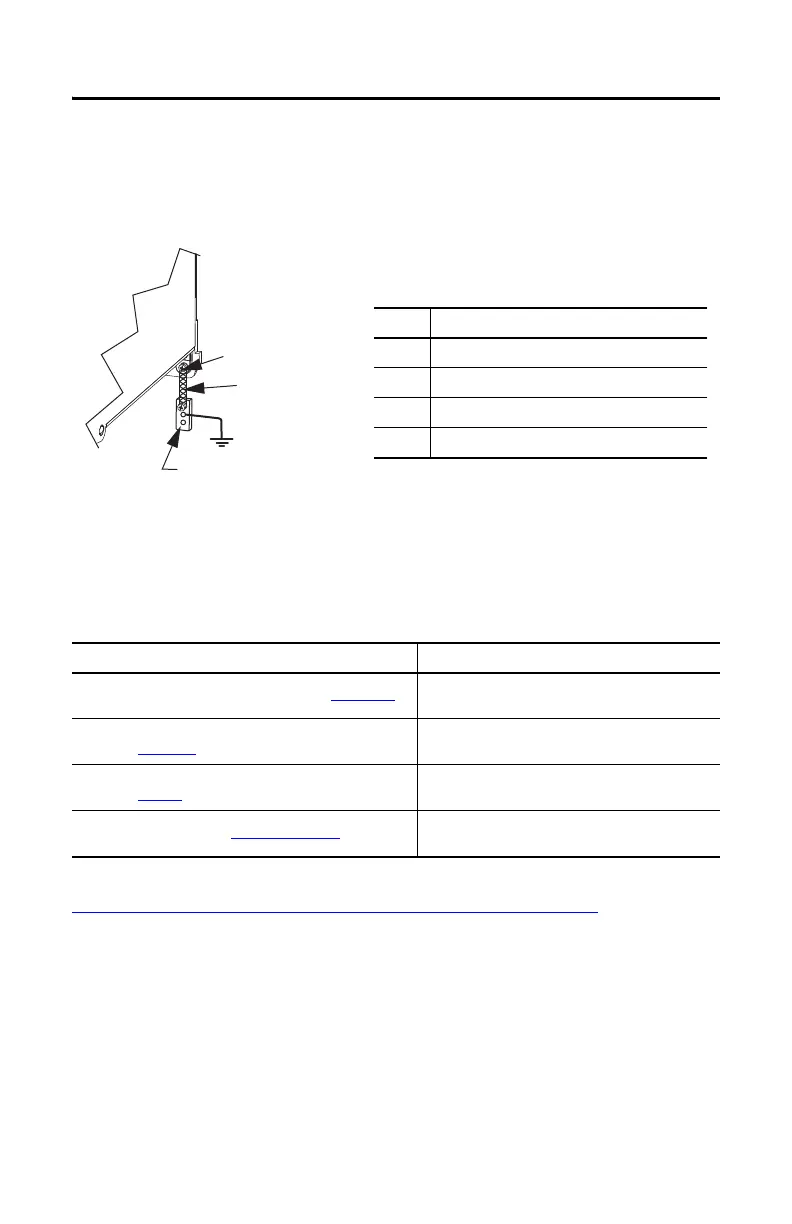

Connecting the Braided Ground Strap
Additional Resources
These documents contain additional information concerning related products from
Rockwell Automation.
You can view or download publications at
http://www.rockwellautomation.com/global/literature-library/overview.page
.
Resource Description
Kinetix 5700 Servo Drives User Manual, publication 2198-UM002
Provides information on installing, configuring, starting,
and troubleshooting your Kinetix 5700 servo drive system.
Kinetix 5700 Capacitor Modules Installation Instructions,
publication 2198-IN008
Provides information on installing and wiring the
Kinetix 5700 capacitor module and extension module.
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1
Provides general guidelines for installing a Rockwell
Automation industrial system.
Product Certifications website, rok.auto/certifications
Provides declarations of conformity, certificates, and other
certification details.
4
3
2
1
2198-DCBUSCOND-RP312
DC-bus Conditioner Module
(side view)
Item Description
1 Ground screw (green) 2.0 N•m (17.5 lb•in), max
2 Braided ground strap (customer supplied)
(1)
(1) Make braided ground straps 12 mm (0.5 in.) by 0.8 mm (0.03 in.).
Keep straps as short as possible.
3 Ground grid or power distribution ground
4 Bonded cabinet ground-bus (customer supplied)
