10 Rockwell Automation Publication 2198-IN016B-EN-P - October 2018
Kinetix 5700 DC-bus Conditioner Module

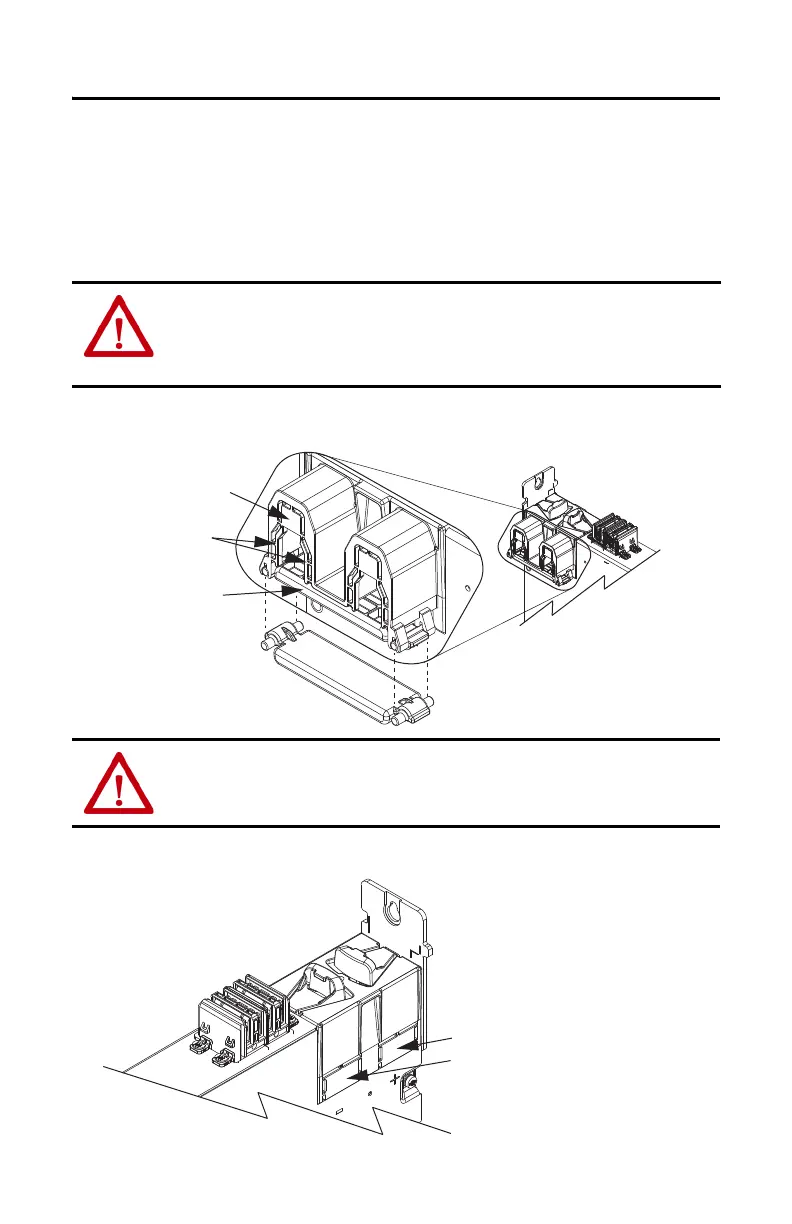

Apply Stud/Lug Covers
Covers ship with the DC-bus conditioner modules and are used to protect you from the
electrical hazard that is present on the DC-bus studs, lugs/wires, and flexible bus-bars that are
attached to the modules. Insert the appropriate cover over the external DC-bus connections. You
can rotate the covers 180° to accommodate lugs, wires, or flexible bus-bars exiting from either the
left or right.
Stud/Lug Cover With Wires
Stud Cover With Flexible Bus-bars
ATTENTION: To avoid personal injury, make sure that the appropriate cover is inserted over the
DC-bus studs, lugs/wires, or flexible bus-bars when installing the DC-bus conditioner module,
capacitor module, or extension module. Covers with wires also require a hinged bottom plate to
prevent access from below.
ATTENTION: To avoid unintentional damage to the lug cover, we recommend cutting the knockout
to remove it from the cover.
2198-DCBUSCOND-RP312
DC-bus Conditioner Module
Stud Cover
With Wires
Leave knockouts
attached for small wires
and wire lugs.
Remove knockouts for
large wires and wire lugs.
Attach Bottom Plate
Remove knockout for
external DC-bus and active
shunt connections.
Remove knockouts when flexible bus-bars are
used to connect the DC-bus conditioner module
and capacitor module or extension module.
2198-DCBUSCOND-RP312
DC-bus Conditioner Module
(side view)
