5. Once
is displayed, Press the Enter button. You will see “0 - Ready/Idle” scroll across the
display. Press the Up
or Down arrows until you see “2 – Factory Reset”.
6. Press the Enter
button to confirm. The drive will fault with a scrolling message of “F048 – Parameters Defaulted”

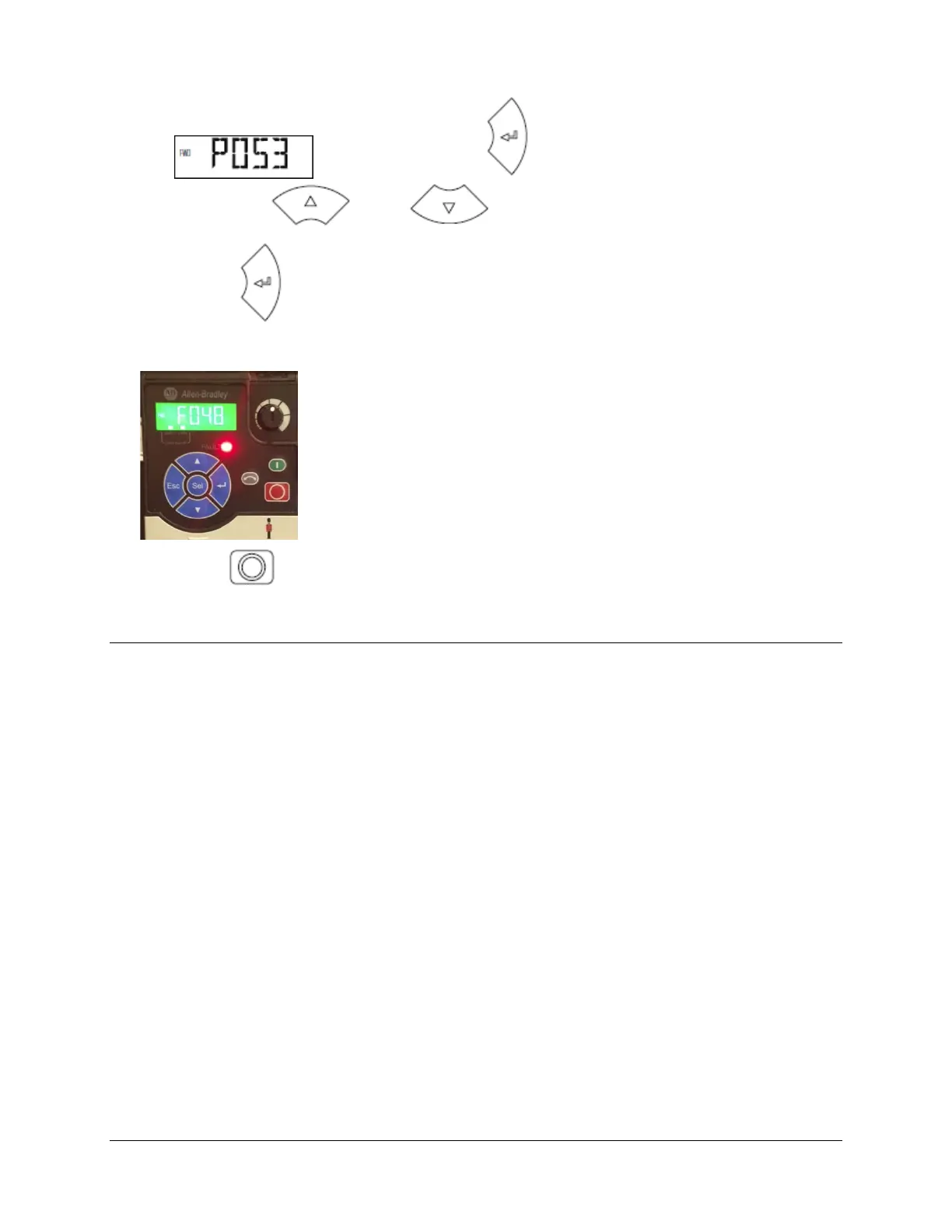

See picture below.
7. Pres the Stop
button to clear the fault from the drive.
Configuring Drive Parameters
8. Take what you have learned about the keypad operation from the Reset Drive to Defaults section to make the following
Communication group parameter changes:
• C128 – EN Addr Sel = 1 - “Parameters”
• C129 – EN IP Addr Cfg 1 = 100
• C130 – EN IP Addr Cfg 2 = 100
• C131 – EN IP Addr Cfg 3 = 100
• C132 – EN IP Addr Cfg 4 = 25
• C133 – EN Subnet Cfg 1 = 255
• C134 – EN Subnet Cfg 2 = 255
• C135 – EN Subnet Cfg 3 = 255
•
C136 – EN Subnet Cfg 4 = 0
9. In order for communication settings to take effect, cycle power to the drive by removing power to the drive. In this lab you
would simply un plug the drive from the receptacle until the display shows no sign of power (Green back ground light is
extinguished.
