Using RS Logix 5000 Version 20.01 with the PowerFlex 525 Drive Add-On Profile

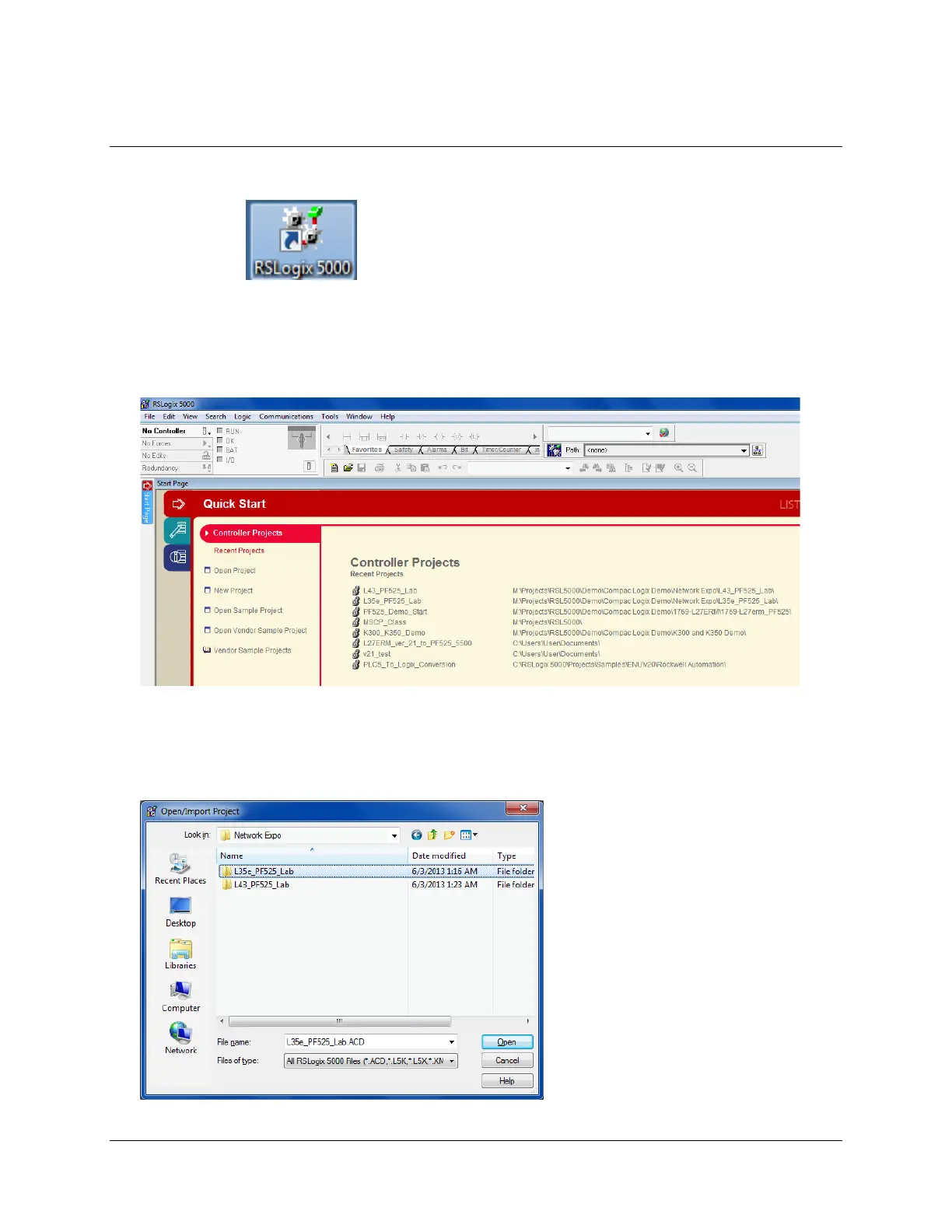

1. Start the program.
Double-click the Studio 5000 icon on the desktop, or from the Start menu, select
All Programs > Rockwell Software > RSLogix 5000 Enterprise Series> RSLogix 5000.
After the splash Screen you will see something like this:
2. A pre-configured RS Logix 5000 program has already been created for your convenience.
Depending on which Demo you have in front of you select one of the following:
Select the either the L35ePF525_Lab.ACD or L43PF525_Lab.ACD file and Click Open.
Page 43 of 64
