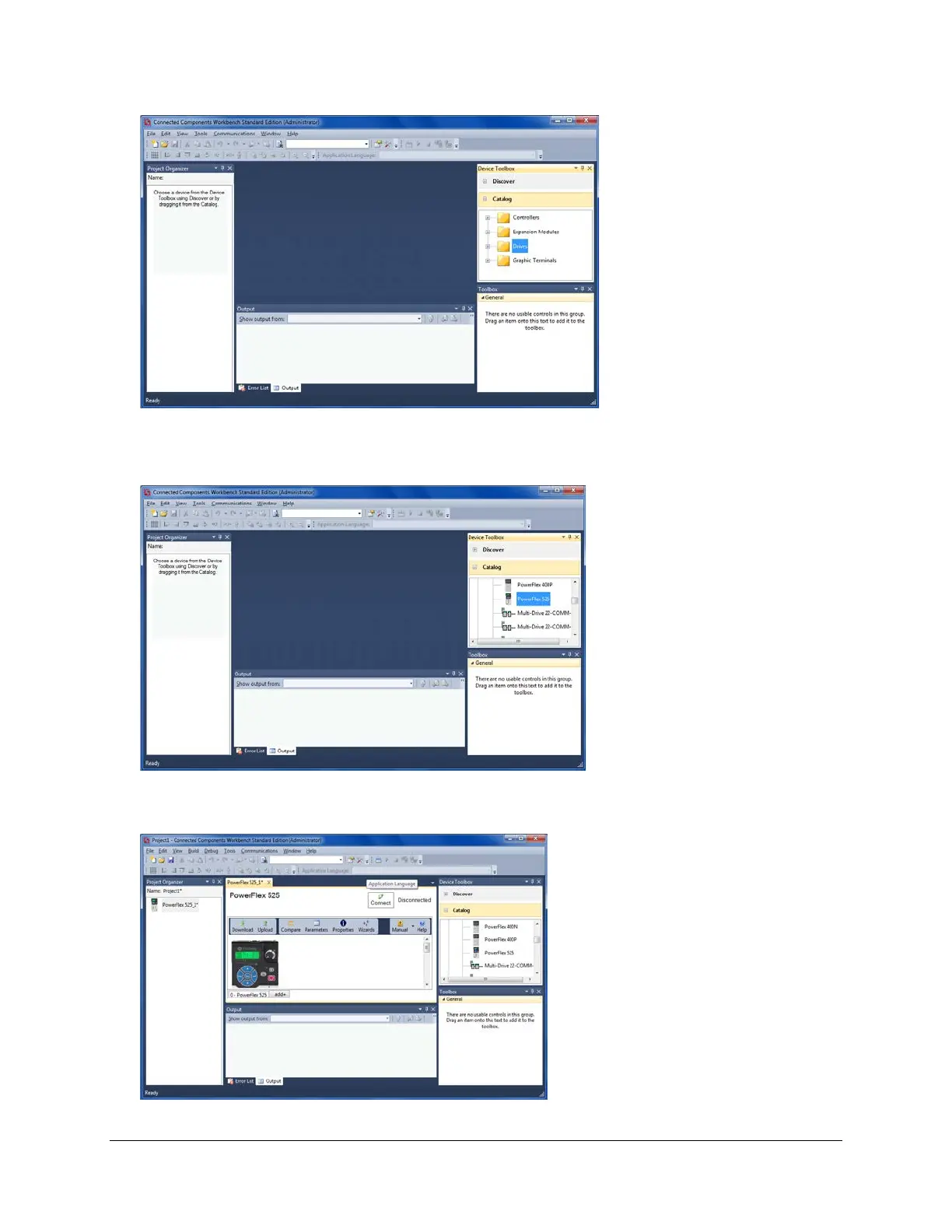

The main screen for Connected Components Workbench is as follows.
Note: You may want to maximize the Connected Components Workbench software to make viewing easier.
2. Expand the Catalog box and select the “Drives” folder as shown above. Then select ”PF525 Drive” by double mouse
clicking it.
3. After a few seconds the PF525 drive icon will appear in the “Project Organizer” Double mouse click on the drive icon and
the drive will appear in the main page as seen below. Click on each of the Push Pins for of the surrounding boxes to
maximize the view.
Page 16 of 64
