Reference Motion Planners Chapter 9

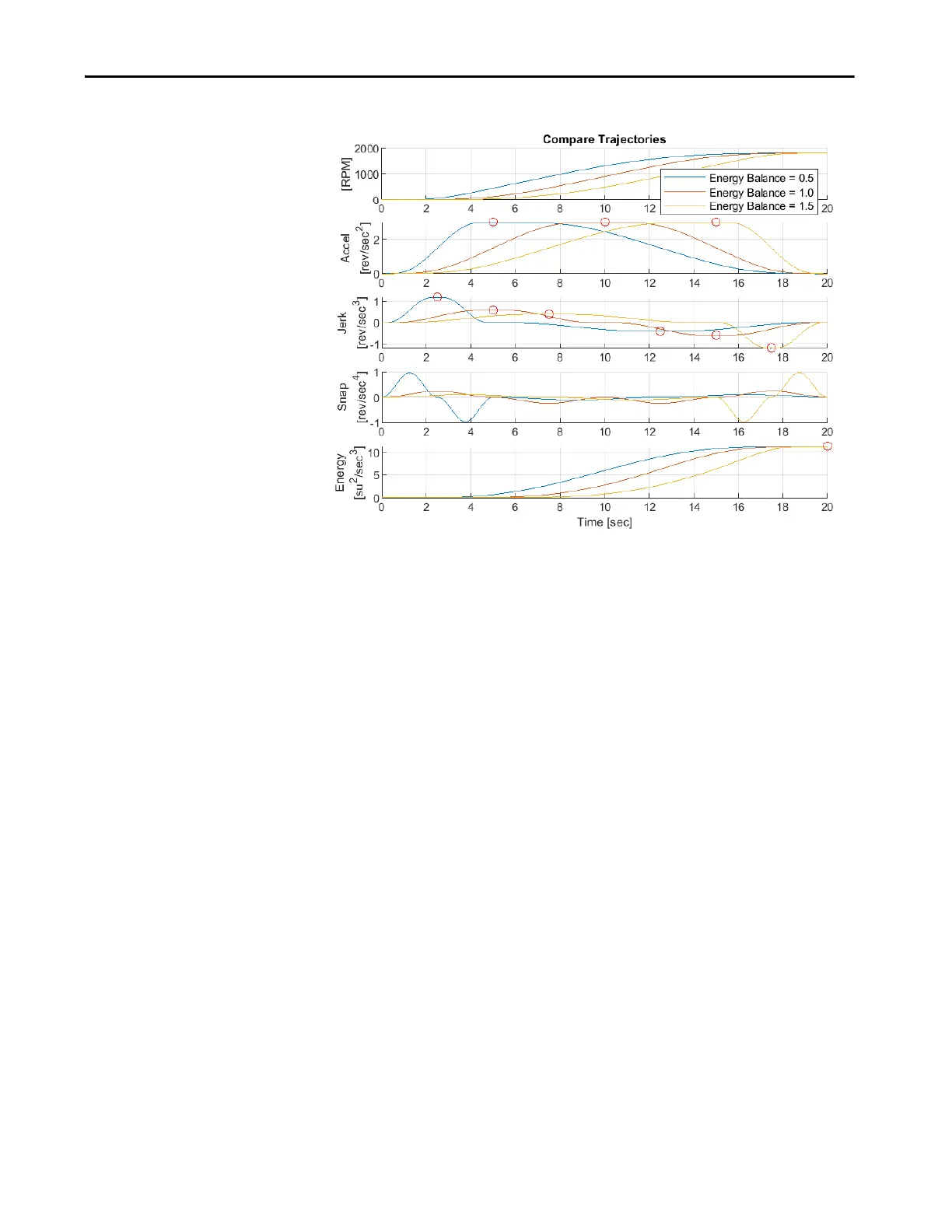

Figure 24 - Energy Balance
Note the following relationships:
• Energy Balance moves the maximum acceleration point horizontally so
that it occurs lower or higher in velocity
• For PTP moves, Energy Balance adjusts maximum velocity to balance out
area under the curve, which affects energy directly
• For PTP moves, Energy Balance trades max jerk for lower maximum
velocity, maximum acceleration, and energy
• Energy Balance does not induce dwells or extend move time
