10 Rockwell Automation Publication 750-IN017B-EN-P - June 2018
PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit
Service Cart Requirements and Safety for
Power Module Removal
The frames 8…10 service cart is fully adjustable to suit your
need. If adjustments are needed to the reach or height of the
bridge, see section Adjust the Service Cart
on page 9 for more
information.

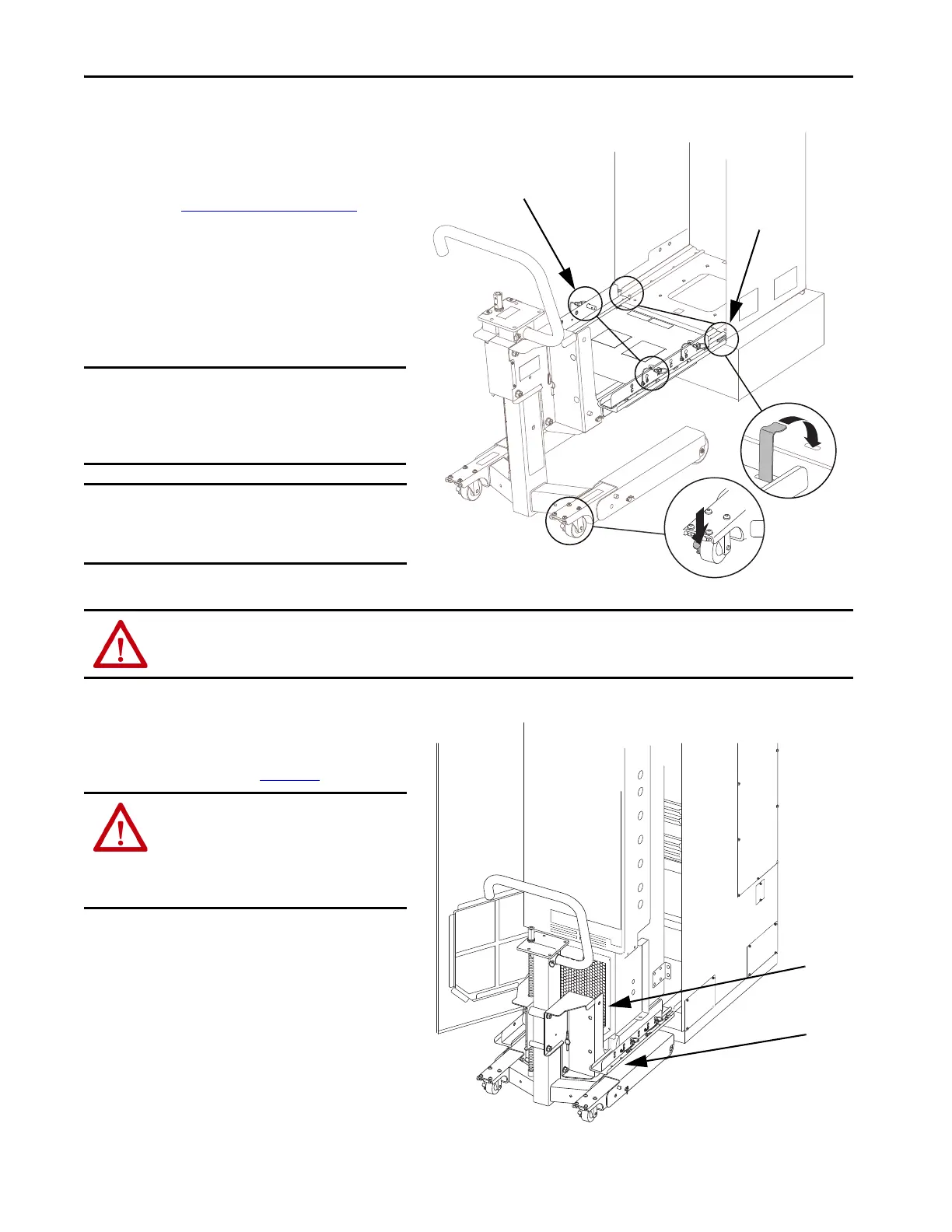

The converted frames 8…10 service cart is designed with two
additional safety features. First there are two safety clips used
during the removal of a power module that anchor the service
cart to the control cabinet. Second, it is equipped with four
anchor pins that secure the power module to the service cart
for transport. The image shows the location of these safety
features.
The addition of the frames 8…10 conversion kit to the
PowerFlex 750-Series Service Cart poses additional pinch
hazards. Be sure to familiarize yourself with the other pinch
hazards listed in the PowerFlex 750-Series Service Cart and
DCPC Module Lift, publication 750-IN105
.
• Pinch Point A: When loading or unloading the
power module, keep this area clear for the power
module. The power module will make direct contact
with the service cart when full extracted.
• Pinch Point B: When lowering the service cart
bridge, keep this area clear. The bridge will make
direct contact with the carriage assembly when the
service cart is lowered.
IMPORTANT The two safety clips must be raised when docking
to the control cabinet. Lower and lock the safety
clips during power module removal. Before
changing the height and before transport begins,
release the safety clips from the control cabinet.
IMPORTANT The four anchor pins must be removed after the
service cart is docked. Insert the anchor pins after
the power module is loaded and before transport
of the power module begins.
ATTENTION: Avoid personal injury and equipment damage. Lock wheel casters before removing a power module.
ATTENTION: Avoid personal injury. Do not remove or
disable the touch guards. Pinch points exist between
the movable parts of the service cart. Review all
product labels and familiarize yourself with the
potential pinch-point hazards before you operate the
service cart.
4 anchor pins:
2 left / 2 right
2 safety clips
(locked):
1 left / 1 right
safety clip
(raised)
