2 Rockwell Automation Publication 750-IN017B-EN-P - June 2018
PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit

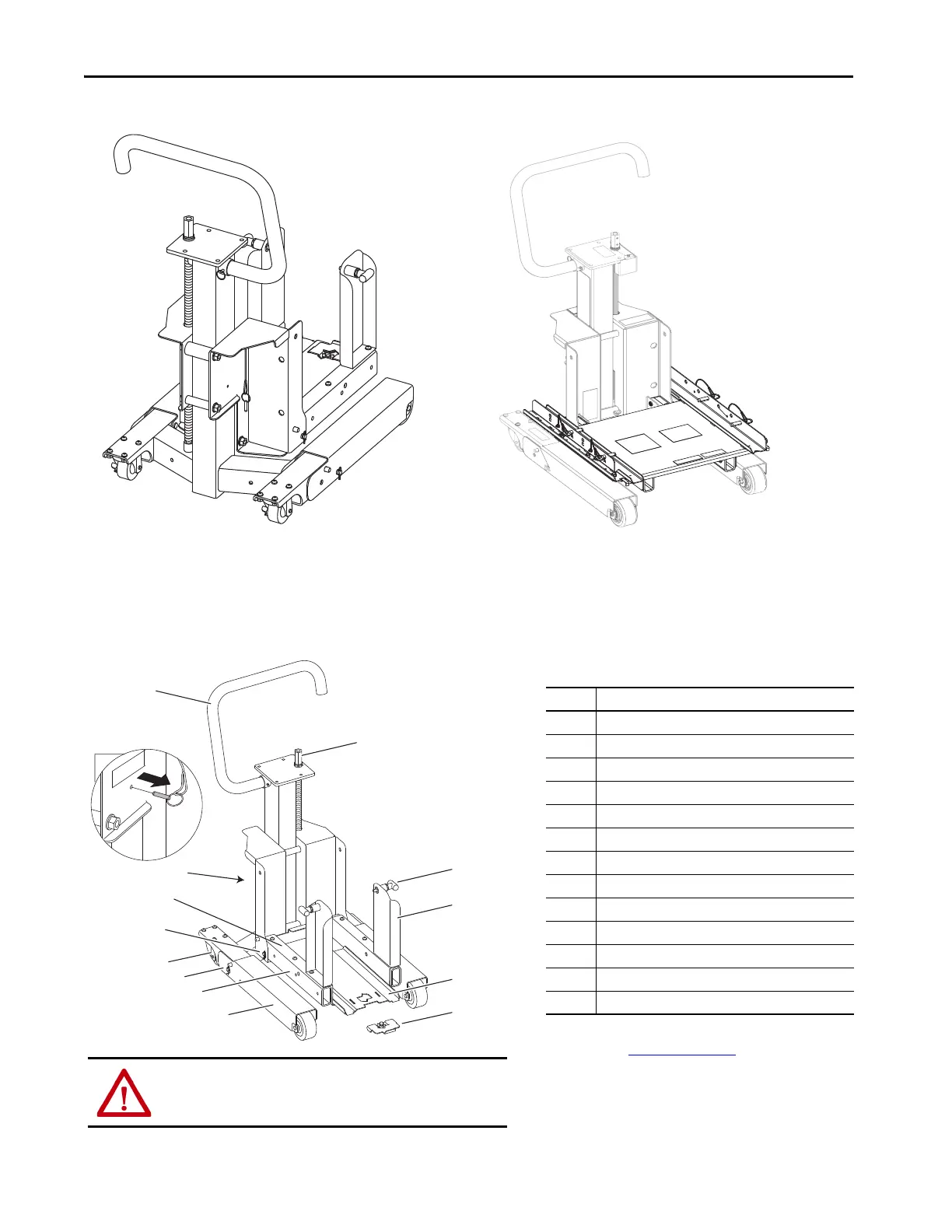

Product Overview
Service Cart Components
Item Description
1Handle
2Jackscrew
(1)
(1) The jackscrew lock (13) must be removed before operating the jackscrew.
3 Anchor pin (one left and one right)
4 Vertical support (one left and one right)
(2)
(2) This item must be removed to use the PowerFlex 750-Series frames 8…10 module
conversion kit. See Setup the Service Cart
on page 5 for additional instructions.
5 Bridge span
(2)
6Tie-in plate
(2)
7 Undercarriage wheel mount (one left and one right)
8 Carriage assembly
9 Wheel mount clevis pins (one left and one right)
10 Lockable wheel caster (one left and one right)
11 Carriage assembly clevis pins
(2)
(one left and one right)
12 Bridge floor
(2)
13 Jackscrew lock
(1)
PowerFlex 750-Series Service Cart staged (sold separately)
Catalog Number 20-750-MCART1
Max Lifting Weight Capacity: 340 kg (750 lb)
Dimensions (HxWxD): 1100 mm x 542 mm x 803 mm
(43.3 in. x 21.3 in. x 31.6 in.)
PowerFlex 750-Series Service Cart shown with Frames 8…10 Conversion Kit
installed
Catalog Number
20-750-MPLT755T
Max Weight Capacity: 363 kg (800 lb)
Max Reach: 130 mm (5.1 in.)
ATTENTION: The PowerFlex 750-Series service cart (20-750-MCART1) weighs
approximately 60 kg (133 lb) and requires two persons to lift.
1
2
3
4
5
6
7
8
9
10
11
12
13
13
