Rockwell Automation Publication 750-IN017B-EN-P - June 2018 9
PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit

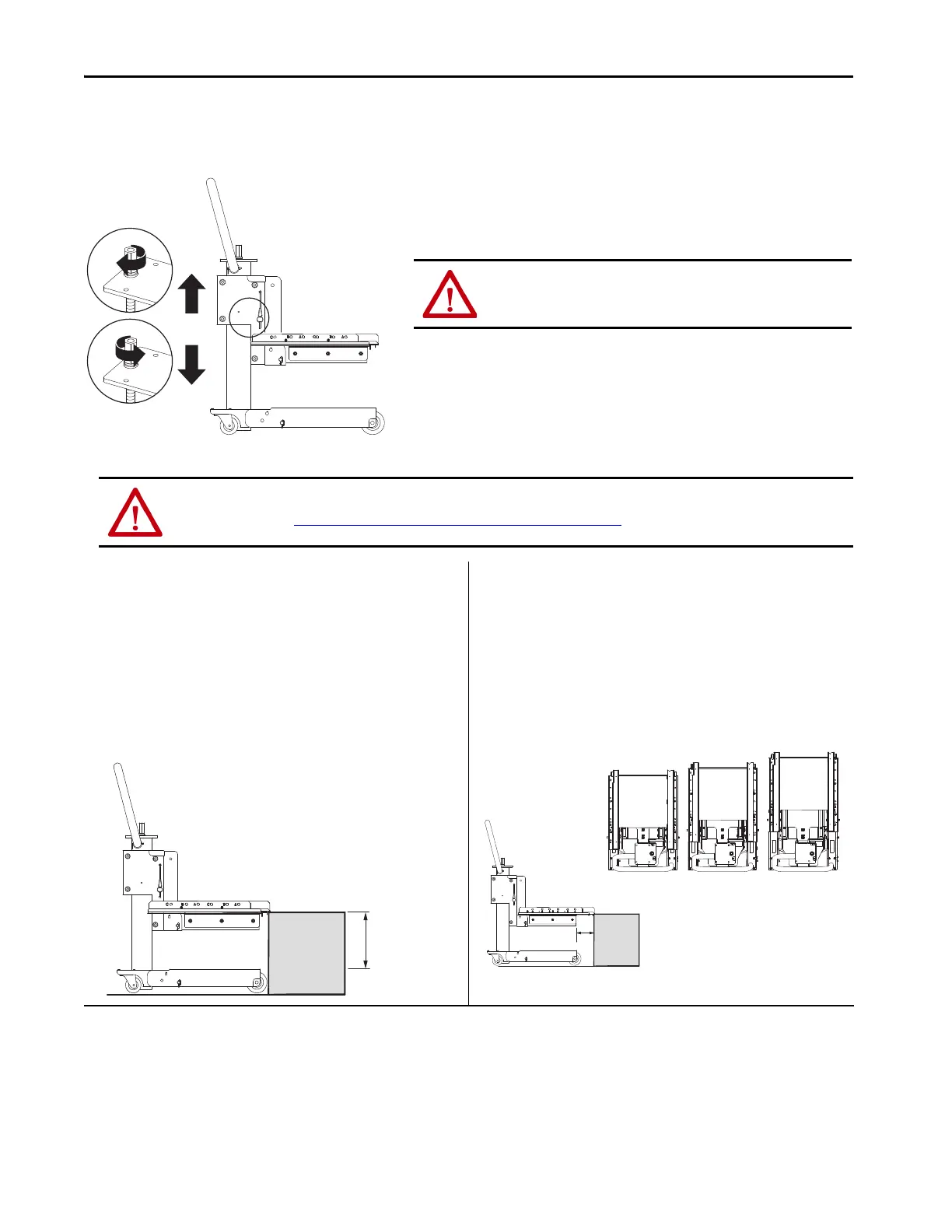

Adjust the Service Cart
The height and reach of the service cart carriage assembly is adjustable.
Height
The jackscrew adjusts the height of the carriage assembly. Clockwise
rotation raises the carriage assembly and counterclockwise rotation
lowers the carriage assembly.
To make height adjustments quickly, use an electric hand drill fitted
with a 25 mm socket. An electric drill with a torque rating of 11.3 N•m
(100 lb•in) or higher is recommended. Height is from 0 mm (0 in.) to
137 mm (10.2 in.), where 0 mm (0 in.) is the lowest possible cart
position.
Reach
The frames 8…10 bridge plate sits on the base extenders. To adjust the
reach of the carriage assembly, remove the M8 nuts and the four
tethered anchor pins. Reposition the frames 8…10 bridge plate into an
available slot (A, B, or C).
The M8 nuts must be reattached and torqued to 10.2 N•m (90 lb•in)
when a position change is performed. After the nuts are torqued, the
four tethered anchor pins must be reinserted into the corresponding
slot (A, B, or C).
ATTENTION: Before adjusting the height of the cart, remove the jackscrew locking
pin. Failure to remove this locking pin will result in equipment damage.
ATTENTION: Avoid equipment damage. The left and right safety clips must be flipped up before the service cart is lowered. Failure to due so will result in
equipment damage. See Service Cart Requirements and Safety for Power Module Removal on page 10 for more information.
0…137 mm
(0…5.4 in.)
Note: Height is from 0 mm (0 in.) to 137 mm (5.4 in.),
where 0 mm (0 in.) is the lowest possible cart position.
0…130 mm
(0…5.1 in.)
C = 130 mm
(5.1 in.)
A = 0 mm
Top Views
B = 57 mm
(2.2 in.)
