PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit
Install the Frames 8…10 Conversion Kit

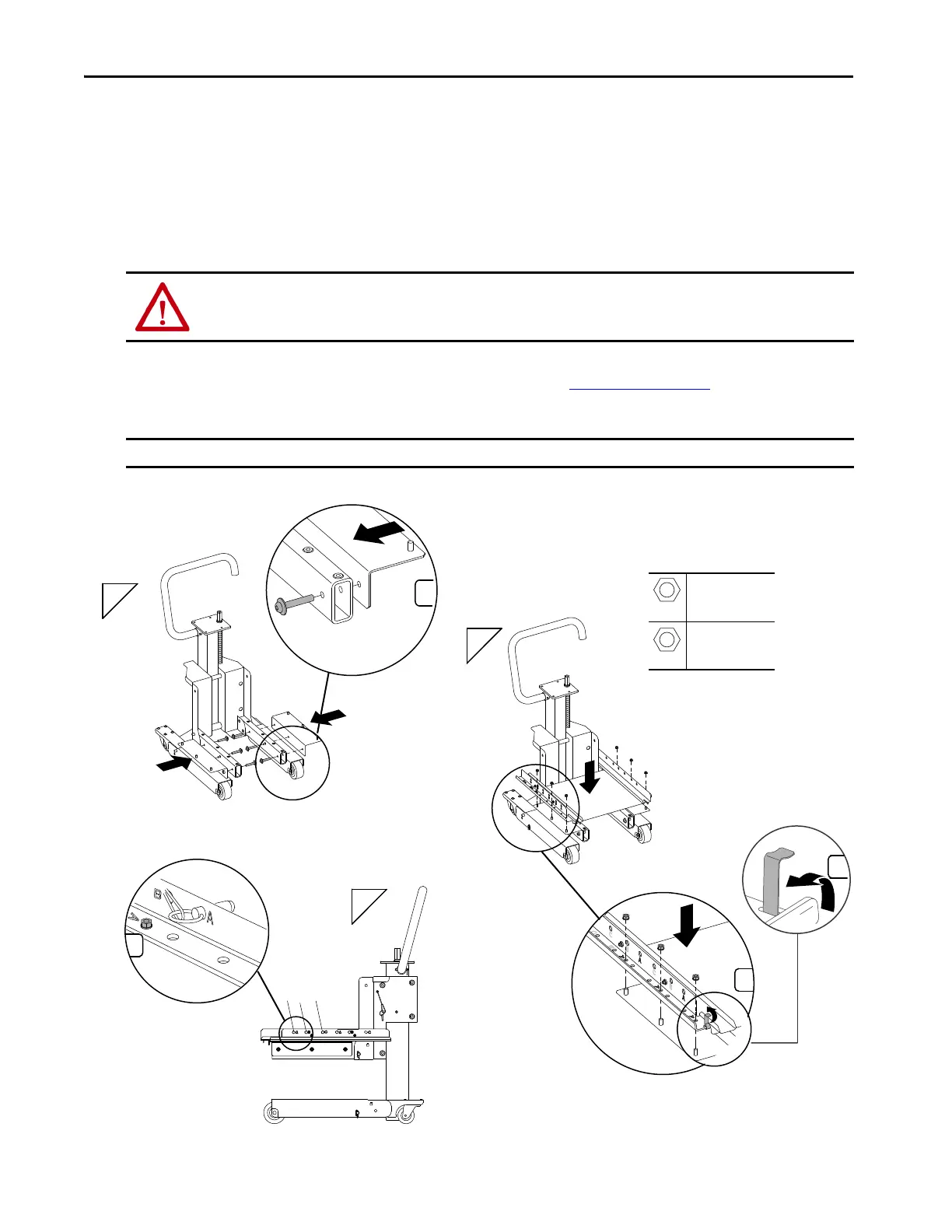

To install the frames 8…10 conversion kit to the service cart, complete these steps.
1. Use the T45 hex bit to attach the six M10 bolts of the left and right side base extenders to the outside of the carriage assembly.
Torque the bolts to 19.8 N•m (175 lb•in).
2. Use the 13 mm socket to attach the six M8 nuts for the frames 8…10 bridge plate to the base extenders.
Torque the nuts to 10.2 N•m (90 lb•in).
3. Insert the four tethered anchor pins. The four pins are inserted in the alpha character, which corresponds to the plate position.
WARNING: If using position A, the two safety clips (one left and one right) need to be flipped up. This allows the bridge plate to
successfully mate with the base extenders.
TIP The bolts on the base extender are used to select positions A, B, or C for the frame 8…10 conversion plate.
For more information on which position is best suited for your application, see Adjust the Service Cart
on page 9.
EXAMPLE The plate being in position A, results in the four anchor pins being inserted into the four position A locations.
M10 nut
T30 / 15 mm
19.8 N•m (175 lb•in)
M8
T25 / 15 mm
10.2 N•m (90 lb•in)
