Rockwell Automation Publication 750-IN017B-EN-P - June 2018 5
PowerFlex 750-Series Service Cart Frames 8…10 Conversion Kit

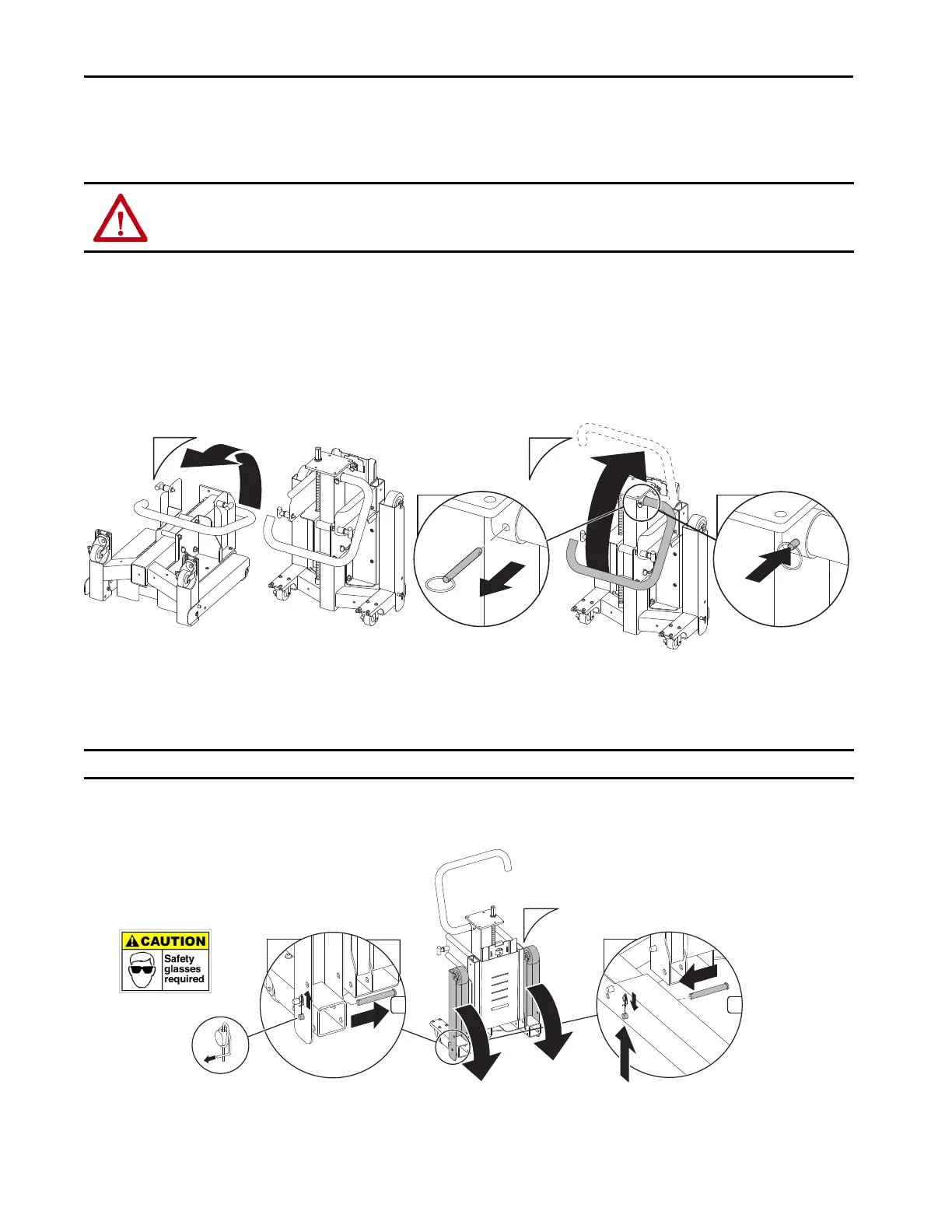

Setup the Service Cart
Extend the Handle
To extend the handle, complete these steps.
1. Position the service cart on the floor as shown for step 1.
2. Rotate the service cart to its upright position.
3. To release the handle, remove the pin.
4. Rotate the handle to its upright position.
5. To lock the handle in the extended position, reinsert the pin.
Extend the Undercarriage
Perform the following steps to extend the undercarriage. Complete the steps for one side and then repeat for the other side.
Complete these steps to extend the undercarriage.
1. Remove the cotter pins from each of the lower wheel mounts on the undercarriage.
2. Remove the wheel mount clevis pins.
3. Lower the undercarriage wheel mount to its horizontal position.
4. Insert the wheel mount clevis pin through the forward holes of the undercarriage wheel mount and secure with the cotter pins.
ATTENTION: Lock all four caster brakes before beginning. Failure to do so could result in personal injury or equipment damage.
IMPORTANT Only cotter pins with clevis pins are removed. If, a cotter pin does not have a clevis pin, do not remove.
4
1
2x
2x
3
2
To align the holes, pull the wheel mount up.
To remove, pull the cotter key toward you and then up.
