Chapter Set-up Procedures: SMP PLUS
Controller without Options
3-4
3
Customer Settings (continued)

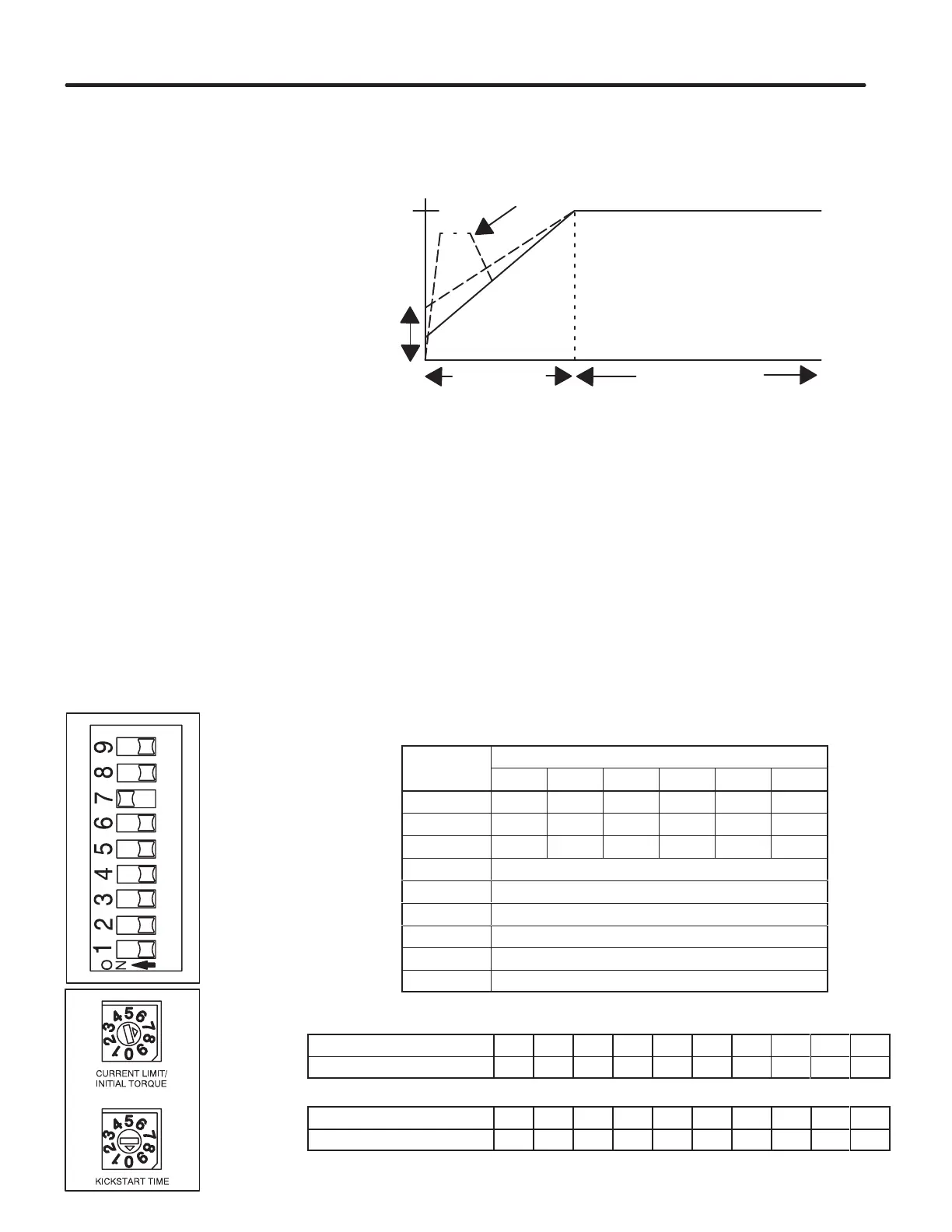

Figure 3.4 - Soft Start with Kickstart
Start
Time (seconds)
Kickstart (when selected)
Percent
Voltage
Initial
Torque
Run
100
1. Starting Time – Set switches 7–9 according to the period desired. For
example, if you want a ramp of 20 seconds, switch 7 would be ON and
switches 8 and 9 would be OFF
2. Kickstart Time – Set Kickstart Time rotary digital switch to the desired value
3. Initial Torque – Set Initial Torque rotary digital switch to the desired value
4. Current Limit/Soft Start – For soft start operation, switch 6 must be OFF
5. Energy Saver Select – Set switch 5 ON if you want the energy saver feature
(or OFF if you do not want this feature active)
6. Auxiliary Contact Select – Set switch 4 OFF if you want “normal” auxiliary
contacts; ON if you want “up-to-speed” auxiliary contacts
7. Stall Select – Set switch 3 ON if you want the stall feature (or OFF if you do
not want this feature active)
NOTE: For resistive load operation, switch 3 and switch 5 must be OFF
Figure 3.5 - Set-up Procedure for Soft Start (without Options)
Switch
TIME (seconds)
Number
2 5 10 20 25 30
9 ON Off ON Off ON Off
8 Off ON ON Off Off ON
7 Off Off Off ON ON ON
6 Off
5 ENERGY SAVER SELECT
4 AUXILIARY CONTACT SELECT
3 STALL SELECT
2 NOT USED
1 NOT USED
Initial Torque
Position 0 1 2 3 4 5 6 7 8 9
% of Licked Rotor Torque 5 10 20 30 40 50 60 70 80 90
Kickstart Time
Position 0 1 2 3 4 5 6 7 8 9
Time (Sec.) Off 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
Soft Start Selection
without Options
EXAMPLE: DIP switch on
left is set for 20 second ramp
To Next Page
