22 Rockwell Automation Publication 6200-IN001A-EN-P - October 2019
VersaView 5000 Thin Clients, Industrial Computers, and Accessories for Hazardous Locations
7. Mount the machine mounting bracket with the appropriate tools and mounting
hardware for the surface material.

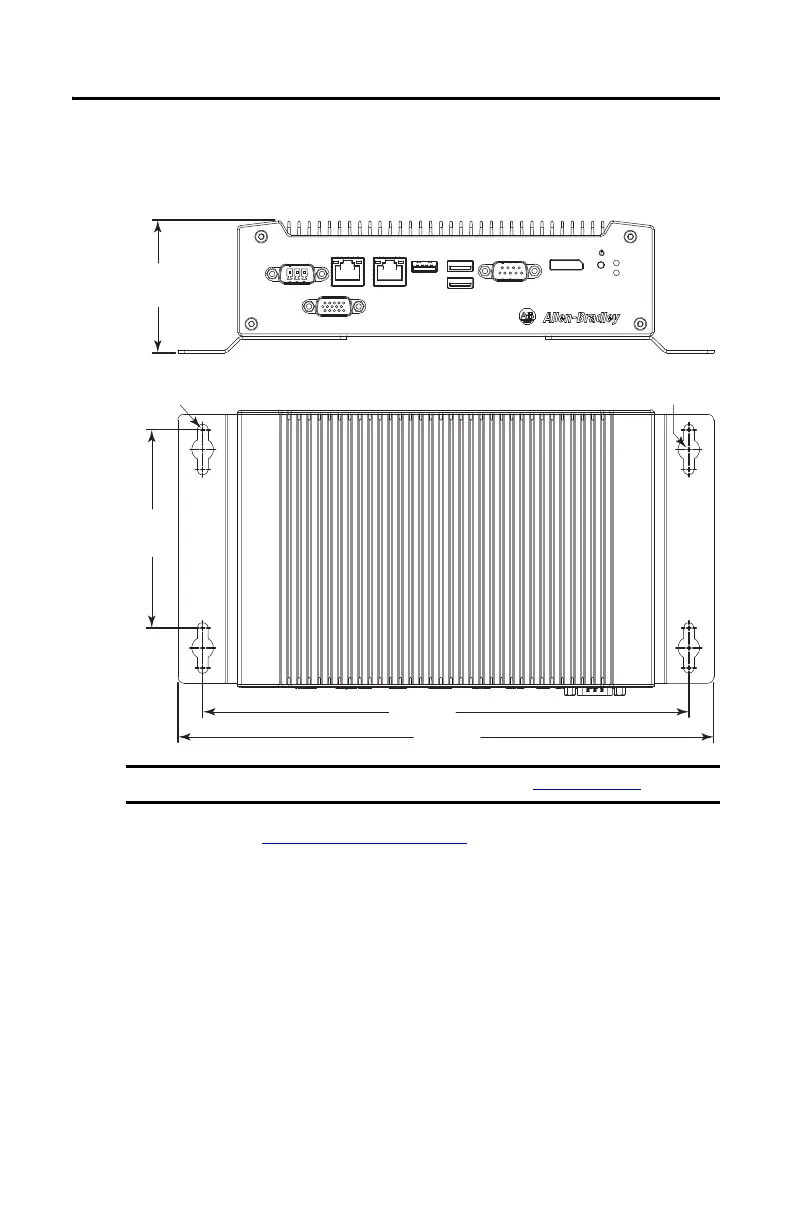

The following dimensions are given in mm (in.).
8. Follow the steps for Post-configuration
on page 15.
IMPORTANT For acceptable machine mounting positions, see Figure 2 on page 11.
8 x Ø5.5
(0.22)
245 (9.65)
270 (10.63)
100
(3.94)
66.5
(2.62)
4 x Ø11
(0.43)
