VersaView 5000 Thin Clients, Industrial Computers, and Accessories for Hazardous Locations
Install the Legacy Mounting Plate (Cat. No. 6200V-BXLGCY)
Install a legacy mounting plate when a VersaView 5000 device for hazardous locations replaces an
Allen-Bradley® 6155R compact non-display computer.
The legacy mounting plate reuses the mounting holes for the 6155R compact non-display
computer, and reuses the mounting hardware.
To install a legacy mounting plate (Cat. No. 6200V-BXLGCY) on a VersaView 5000 device for
hazardous locations, perform the following steps.
1. If not already done, remove the 6155R compact non-display computer by following the
steps for Pre-configuration
on page 15.

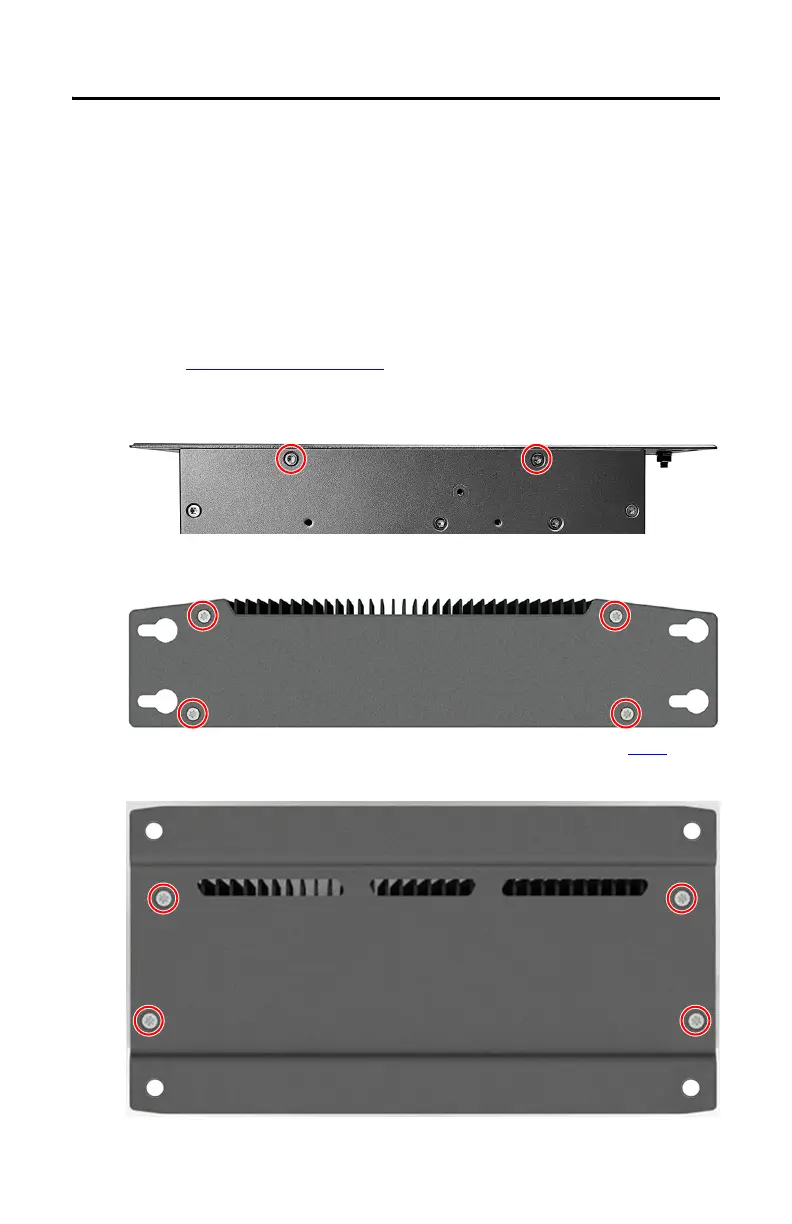

2. With the Torx 10 key or screwdriver, remove these two screws on the bottom of the
VersaView 5000 device.
3. Remove the four screws that secure the factory-installed mounting plate to the back of
the VersaView 5000 device.
4. Install the legacy mounting plate with the four screws that you removed in step 3
.
Tighten the screws to a torque of 0.5 ft•lb (0.7 N•m).
