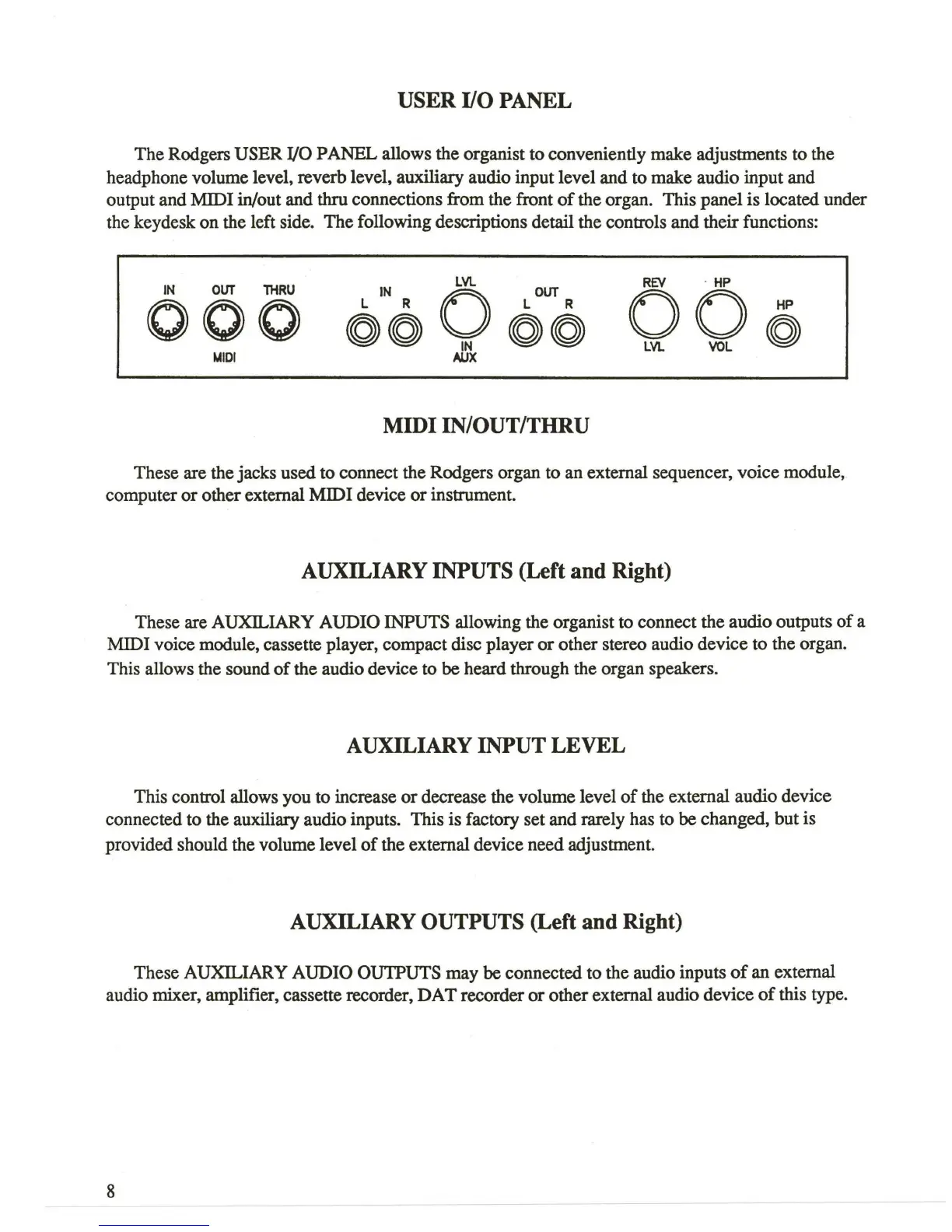

USER
I/0
PANEL
The Rodgers USER
1/0
PANEL allows the organist to conveniently make adjustments to the
headphone volume level, reverb level, auxiliary audio input level and to make audio input and
output and MIDI in/out and
thru connections from the front
of
the organ. This panel is located under
the keydesk on the left side. The following descriptions detail the controls and their functions:
IN
OUT
THRU
000
IN
L R
00
LVI..
066
REV
·
HP
00
LVI..
VOL
HP
0
MIDI
AIJX
MIDI IN/OUT/THRU
These are the jacks used to connect the Rodgers organ to an external sequencer, voice module,
computer
or
other external MIDI device
or
instrument.
AUXILIARY INPUTS (Left
and
Right)
These are AUXILIARY AUDIO INPUTS allowing the organist to connect the audio outputs
of
a
MIDI voice module, cassette player, compact disc player
or
other stereo audio device to the organ.
This allows the sound
of
the audio device to be heard through the organ speakers.
AUXILIARY INPUT LEVEL
This control allows you to increase
or
decrease the volume level
of
the external audio device
connected to the auxiliary audio inputs. This is factory set and rarely has to
be changed, but is
provided should the volume level
of
the external device need adjustment.
AUXILIARY OUTPUTS (Left
and
Right)
These AUXILIARY AUDIO OUTPUTS may be connected to the audio inputs
of
an external
audio mixer, amplifier, cassette recorder,
DAT
recorder
or
other external audio device
of
this type.
8
