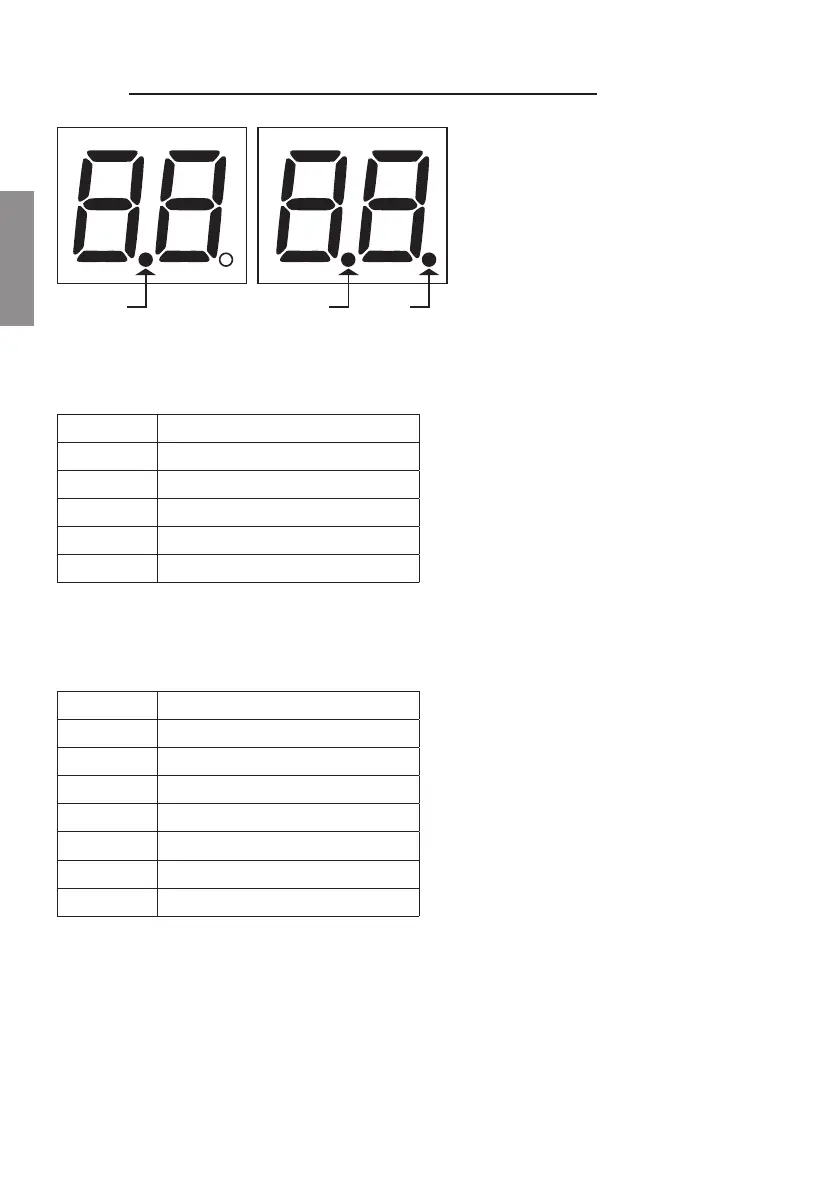

10.2 Command and safety device status display mode
COMMAND STATUS SAFETY DEVICE STATUS
AP PED
ORO
FT1
COS1
COS2
FT2
FA
FC
PP
CH
POWER STOPSB
COMMAND STATUS:
The command status indicators on the display are normally OFF.
They ILLUMINATE when a command is received (e.g.: when a step mode command is received, the segment PP
illuminates).
SEGMENT COMMAND
AP open
PP step-by-step mode
CH close
PED partial opening
ORO clock
SAFETY DEVICE STATUS:
The safety device status indicators ON the display .
If an indicator is OFF, the relative device is in alarm state or is not connected.
9MJFSNSINHFYTWNX+1&8-.3,YMJWJQFYN[JIJ[NHJMFXGJJSINXFGQJI\NYMFXUJHNܪHUFWFRJYJW
SEGMENT SAFETY
FT1 FT1 photocells
FT2 FT2 photocells
COS1 COS1 sensing edge
COS2 COS2 sensing edge
FA gate open limit switch
FC gate closed limit switch
SB release handle open
