EN
64

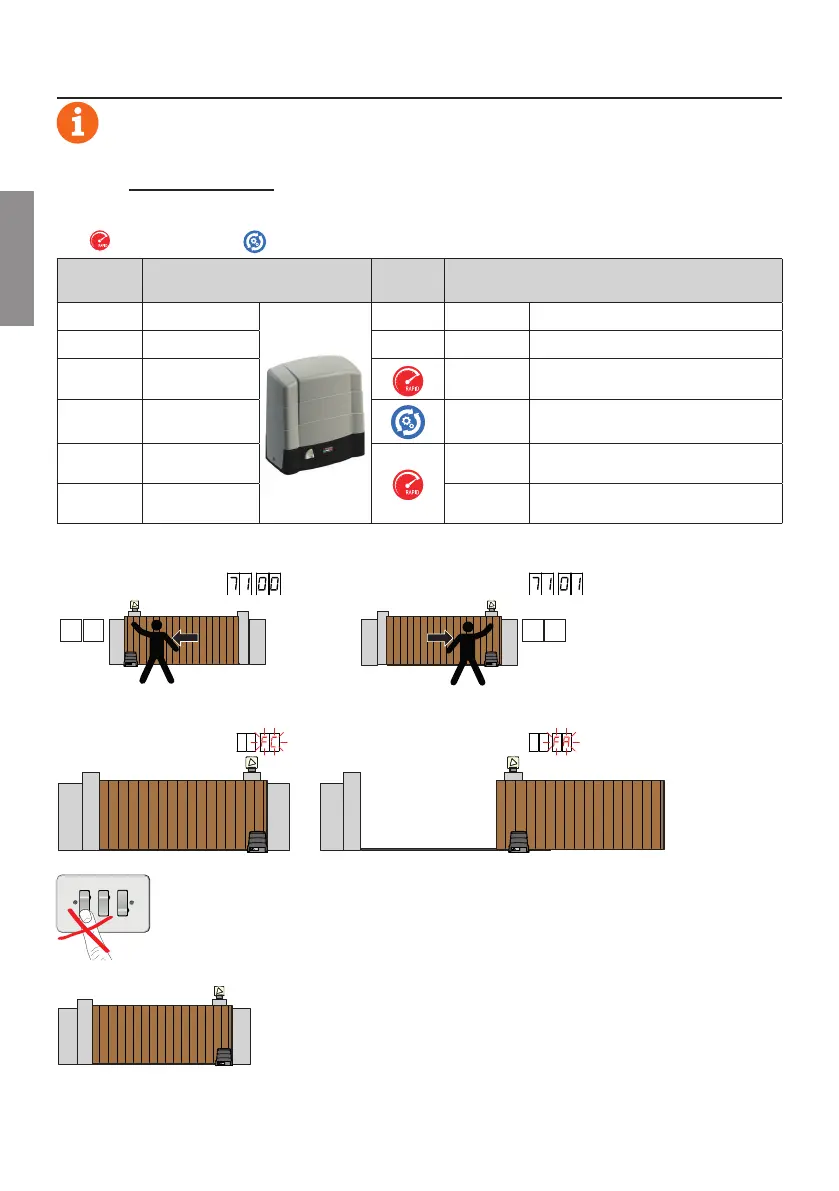

11 Travel acquisition
For the system to function correctly, the gate travel must be acquired by the control.
11.1 Before starting
1. Select the automation system model installed with the parameter $.
KEY: HIGH SPEED Motor REVERSIBLE Motor
SELECTION MODEL
MOTOR
TYPE
CONFIGURATIONS
D
BG30/1600 -
up to 1600 kg
D
BG30/2200 -
up to 2200 kg
D
BG30/1000/HS
up to 1000 kg
see chapter 14 "Special Parameters for High
Speed Motor"
D
BG30/1400/R
up to 1400 kg
see chapter 15 "Special Parameters for
Reversible Motor"
D
BG30/1800/HS
up to 1800 kg
see chapter 14 "Special Parameters for High
Speed Motor"
D
BG30/1500/HS
up to 1500 kg
see chapter 14 "Special Parameters for
Reversible Motor"
2. Select the position of the motor relative to the gate with the parameter . The default setting for this parameter is
with the motor installed on the right hand side of the gate (seen from interior side).
OPENING ON THE LEFT OPENING ON THE RIGHT
3. Adjust the (mechanical or magnetic) limit switches so that, once triggered, the gate stops slightly before it reaches
the mechanical stop.
CLOSING LIMIT SWITCH
OPENING LIMIT SWITCH
4. Check that the operator present function is not enabled ($ ).
OPEN CLOSESTOP
5. Move the gate into the closed position.
6. Press TEST (see TEST mode in chapter 10) and check the command signal and safety device states. If any safety
devices are not installed, jumper the relative contact or disable the device from the relative parameter (, , ,
, and ).
