ROJ SUPER ELF X3 - Insertion Length; Reserve Sensor

SUPER ELF X3
–
Dornier
10

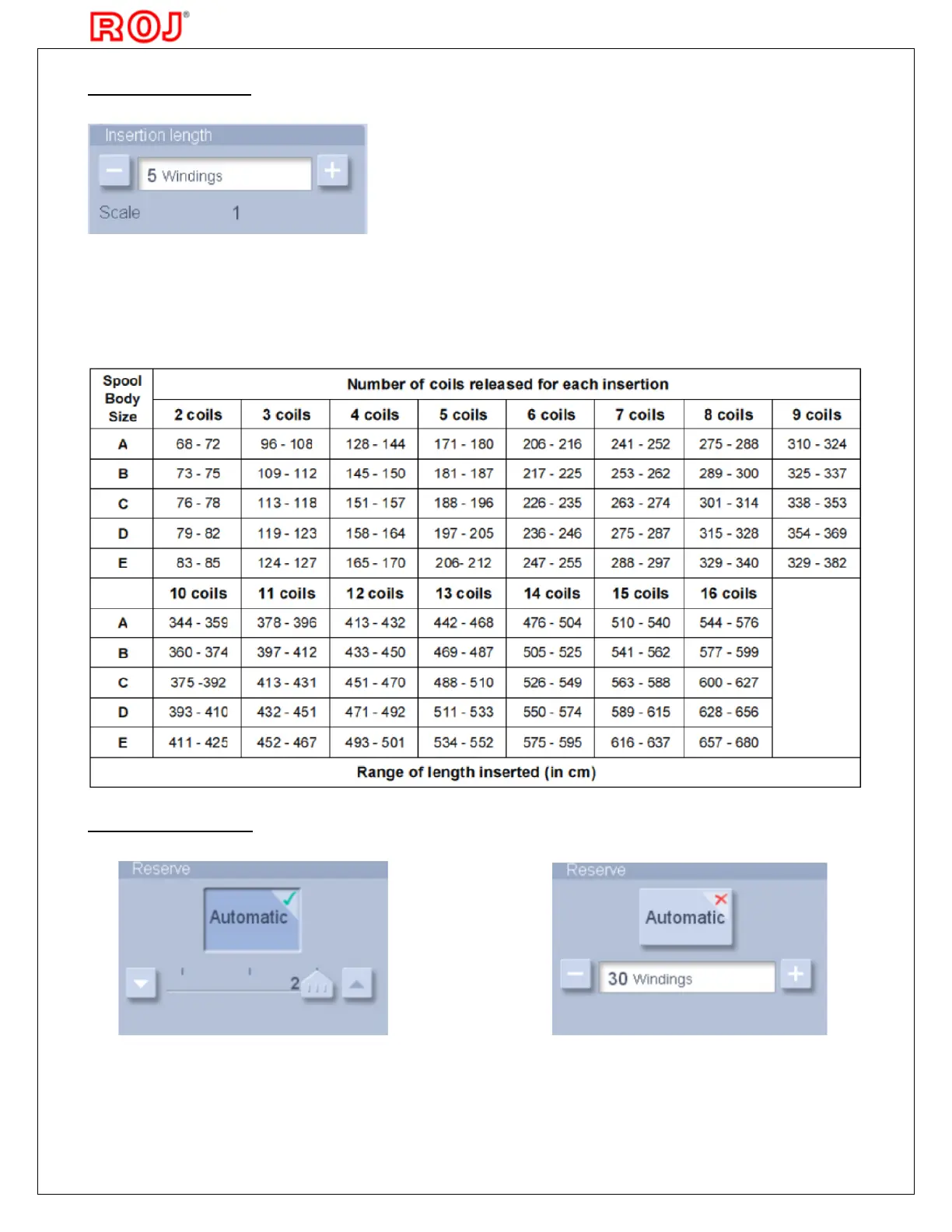

Insertion
length
Note:
the
setting “Insertion Length” is dependent
on
the “Reed width” parameter which is
under the “Weft
Insertion” menu.
It is recommended to make the Feeder operating with the
Drum set to the
wider diameter and releasing the minimum number of coils possible (see
table
below
for reference).
Reserve Sensor
Automatic = ON
Automatic = OFF
When this is set to Automatic = ON, the Reserve Sensor automatically regulates the
take
-
off point at a fixed position.
• Possible setting:
Off, 0, 1, 2
To set the number of coils (windings) to be released by the
Feeder at each pick.
• Possible setting:
2
-
> 16.
• Recommended setting: see note
