ROJ SUPER ELF X3 - Setting and Control Elements; Front Control Elements

SUPER ELF X3
–
Dornier
5
2.
SETTING AND
CONTROL ELEMENTS

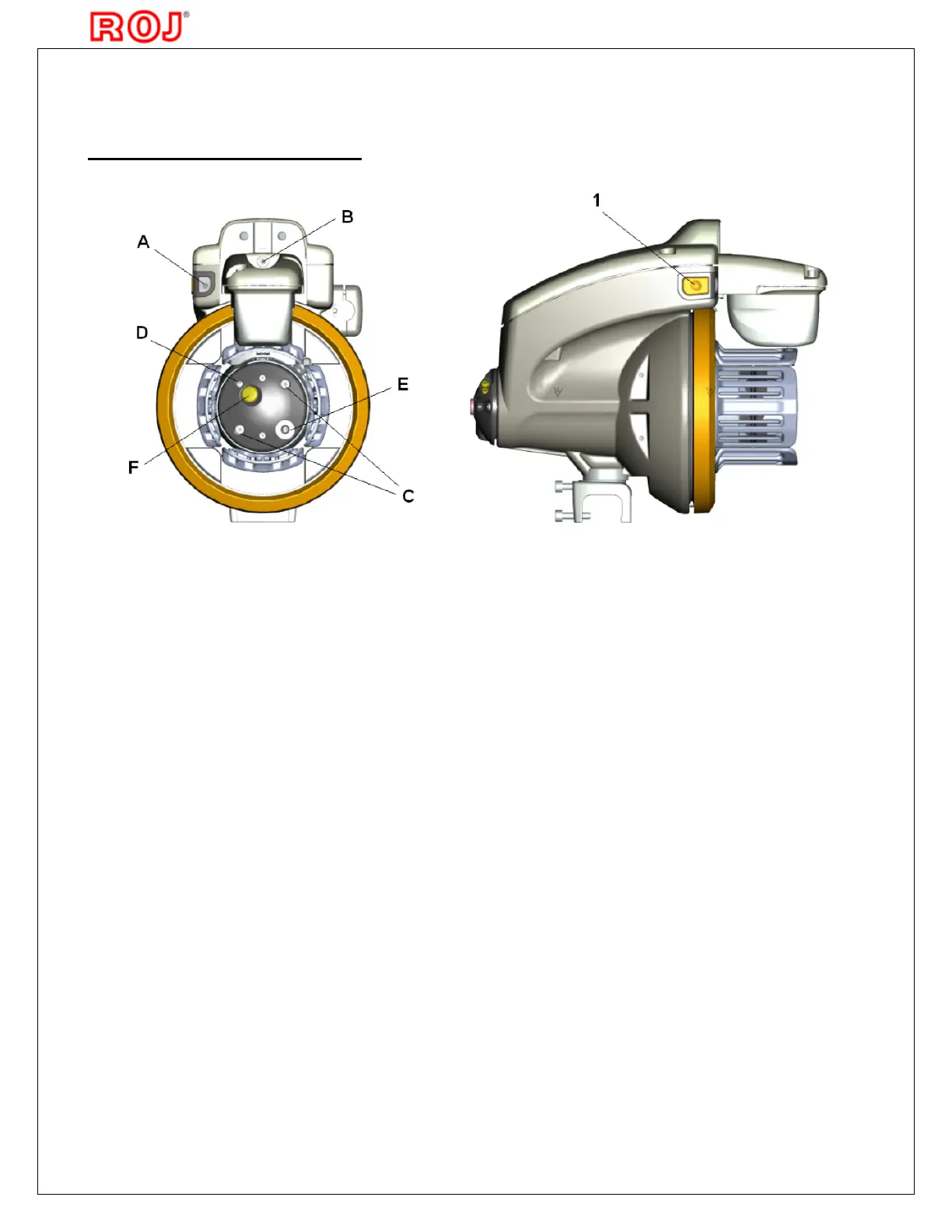

Front Control elements
1
FUNCTION BUTTON
It activates the Electromagnet and allows the following operations:
a
-
Weft reserve removal.
b
-
New weft reserve loading.
c
-
Release of only one coil when the weft reserve is already on the
Spool Body.
d
-
Photocells calibration
e
-
Reset of the fatal errors without switching OFF the main power.
A
SIGNALING LED
When the weft feeder is powered, the led turns on if no faults are detected.
In case of
problems, the led blinks. Slow blinking in
case of warnings, fast
blinking in case of fatal errors.
B
ADJUSTMENT SCREWS FOR THE ELECTROMAGNET
POSITION
C, D, E
ADJ
USTMENTS SCREWS OF SPOOL BO
DY DIAMETER
(Coil length)
F
PUSH BUTTON FOR SETTING OF WINDING DISC ROTATION
DIRECTION AND COILS
SEPARATION
