Roland Alpha Juno-2 - CHECKING AND ADJUSTMENT; BASIC SYSTEM CHECKS

12
€XT CONTROL OUT PUT
MEMORY
PROTECT
Past
ne
ere
readers
exe
ON OFF ON PEDAL
il
PEDAL PHONES STEREO —y
MORD

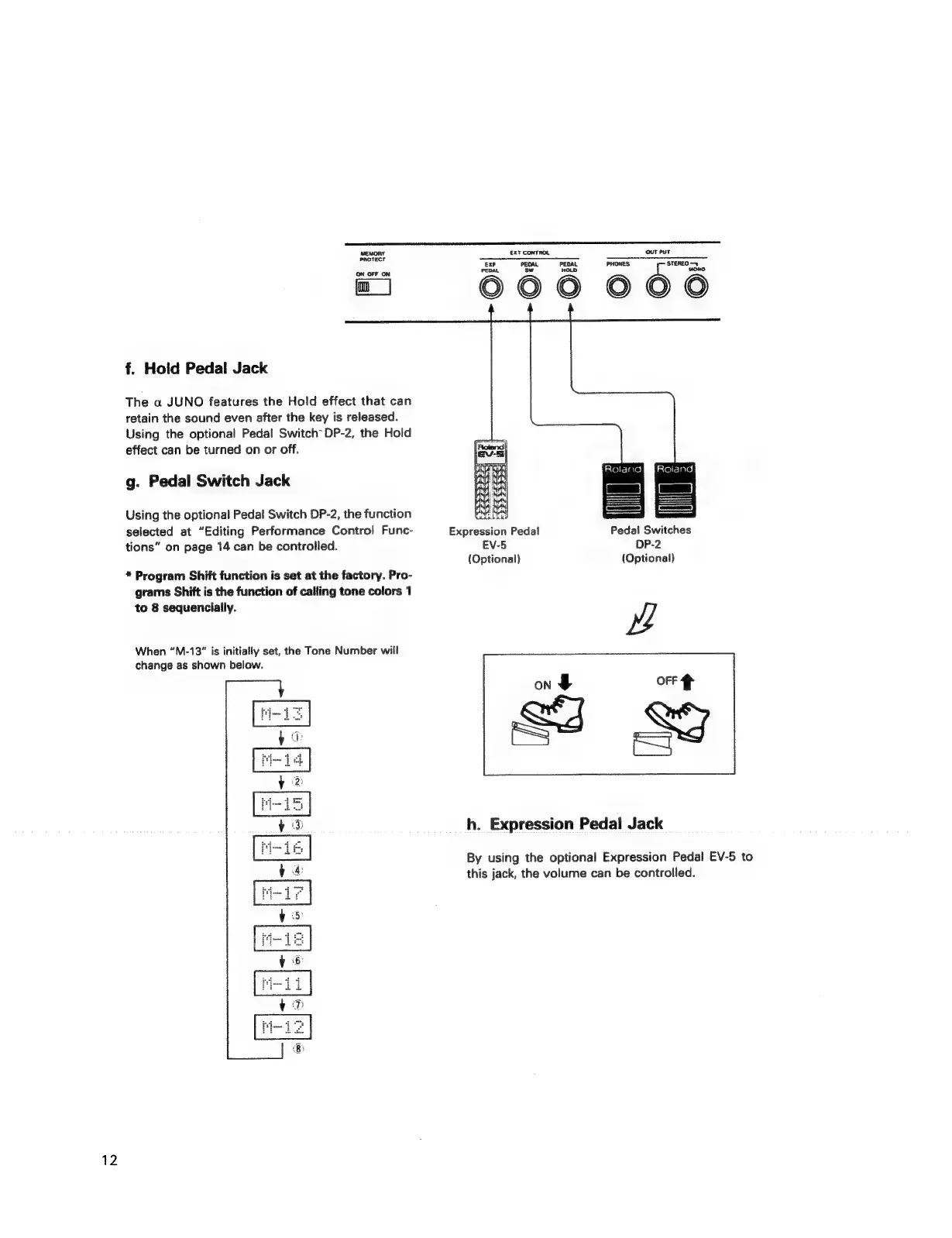

f. Hold Pedal Jack
The ao JUNO features the Hold effect that can
retain the sound even after the key is released.
Using the optional Pedal Switch” DP-2, the Hold
effect can be turned on or off.
g. Pedal Switch Jack
Using the optional Pedal Switch DP-2, the function
selected
at
“Editing
Performance
Control
Func-
Expression
Pedal
Pedai
Switches
tions”
on
page
14
can
be
controlled.
EV-5
DP-2
(Optional)
(Optional)
* Program Shift function is set at the factory. Pro-
grams Shift is the function of calling tone colors 1
to 8 sequencially.
When “M-13” is initially set, the Tone Number will
change as shown below.
h. Expression Pedal Jack
By using the optional Expression Pedal EV-5 to
this jack, the volume can be controlled.
