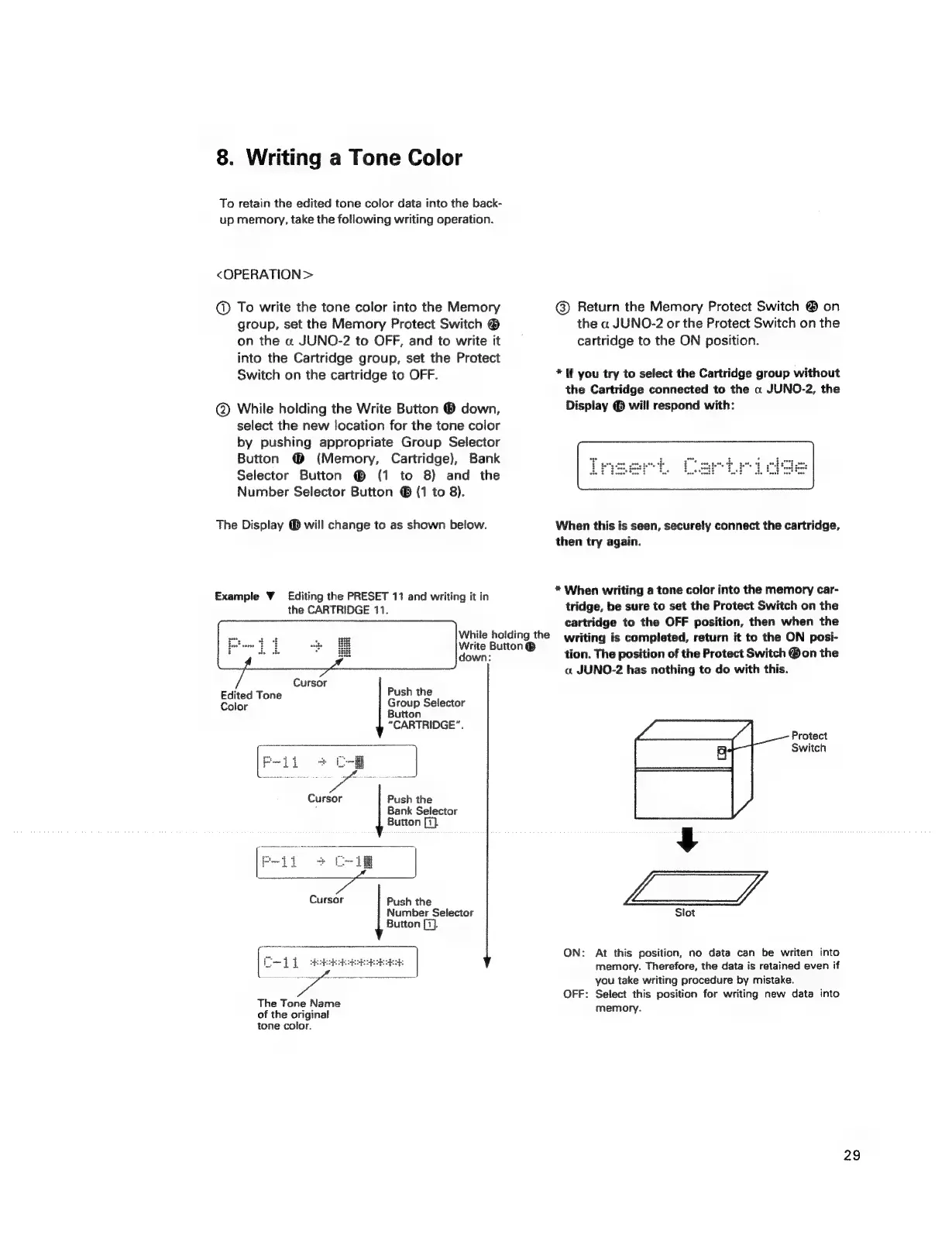

8. Writing a Tone Color
To retain the edited tone color data into the back-
up memory, take the following writing operation.
<OPERATION>
@ To write the tone color into the Memory
group, set the Memory Protect Switch @
on the a JUNO-2 to OFF, and to write it
into the Cartridge group, set the Protect
Switch on the cartridge to OFF.
@ While holding the Write Button @ down,
select the new location for the tone color
by pushing appropriate Group Selector
Button @ (Memory, Cartridge), Bank
Selector Button @ (1 to 8) and the
Number Selector Button ® (1 to 8).
The Display @ will change to as shown below.
Example W Editing the PRESET 11 and writing it in
the CARTRIDGE 11.
down:
Push the
Color Group Selector
Button
“CARTRIDGE”.
|
Push the
Bank Selector
Button [1].
P13 > C~18 |
Push the
Number Selector
Button [i].
The Tone Name
of the original
tone color.
@® Return the Memory Protect Switch @ on
the a JUNO-2 or the Protect Switch on the
cartridge to the ON position.
* If you try to select the Cartridge group without
the Cartridge connected to the a JUNO-2, the
Display @ will respond with:
When this is seen, securely connect the cartridge,
then try again.
* When writing a tone color into the memory car-
tridge, be sure to set the Protect Switch on the
cartridge to the OFF position, then when the
While holding the iting i i i-
Write Button ® writing is completed, return it to the ON posi:
tion. The position of the Protect Switch ®on the
a JUNO-2 has nothing to do with this.
EE
Protect
Switch
S
Slot
ON: At this position, no data can be writen into
memory. Therefore, the data is retained even if
you take writing procedure by mistake.
OFF: Select this position for writing new data into
memory.
29
