Roland E-09 Service Notes

12
JAN.2006

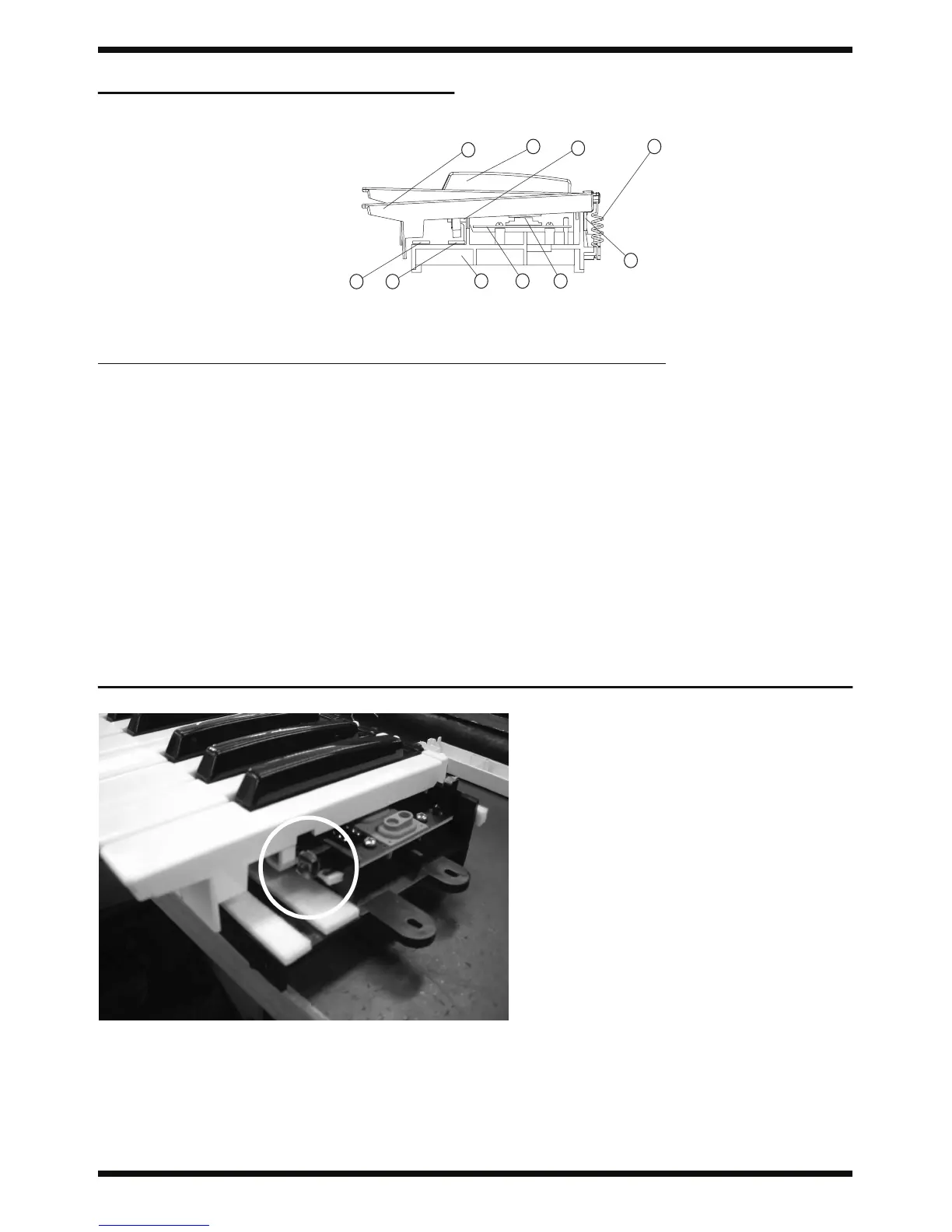

KEYBOARD PARTS LIST
fig.keyfig.ke
GREASING SPREADING POSITION
fig.grissfig.griss
Grease spreading in the marking section of figure.
10
2
6 7 8
4
e
5
1
3
9
A detailed KEYBO
ARD ASSY
No PART CODE CATEGORY PART NAME DESCRIPTION
1 03786378 KEYMOLD ASSY NATURAL KEY C FOR MSK-2
1 03786389 KEYMOLD ASSY NATURAL KEY D FOR MSK-2
1 03786390 KEYMOLD ASSY NATURAL KEY E FOR MSK-2
1 03786401 KEYMOLD ASSY NATURAL KEY F FOR MSK-2
1 03786412 KEYMOLD ASSY NATURAL KEY G FOR MSK-2
1 03786423 KEYMOLD ASSY NATURAL KEY A FOR MSK-2
1 03786434 KEYMOLD ASSY NATURAL KEY B FOR MSK-2
1 03786445 KEYMOLD ASSY NATURAL KEY C’ FOR MSK-2
2 03786456 KEYMOLD ASSY SHARP KEY FOR MSK-2
3 03786312 KEYMOLD ASSY KEY FELT MSK-2 HOOK T2.0MM L828XW5.5
4 03456967 KEYMOLD ASSY COILED SPRING MSK-1 NATURAL KEY
4 03456978 KEYMOLD ASSY COILED SPRING MSK-1 SHARP KEY
5 03786301 KEYMOLD ASSY KEY FELT MSK-2 BACK T4.0MM L840XW6.0
6 03456856 KEYMOLD ASSY RUBBER SW KEYBOARD 12P FOR MSK-1
6 03456867 KEYMOLD ASSY RUBBER SW KEYBOARD 13P FOR MSK-1
7 03786345 KEYMOLD ASSY PWB KEYBOARD LO ASSY FOR MSK-2
7 03786356 KEYMOLD ASSY PWB KEYBOARD HI ASSY FOR MSK-2
8 03786367 KEYMOLD ASSY CHASSIS KEYBOARD FOR MSK-2
9 03786334 KEYMOLD ASSY KEY FELT MSK-2 BOTTOM M T2.0MM L840XW10
10 03786323 KEYMOLD ASSY KEY FELT MSK-2 BOTTOM L T2.0MM L840XW15

Roland E-09 Specifications

General

Polyphony	64 voices
Display	Custom LCD
Weight	5.5 kg
Power Supply	AC adaptor
Effects	Reverb, Chorus
MIDI	In, Out
Connectors	Output (L/Mono, R), Headphones, MIDI (In, Out), Pedal
Keyboard	61 keys (with velocity)
