Roland E-09 Service Notes

5
JAN.2006 E-09
4

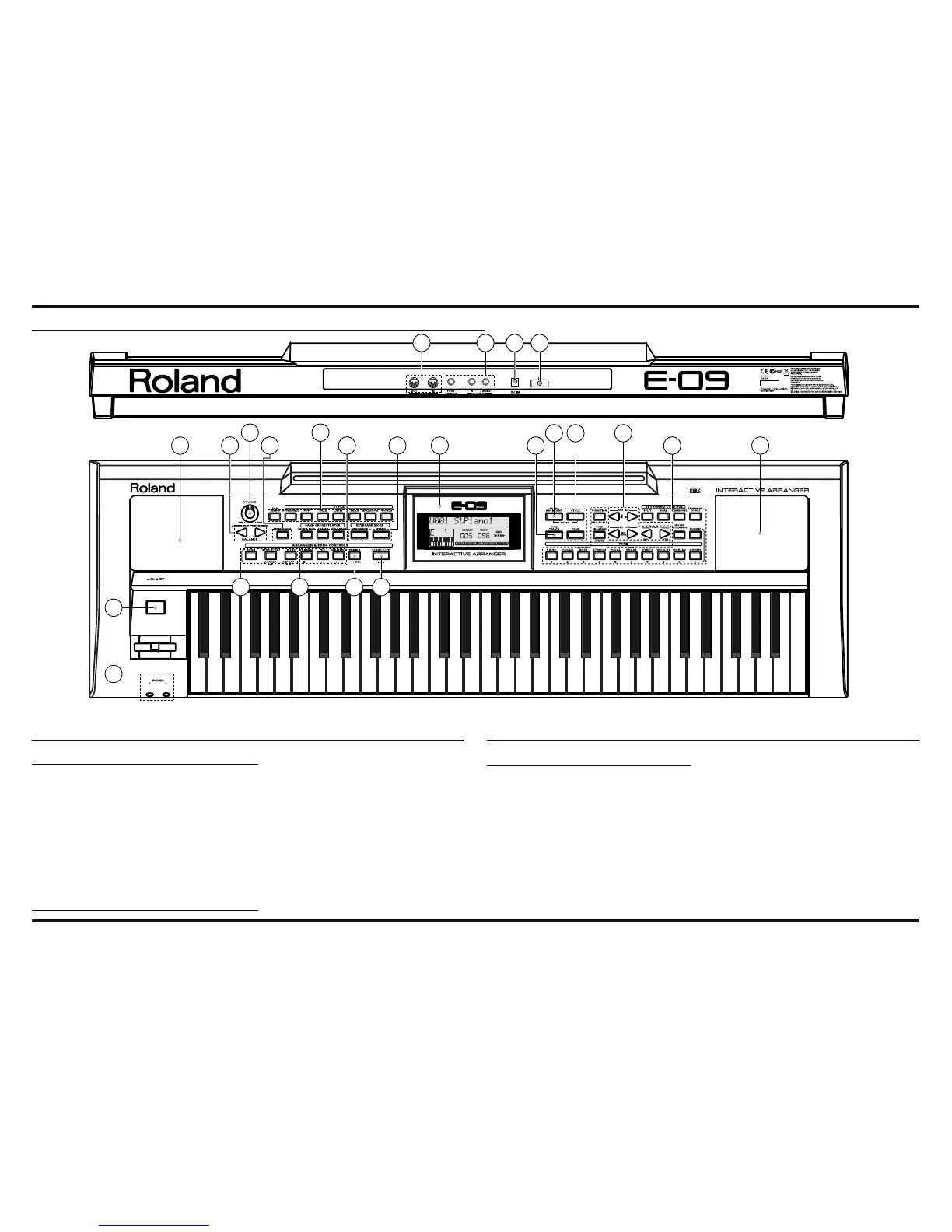

LOCATION OF CONTROLS
LOCATION OF CONTROLS PARTS LIST LOCATION OF CONTROLS PARTS LIST
6
8725
12
9
8 6 3
5
11
2
10
14
13
3
1
4 5
18
17
15
16
No PART CODE PART NAME DESCRIPTION Q’TY
1 04018534 R-KNOB LF BLK 1
2 04017978 S-KEYTOP SX GRS 11
3 04018012 T-KEYTOP MX GRS 4
4 04017989 S-KEYTOP SX CLR 1
02454278 LED SLR-322MC-T32 1
5 04017989 S-KEYTOP SX CLR 24
01340323 LED SLR-332DC(ORANGE) 24
6 04018001 S-KEYTOP LX CLR 4
01340323 LED SLR-332DC(ORANGE) 4
7 04017989 S-KEYTOP SX CLR 1
01904112 LED(RED) SLR-342VCT32 N.P.Q RANK 1
8 04018001 S-KEYTOP LX CLR 2
02454278 LED SLR-322MC-T32 2
9 04017990 S-KEYTOP LX GRS 1
No PART CODE PART NAME DESCRIPTION Q’TY
10 04018789 SPEAKER COVER L 1
04128290 GRILL CLOTH INNER 1
11 04018790 SPEAKER COVER R 1
04128290 GRILL CLOTH INNER 1
12 04018823 DISPLAY COVER 1
03902867 LCD UNIT UCZ24080 1
13 04018545 KEYTOP(ON/OFF) S-BUTTON LX BLK 1
03454690 PUSH SWITCH SDKLA10900 1
14 13449169 6.5MM JACK YKB21-5078 2
15 02568867 MIDI JACK 1
16 00569278 6.5MM JACK LGR4609-7100F 3
17 13449720 DC JACK HEC2305-01-250 1
18 22365714 CORD HOOK 1

Roland E-09 Specifications

General

Polyphony	64 voices
Display	Custom LCD
Weight	5.5 kg
Power Supply	AC adaptor
Effects	Reverb, Chorus
MIDI	In, Out
Connectors	Output (L/Mono, R), Headphones, MIDI (In, Out), Pedal
Keyboard	61 keys (with velocity)
