Roland E-09 Service Notes

13
E-09
Disassembly Procedure
(How to Remove the Main Board)
1.
Remove the all bottom screws.

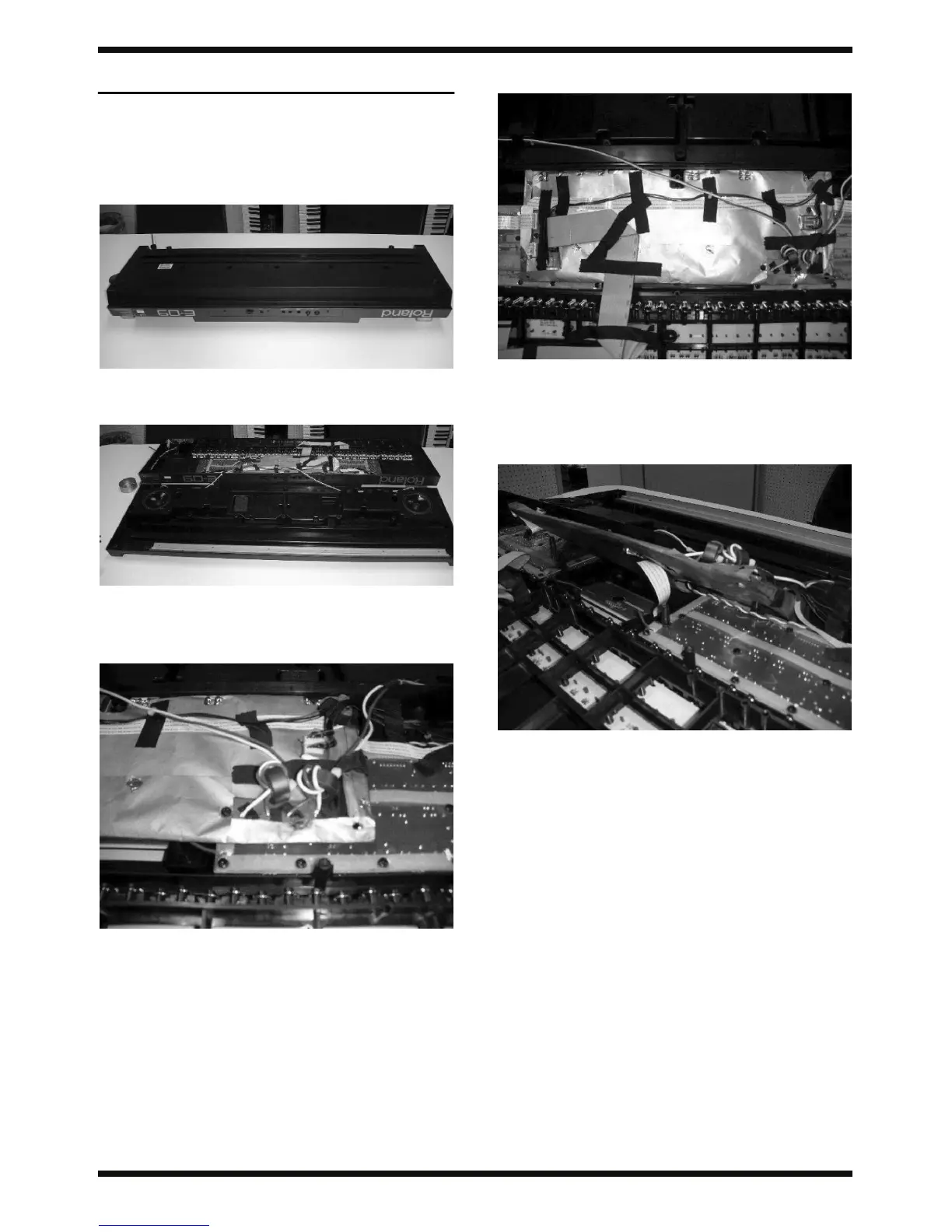

fig.E09-01
2.
Detach the bottom carefully (Lift the keyboard side of bottom and open
it so that the rear panel side should be a fulcrum, because the speaker
cable is connected).
fig.E09-02
3.
Detach the speaker cable wound with a ferrite core that is soldered to the
mainboard. (The bottom can be separated.)
(If the component is attached by a connector instead of being soldered, detach
the connector.)
fig.E09-03
4.
Detach the wiring connected to the mainboard.
fig.E09-04
5.
Remove the 4 screws securing the mainboard.
6.
Carefully remove the mainboard.
* Wiring is also connected to the opposite side (the component-mounted surface of
the circuit board). Watch carefully while removing to ensure that no wiring is
severed or disconnected.
fig.e09-05

Roland E-09 Specifications

General

Polyphony	64 voices
Display	Custom LCD
Weight	5.5 kg
Power Supply	AC adaptor
Effects	Reverb, Chorus
MIDI	In, Out
Connectors	Output (L/Mono, R), Headphones, MIDI (In, Out), Pedal
Keyboard	61 keys (with velocity)
