Roland GP-10 - Exploded View Figure B Details; Parts for Exploded View Figure B

12
Jun. 2014 GP-10

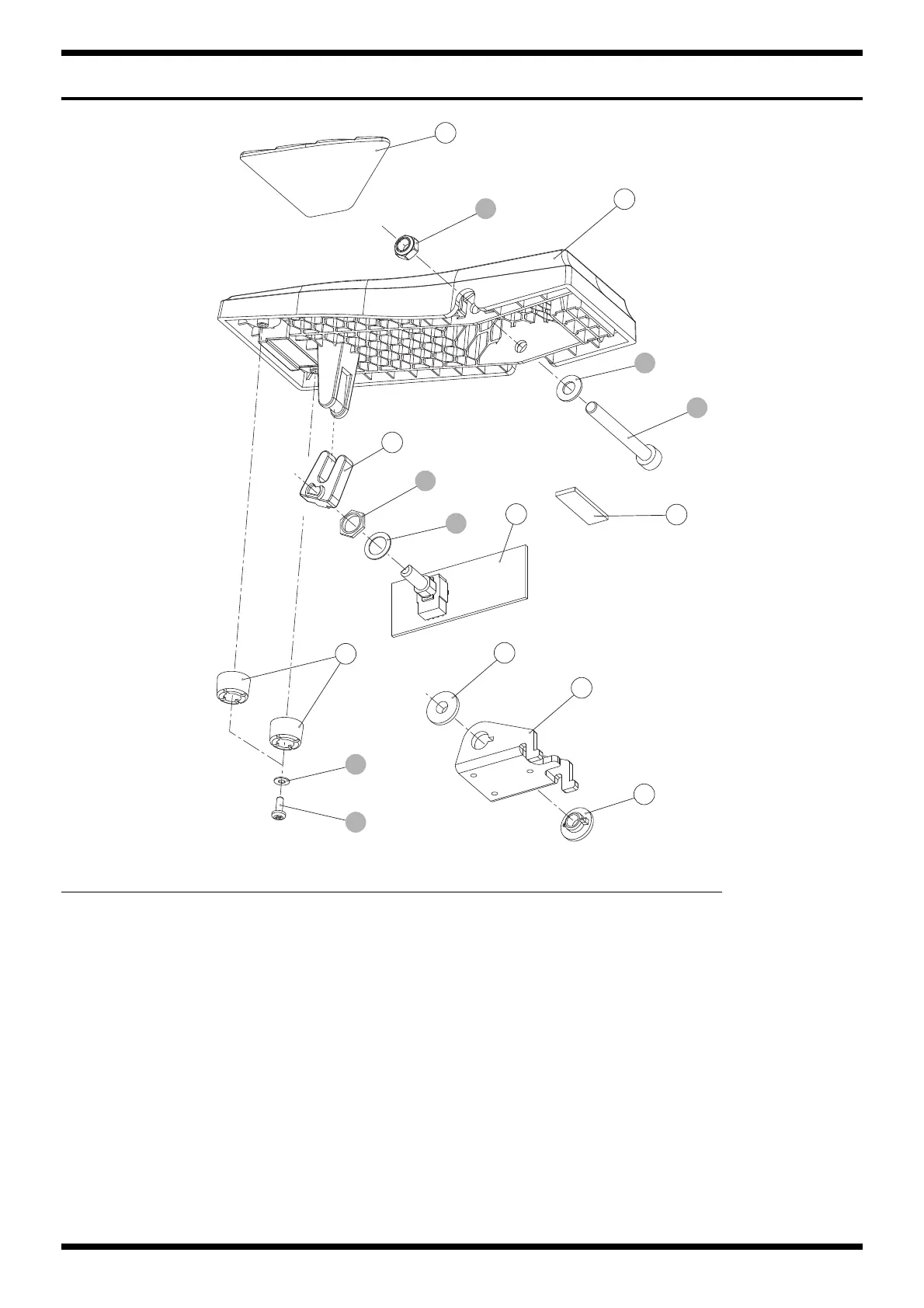

Exploded View (Fig. B)
fig.bunkaizu-B.eps
B1
B2
B5
B3
B4
B7
B8
B6
B7
b
c
m
n
j
i
k
No. Part Code Part Name Description Q’ty
B1 5100011395 PEDAL PLATE 1
B2 5100011392 VR PEDAL 1
B3 03561356 SHAFT STAY STAY 1
5100037249 PANEL SHEET ASSY 1
* This unit includes the following parts.
B4 ******** EXP BOARD 1
******** PANEL BOARD Refer to Exploded View (p. 6). 1
******** GK BOARD Refer to Exploded View (p. 6). 1
******** ENC BOARD Refer to Exploded View (p. 6). 1
B5 04560601 CUSHION R (G2357111) 1
B6 5100012831 REAR CUSHION 2
B7 04560634 BOLT HOLDER (G2147874) 2
B8 5100011394 PEDAL HOLDER 1
b 5100003918 JACK NUT M9X12X2 NI RTC(H5039510R0) 1
c 5100003926 PLAIN WASHER 9X13.5X0.5T NI(H5039158R0) 1
i 04560590 U-NUT M6 BZC 1
j 04560589 WASHER M6 T1 (H5039122) 1
k 5100012929 HEX BOLT M6X50 HALF THREAD BZC 1
m 40127023 PLAIN WASHER 3X8X0.5 ZC 2
n 40011278 SCREW 3X8 BINDING TAPTITE P FE ZC 2
