Roland GP-10 - GP-10 Plane Views (1 & 2); Plane View 1 Component List; Plane View 2 Component List

8
Jun. 2014 GP-10

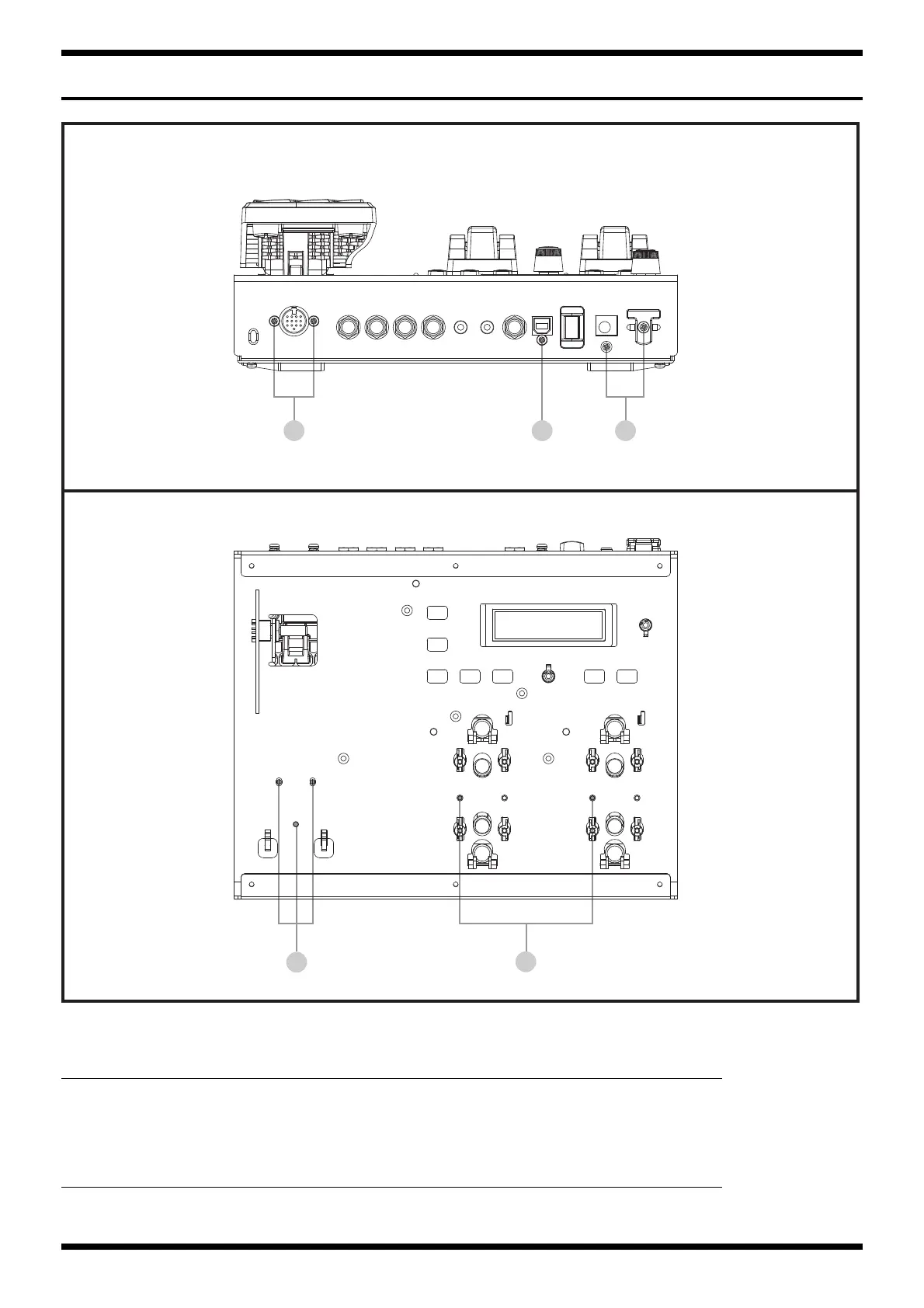

Plane View (View 1, 2)
fig.bunkaizu-view-12.eps
View 1
View 2
ed
g
f
f
View 1
View 2
No. Part Code Part Name Description Q’ty
d 40237101 SCREW M3X8 PAN MACHINE W/SW+SMALL PW BZC 2
e 40342712 SCREW M3X6 PAN MACHINE W/SW+SMALL PW BZC 1
f 40019123 SCREW 3X8 BINDING TAPTITE S BZC 2
No. Part Code Part Name Description Q’ty
f 40019123 SCREW 3X8 BINDING TAPTITE S BZC 3
g 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 2
