4
Jun. 2014 GP-10

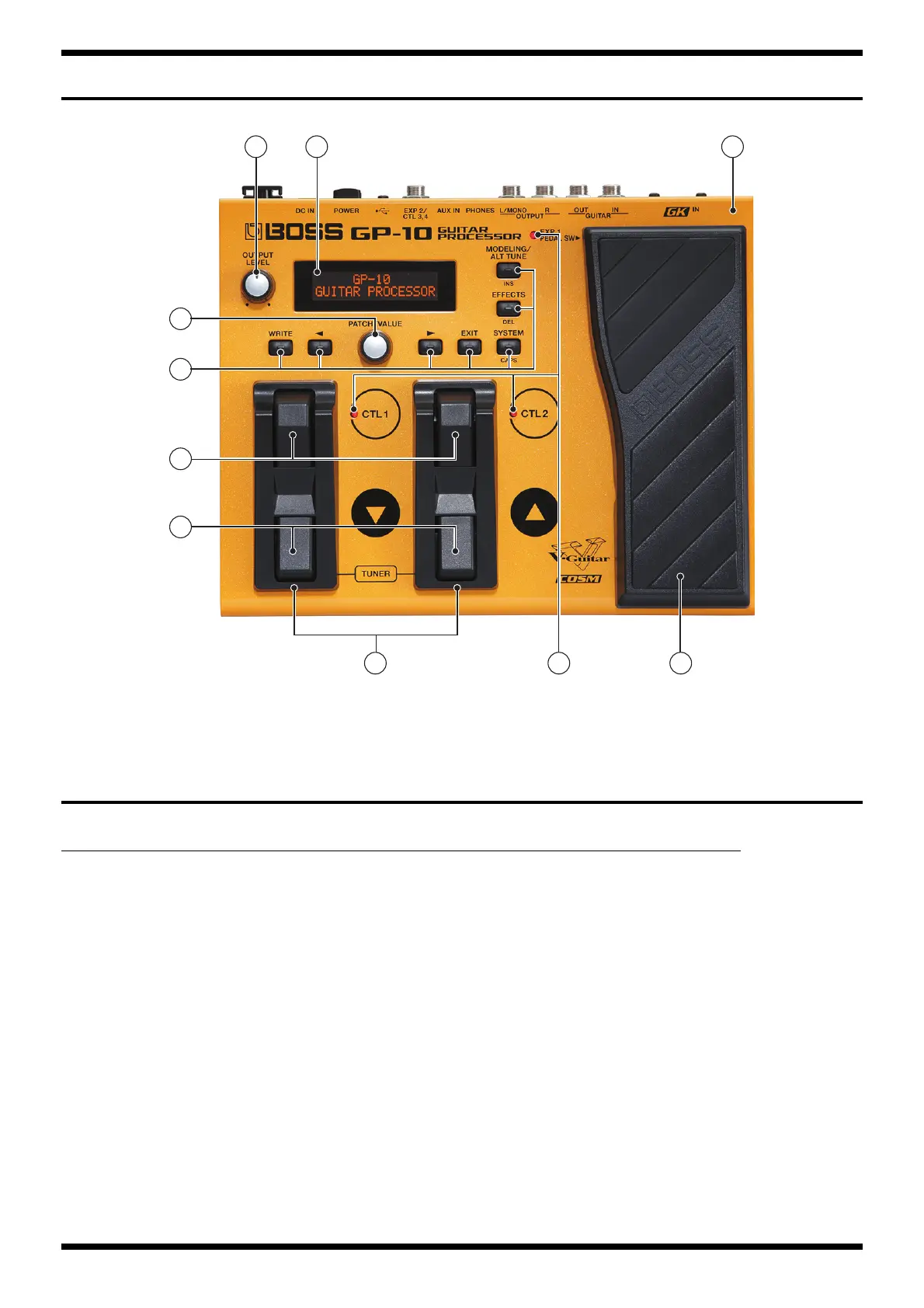

Location of Controls (Front)
fig.panel-front.eps
Location of Controls (Front) Parts List
7
5
4
9
1 2 10
6
3
8
No. Part Code Part Name Description Q’ty
1 5100007869 R-KNOB INDEX G2477526R1 1
5100006350 POTENTIOMETER(F3229188R1) RD901F-40-15F-B50K-00DQ7 1
40128923 HEX NUT M7 H5039521R0 1
2 5100037970 DISPLAY COVER 1
5100010065 LCD PE1602MRT-012-I-Q(F5029425R0) 1
5100037971 DISPLAY CUSHION 1
3 5100008051 R-KNOB (G2477525R1) 1
5100037152 ENCODER RE111F-40B3-15F-20P 1
40128923 HEX NUT M7 H5039521R0 1
4 03344945 KEYTOP S 1PC(G2477513R0) 7
01780101 TACT SWITCH SKQKABD010 7
5 5100037545 SW PEDAL FRONT 2
5100003910 PEDAL FOOT H=7.6 (G2357126R0) 2
04560712 SUPPORT SPRING (G2177103R0) 2
6 5100037546 SW PEDAL REAR 2
5100003910 PEDAL FOOT H=7.6 (G2357126R0) 2
04560712 SUPPORT SPRING (G2177103R0) 2
7 5100037544 SW PEDAL ESCUTCHEON 2
8 05015956 LED BL L-7104SRT (F5229820R0) 3
5100003409 LED SPACER LEDS-8S 3
9 5100011392 VR PEDAL 1
5100011395 PEDAL PLATE 1
10 5100037968 TOP COVER 1
To Next Page
