5
Jun. 2014 GP-10

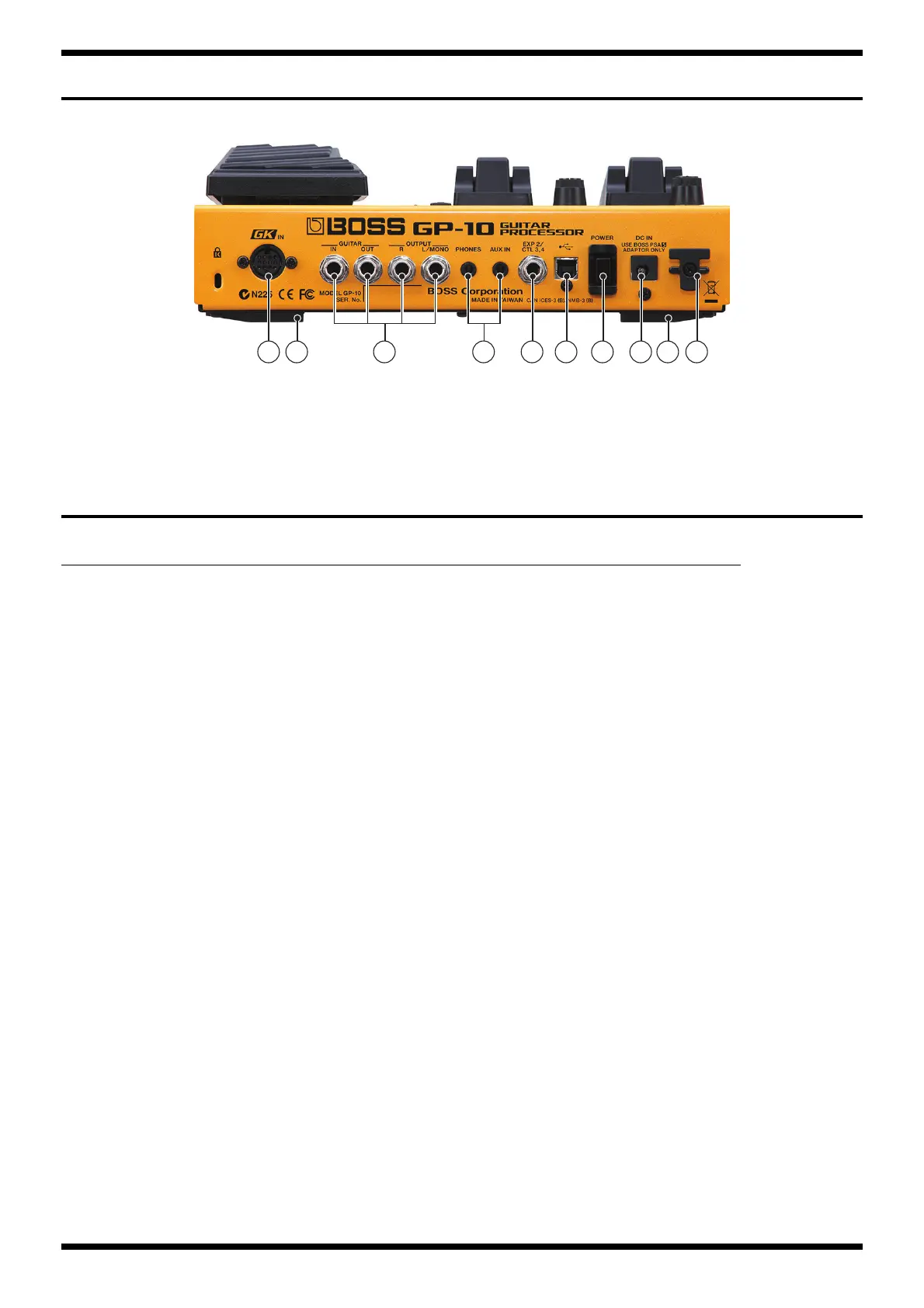

Location of Controls (Rear)
fig.panel-rear.eps
Location of Controls (Rear) Parts List
1 3 4 5 6 7 8 922
No. Part Code Part Name Description Q’ty
1 00564556 DIN CONNECTOR TCS5093-10-4152 1
2 03344923 FOOT H=5 (G2357120R0) 4
3 5100001342 6.5MM JACK HTJ-064-12IMP (13449155R1) 4
5100003918 JACK NUT M9X12X2 NI RTC(H5039510R0) 4
5100003926 PLAIN WASHER 9X13.5X0.5T NI(H5039158R0) 4
4 5100006474 3.5MM JACK HTJ-035-10ABZ(F3439911R0) 2
5 5100034719 6.5MM JACK HTJ-064-22HSPP 1
5100003918 JACK NUT M9X12X2 NI RTC(H5039510R0) 1
5100003926 PLAIN WASHER 9X13.5X0.5T NI(H5039158R0) 1
6 5100017587 USB CONNECTOR UBR23-4K5100(F3439933R0) 1
7 5100018071 POWER SW ESCUTCHEON G2207430R1 1
12499175 BUTTON JSPUE0011A 1
01899989 PUSH SWITCH SPUP19-2N-LB2 1
8 04908701 ADAPTOR JACK KM02018ABM1P(F3439875R0) 1
9 22360712 CORD HOOK 236-712 1
To Next Page
