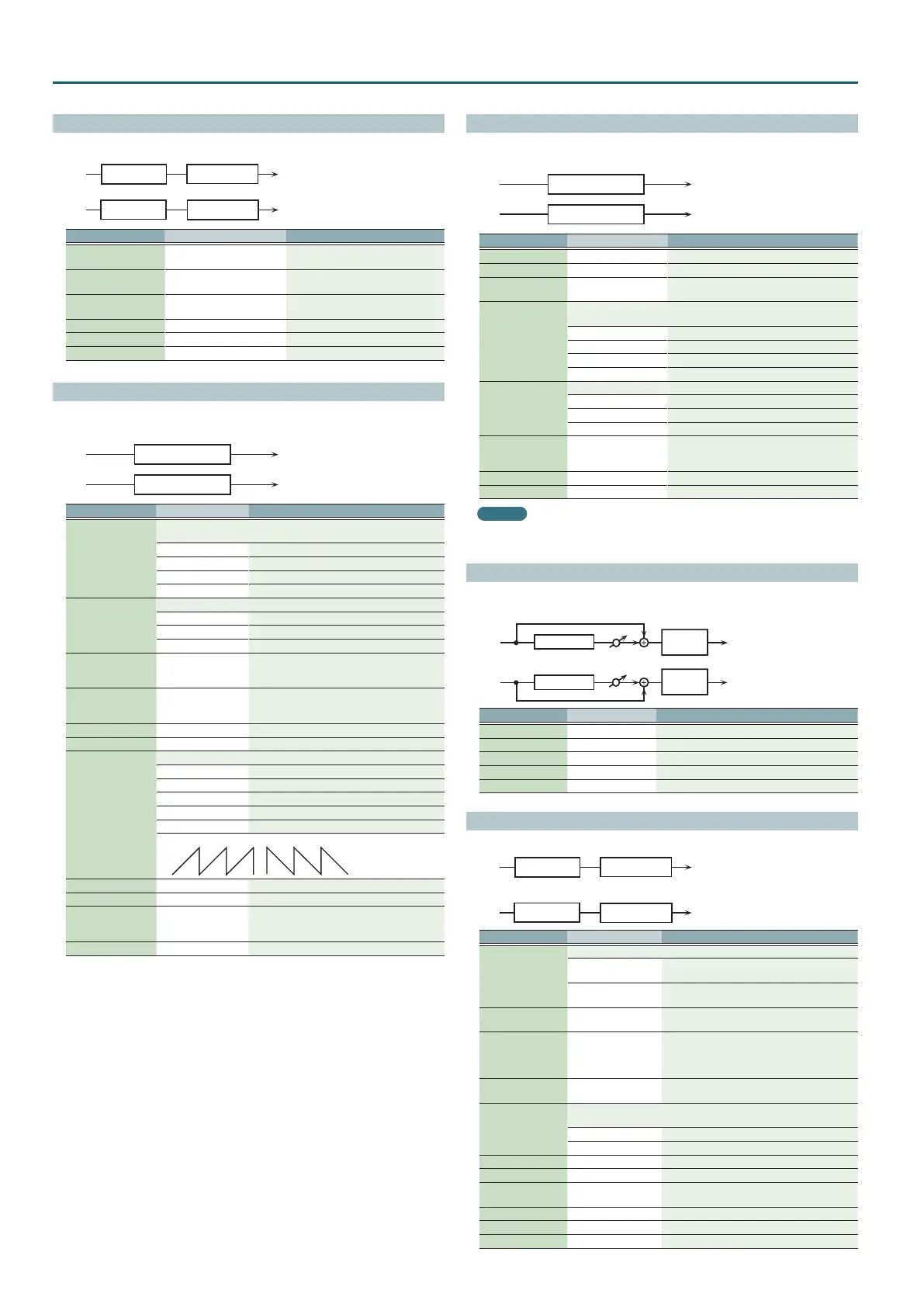

MFX/Chorus/Reverb Parameters
04: LOW BOOST
Boosts the volume of the lower range, creating powerful lows.
L in
R in
L out
R out
Low Boost
2-Band EQ
2-Band EQ
Low Boost
Parameter
Value Explanation
Boost Frequency # 50–125[Hz]
Center frequency at which the lower
range will be boosted
Boost Gain # 0–+12[dB]
Amount by which the lower range will
be boosted
Boost Width WIDE, MID, NARROW
Width of the lower range that will be
boosted
Low Gain -15–+15[dB] Gain of the low frequency range
High Gain -15–+15[dB] Gain of the high frequency range
Level 0–127 Output level
05: SUPER FILTER
This is a lter with an extremely sharp slope. The cuto frequency can be varied
cyclically.
L in
R in
L out
R out
Super Filter
Super Filter
Parameter Value Explanation
Filter Type
Filter type
Frequency range that will pass through each lter
LPF Frequencies below the cuto
BPF Frequencies in the region of the cuto
HPF Frequencies above the cuto
NOTCH Frequencies other than the region of the cuto
Filter Slope
Amount of attenuation per octave
-12[dB] Gentle
-24[dB] Steep
-36[dB] Extremely steep
Filter Cuto # 0–127
Cuto frequency of the lter
Increasing this value will raise the cuto
frequency.
Filter Resonance # 0–127
Filter resonance level
Increasing this value will emphasize the region
near the cuto frequency.
Filter Gain 0–+12[dB] Amount of boost for the lter output
Modulation Sw OFF, ON On/o switch for cyclic change
Modulation Wave
How the cuto frequency will be modulated
TRI Triangle wave
SQR Square wave
SIN Sine wave
SAW1 Sawtooth wave (upward)
SAW2 Sawtooth wave (downward)
SAW1 SAW2
Rate # 0.05–10.00[Hz], note Rate of modulation
Depth 0–127 Depth of modulation
Attack # 0–127
Speed at which the cuto frequency will change
This is eective if Modulation Wave is SQR,
SAW1, or SAW2.
Level 0–127 Output level
06: STEP FILTER
This is a lter whose cuto frequency can be modulated in steps. You can specify
the pattern by which the cuto frequency will change.
L in
R in
L out
R out
Step Filter
Step Filter
Parameter Value Explanation
Step 01–16 0–127 Cuto frequency at each step
Rate # 0.05–10.00[Hz], note Rate of modulation
Attack # 0–127
Speed at which the cuto frequency changes
between steps
Filter Type
Filter type
Frequency range that will pass through each lter
LPF frequencies below the cuto
BPF frequencies in the region of the cuto
HPF frequencies above the cuto
NOTCH frequencies other than the region of the cuto
Filter Slope
Amount of attenuation per octave
-12[dB] gentle
-24[dB] steep
-36[dB] extremely steep
Filter Resonance # 0–127
Filter resonance level
Increasing this value will emphasize the region
near the cuto frequency.
Filter Gain 0–+12[dB] Amount of boost for the lter output
Level 0–127 Output level
MEMO
You can use MFX control to restart the step sequence from the beginning (p. 18,
p. 24).
07: ENHANCER
Controls the overtone structure of the high frequencies, adding sparkle and
tightness to the sound.
L in
R in
L out
R out
Mix
Mix
Enhancer
Enhancer
2-Band
EQ
2-Band
EQ
Parameter Value Explanation
Sens # 0–127 Sensitivity of the enhancer
Mix # 0–127 Level of the overtones generated by the enhancer
Low Gain -15–+15[dB] Gain of the low range
High Gain -15–+15[dB] Gain of the high range
Level 0–127 Output Level
08: AUTO WAH
Cyclically controls a lter to create cyclic change in timbre.
L in
R in
L out
R out
Auto Wah
2-Band EQ
2-Band EQ
Auto Wah
Parameter Value Explanation
Filter Type
Type of lter
LPF
The wah eect will be applied over a wide
frequency range.
BPF
The wah eect will be applied over a narrow
frequency range.
Manual # 0–127
Adjusts the center frequency at which the eect
is applied.
Peak 0–127
Adjusts the amount of the wah eect that will
occur in the range of the center frequency.
Set a higher value for Q to narrow the range to
be aected.
Sens # 0–127
Adjusts the sensitivity with which the lter is
controlled.
Polarity
Sets the direction in which the frequency will change when the auto-
wah lter is modulated.
UP The lter will change toward a higher frequency.
DOWN The lter will change toward a lower frequency.
Rate # 0.05–10.00[Hz], note Frequency of modulation
Depth # 0–127 Depth of modulation
Phase # 0–180[deg]
Adjusts the degree of phase shift of the left and
right sounds when the wah eect is applied.
Low Gain -15–+15[dB] Gain of the low range
High Gain -15–+15[dB] Gain of the high range
Level 0–127 Output level
