149
Chapter 8 Various Settings
Chapter 8
■ Selecting Images To Be Shown on
the KF-7 (User Image Display)
You can have image data from computers and other devices
shown on the onboard display.
At Step 3 in “Procedure” (p. 147), touch <User Image
Display>.

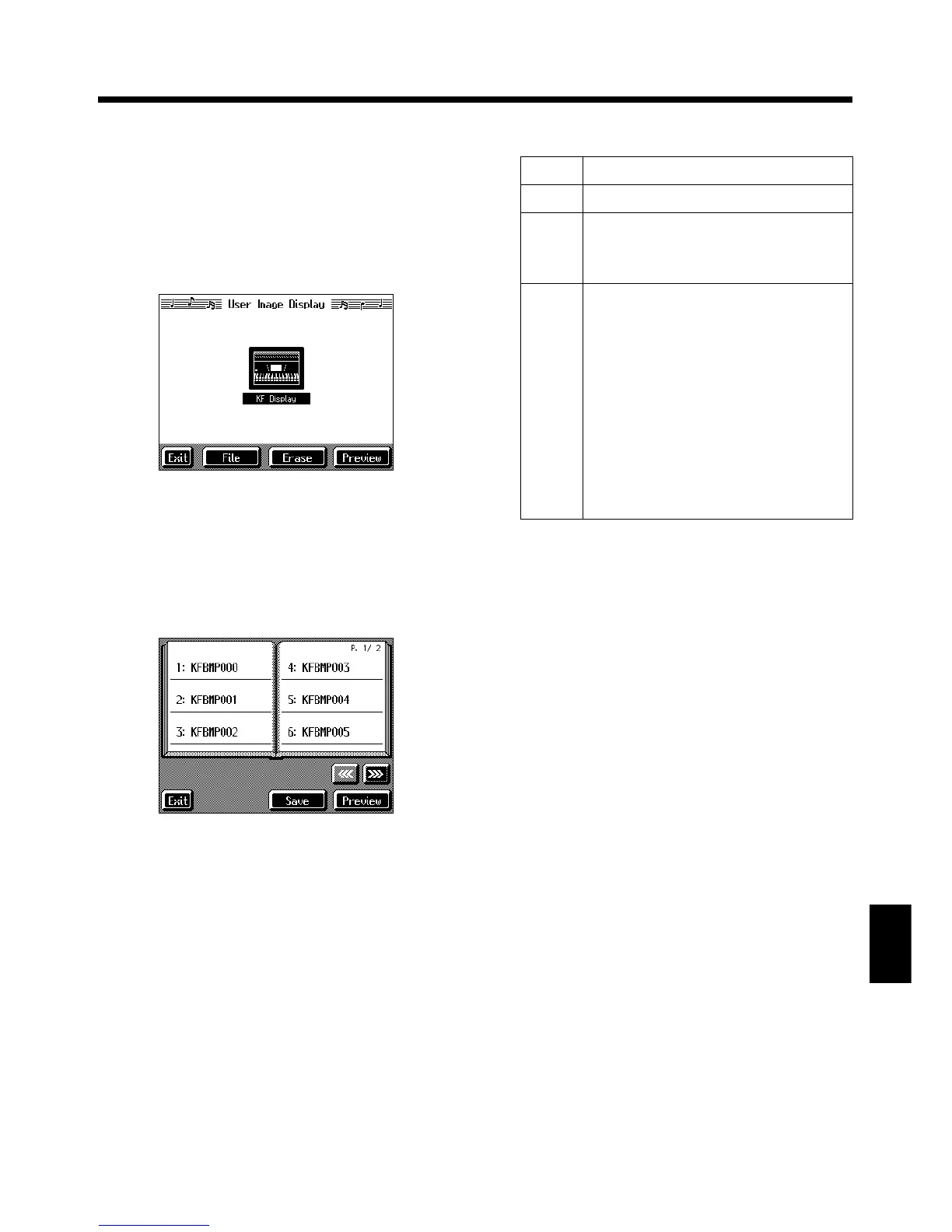

A screen like the one shown below appears.
fig.d-usrimage.eps_50
Selecting the images to be displayed
First, take a floppy disk to which the image data stored
in the KF-7 has been saved, and insert the disk in the
disk drive.
1. Touch <File>.
A screen like the one shown below appears.
fig.d-usrimage2.eps_50
2. Touch the name of the stored image data.
When you touch <Preview>, you can then show the
selected image data on the display selected in Step 1.
3. Touch <Save>.
The selected image data is stored.
4. Touch <Exit> to return to the previous screen.
To clear the stored image data, touch <Erase>.
❍ Image data that KF-7 can display
Size 320 x 240 pixels
Color 1 bit (2 colors)
Format
BMP format
* The KF-7 cannot deal with compressed
image data.
Name
1–8 characters in length (lowercase is ok). A
filename extension of “.BMP” (uppercase
characters) must be added after the name.
The following characters can be used to
name an image.
A B C D E F G H I J K L M N O P Q R S T U
V W X Y Z a b c d e f g h i j k l m n o p q r s
t u v w x y z 0 1 2 3 4 5 6 7 8 9 # $ % & ‘ ( ) -
@ ~ { } ^ _ !
* If you use a character that cannot be used
in a name, it will be replaced by another
character when displayed.
To Next Page
