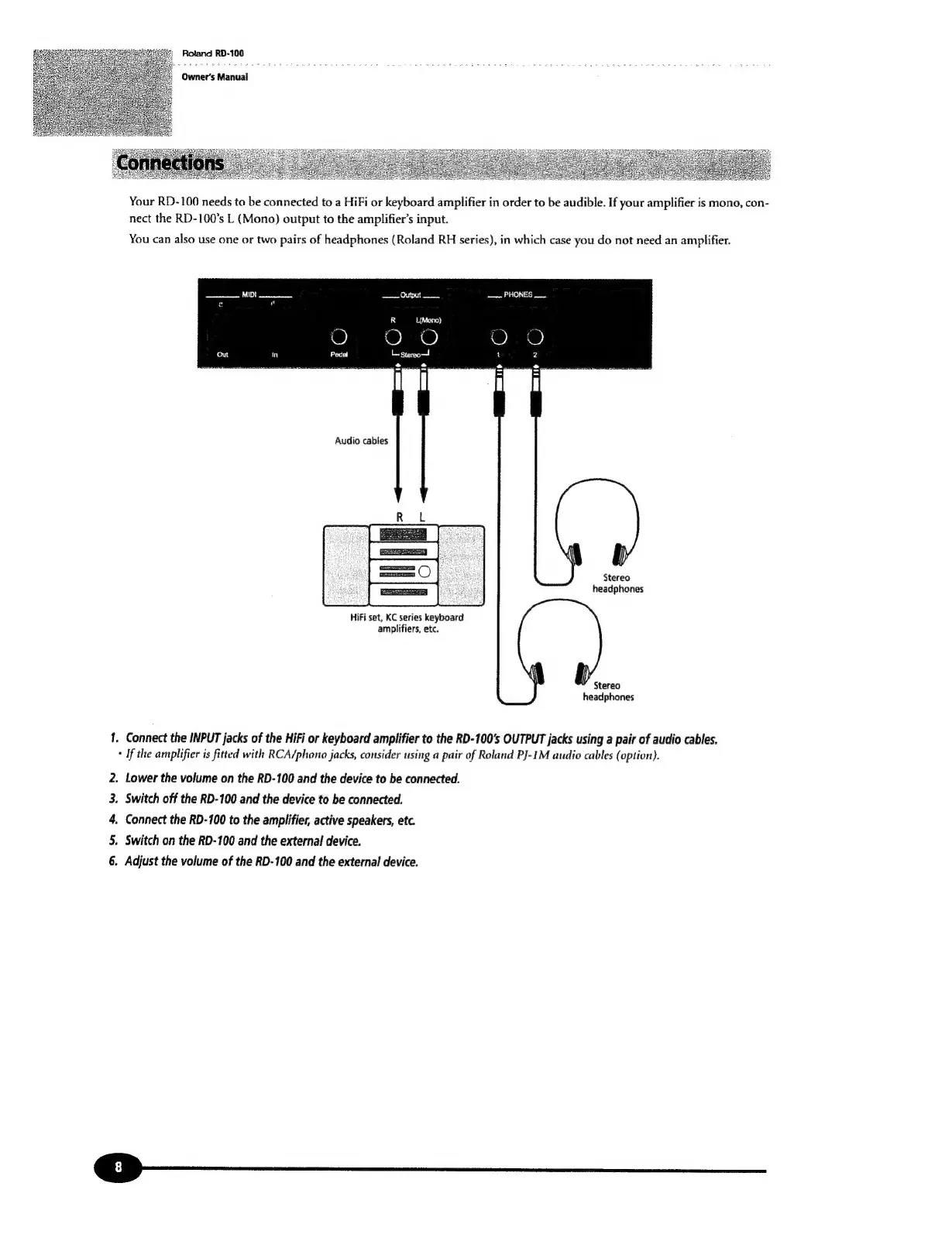

Your
RD-100
needs
to
be
connected
to
a
HiFi
or
keyboard
amplifier
in
order
to
be
audible.
If
your
amplifier
is
mono,
con-
nect
the
RD-100’s
L
(Mono)
output
to
the
amplifier’s
input.
You
can
also
use
one
or
two
pairs
of
headphones
(Roland
RH
series),
in
which
case
you
do
not
need
an
amplifier.
—~
PHONES
ome
1
2
+
eee
2
4
lg
ie
Audio
cables
:
K\
)
—)
=
:
Stereo
&
headphones
HiFi
set,
KC
series
keyboard
amplifiers,
etc.
(
!
Stereo
headphones
1.
Connect
the
INPUT
jacks
of
the
HiFi
or
keyboard
amplifier
to
the
RD-100’s
OUTPUT
jacks
using
a
pair
of
audio
cables,
+
If
the
amplifier
is
fitted
with
RCA/phono
jacks,
consider
using
a
pair
of
Roland
PJ-1M
audio
cables
(option).
2.
Lower
the
volume
on
the
RD-100
and
the
device
to
be
connected.
3.
Switch
off
the
RD-100
and
the
device
to
be
connected.
4.
Connect
the
RD-100
to
the
amplifier,
active
speakers,
etc.
5.
Switch
on
the
RD-100
and
the
external
device.
6.
Adjust
the
volume
of
the
RD-100
and
the
external
device.
