Roland SH-101 Parameter Guide

9

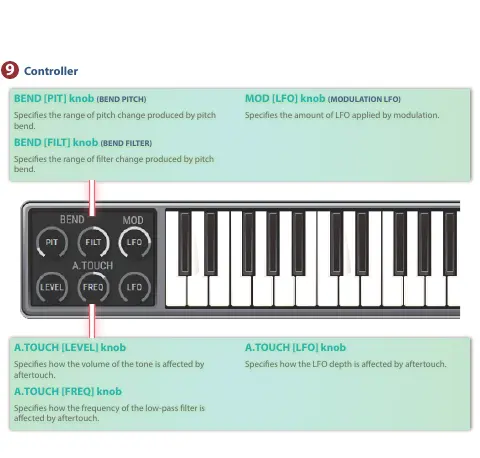

ControllerController
A.TOUCH [LEVEL] knob
Species how the volume of the tone is aected by
aftertouch.
A.TOUCH [FREQ] knob
Species how the frequency of the low-pass lter is
aected by aftertouch.
A.TOUCH [LFO] knob
Species how the LFO depth is aected by aftertouch.
BEND [PIT] knob (BEND PITCH)
Species the range of pitch change produced by pitch
bend.
BEND [FILT] knob (BEND FILTER)
Species the range of lter change produced by pitch
bend.
MOD [LFO] knob (MODULATION LFO)
Species the amount of LFO applied by modulation.

Roland SH-101 Specifications

General

Type	Analog Monophonic Synthesizer
Oscillators	1 VCO
Envelope	ADSR
Keyboard	32 keys
Arpeggiator	No
Sequencer	100-note
External Control	CV/Gate
Year Released	1982
Waveforms	Sawtooth, Square, Pulse
LFO	1 LFO
LFO Waveforms	Triangle, Square
Memory	No
Control	Pitch bend, Modulation
Outputs	Mono output, headphones
Power Supply	9V DC or 6 x AA batteries
Sub-oscillator	Square (-1 octave)
Filter	24dB/oct low-pass
