4

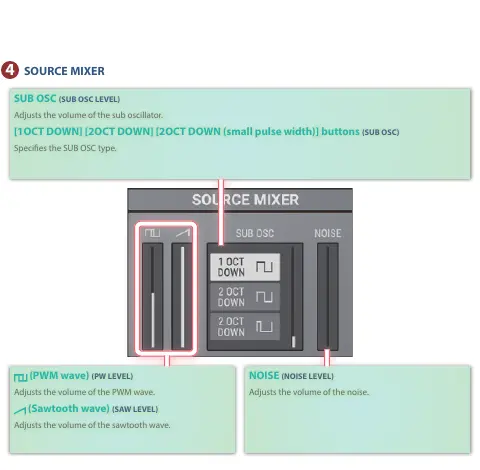

SOURCE MIXERSOURCE MIXER
(PWM wave) (PW LEVEL)
Adjusts the volume of the PWM wave.
(Sawtooth wave) (SAW LEVEL)
Adjusts the volume of the sawtooth wave.
SUB OSC (SUB OSC LEVEL)
Adjusts the volume of the sub oscillator.
[1OCT DOWN] [2OCT DOWN] [2OCT DOWN (small pulse width)] buttons (SUB OSC)
Species the SUB OSC type.
NOISE (NOISE LEVEL)
Adjusts the volume of the noise.
