Roland SH-101 Parameter Guide

5

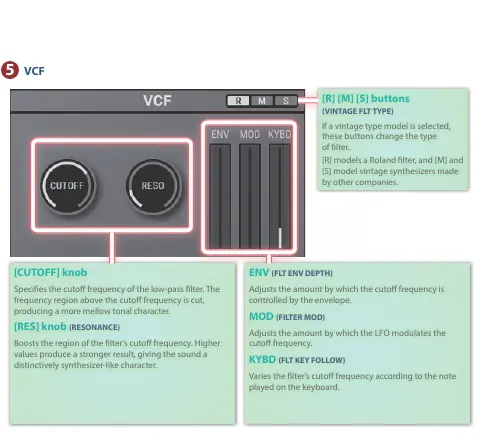

VCFVCF
[R] [M] [S] buttons
(VINTAGE FLT TYPE)
If a vintage type model is selected,
these buttons change the type
of lter.
[R] models a Roland lter, and [M] and
[S] model vintage synthesizers made
by other companies.
ENV (FLT ENV DEPTH)
Adjusts the amount by which the cuto frequency is
controlled by the envelope.
MOD (FILTER MOD)
Adjusts the amount by which the LFO modulates the
cuto frequency.
KYBD (FLT KEY FOLLOW)
Varies the lter’s cuto frequency according to the note
played on the keyboard.
[CUTOFF] knob
Species the cuto frequency of the low-pass lter. The
frequency region above the cuto frequency is cut,
producing a more mellow tonal character.
[RES] knob (RESONANCE)
Boosts the region of the lter’s cuto frequency. Higher
values produce a stronger result, giving the sound a
distinctively synthesizer-like character.

Roland SH-101 Specifications

General

Type	Analog Monophonic Synthesizer
Oscillators	1 VCO
Envelope	ADSR
Keyboard	32 keys
Arpeggiator	No
Sequencer	100-note
External Control	CV/Gate
Year Released	1982
Waveforms	Sawtooth, Square, Pulse
LFO	1 LFO
LFO Waveforms	Triangle, Square
Memory	No
Control	Pitch bend, Modulation
Outputs	Mono output, headphones
Power Supply	9V DC or 6 x AA batteries
Sub-oscillator	Square (-1 octave)
Filter	24dB/oct low-pass
