Roland SH-101 Parameter Guide

4
SOURCE MIXERSOURCE MIXER
(PWM wave) (PW LEVEL)
Adjusts the volume of the PWM wave.
(Sawtooth wave) (SAW LEVEL)
Adjusts the volume of the sawtooth wave.
SUB OSC (SUB OSC LEVEL)
Adjusts the volume of the sub oscillator.
[1OCT DOWN] [2OCT DOWN] [2OCT DOWN (small pulse width)] buttons (SUB OSC)
Species the SUB OSC type.
NOISE (NOISE LEVEL)
Adjusts the volume of the noise.
3

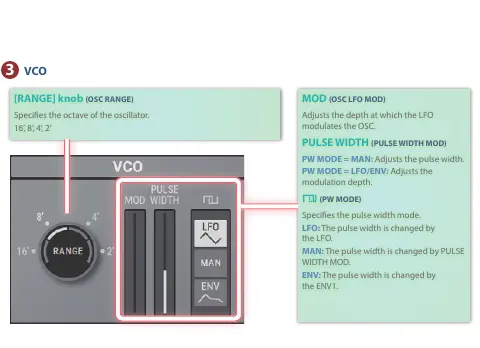

VCOVCO
MOD (OSC LFO MOD)
Adjusts the depth at which the LFO
modulates the OSC.
PULSE WIDTH (PULSE WIDTH MOD)
PW MODE = MAN: Adjusts the pulse width.
PW MODE = LFO/ENV: Adjusts the
modulation depth.
V
(PW MODE)
Species the pulse width mode.
LFO: The pulse width is changed by
the LFO.
MAN: The pulse width is changed by PULSE
WIDTH MOD.
ENV: The pulse width is changed by
the ENV1.
[RANGE] knob (OSC RANGE)
Species the octave of the oscillator.
16’, 8’, 4’, 2’

Roland SH-101 Specifications

General

Type	Analog Monophonic Synthesizer
Oscillators	1 VCO
Envelope	ADSR
Keyboard	32 keys
Arpeggiator	No
Sequencer	100-note
External Control	CV/Gate
Year Released	1982
Waveforms	Sawtooth, Square, Pulse
LFO	1 LFO
LFO Waveforms	Triangle, Square
Memory	No
Control	Pitch bend, Modulation
Outputs	Mono output, headphones
Power Supply	9V DC or 6 x AA batteries
Sub-oscillator	Square (-1 octave)
Filter	24dB/oct low-pass
