2

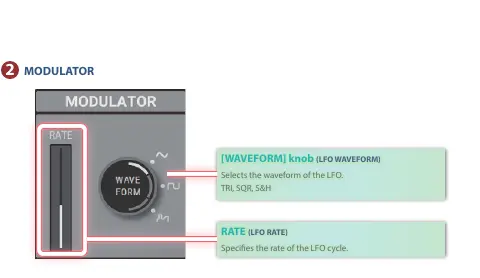

MODULATORMODULATOR
[WAVEFORM] knob (LFO WAVEFORM)
Selects the waveform of the LFO.
TRI, SQR, S&H
RATE (LFO RATE)
Species the rate of the LFO cycle.
