Roland SH-101 Parameter Guide

8

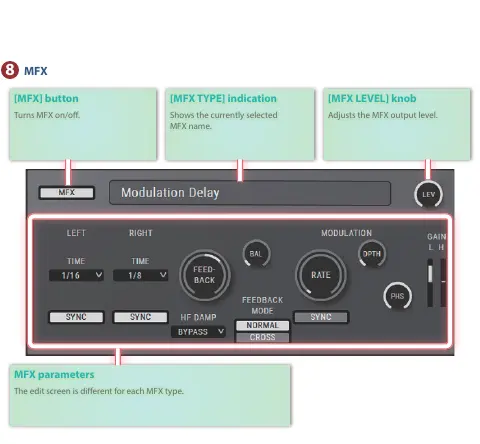

MFXMFX
MFX parameters
The edit screen is dierent for each MFX type.
[MFX] button
Turns MFX on/o.
[MFX TYPE] indication
Shows the currently selected
MFX name.
[MFX LEVEL] knob
Adjusts the MFX output level.
7
ENVENV
[GATE+TRIG] [GATE] [LFO] buttons (ENV MODE)
Species what causes the envelope to attack.
Button Explanation
GATE+TRIG Attack each time a key is pressed.
GATE
Attack when a key is pressed anew.
No attack when playing legato.
Button Explanation
LFO
Attack repeatedly at each cycle of
the LFO as long as the key is held.
Envelope
You can edit the ADSR settings of the envelope.
A
D
S
R
[A] knob (ENV ATTACK)
Adjusts the Attack time.
[D] knob (ENV DECAY)
Adjusts the Decay time.
[S] knob (ENV SUSTAIN)
Adjusts the Sustain level.
[R] knob (ENV RELEASE)
Adjusts the Release time.

Roland SH-101 Specifications

General

Type	Analog Monophonic Synthesizer
Oscillators	1 VCO
Envelope	ADSR
Keyboard	32 keys
Arpeggiator	No
Sequencer	100-note
External Control	CV/Gate
Year Released	1982
Waveforms	Sawtooth, Square, Pulse
LFO	1 LFO
LFO Waveforms	Triangle, Square
Memory	No
Control	Pitch bend, Modulation
Outputs	Mono output, headphones
Power Supply	9V DC or 6 x AA batteries
Sub-oscillator	Square (-1 octave)
Filter	24dB/oct low-pass
