6

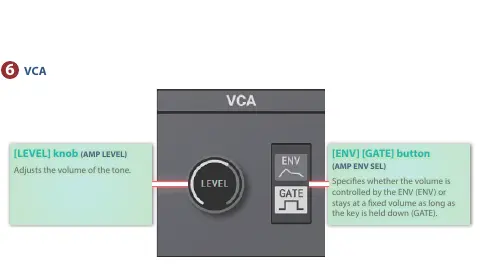

VCAVCA
[LEVEL] knob (AMP LEVEL)
Adjusts the volume of the tone.
[ENV] [GATE] button
(AMP ENV SEL)
Species whether the volume is
controlled by the ENV (ENV) or
stays at a xed volume as long as
the key is held down (GATE).
