Roland TD-4 User Manual

9
Getting Ready to Play
Deutsch Français Italiano Español Português NederlandsEnglish

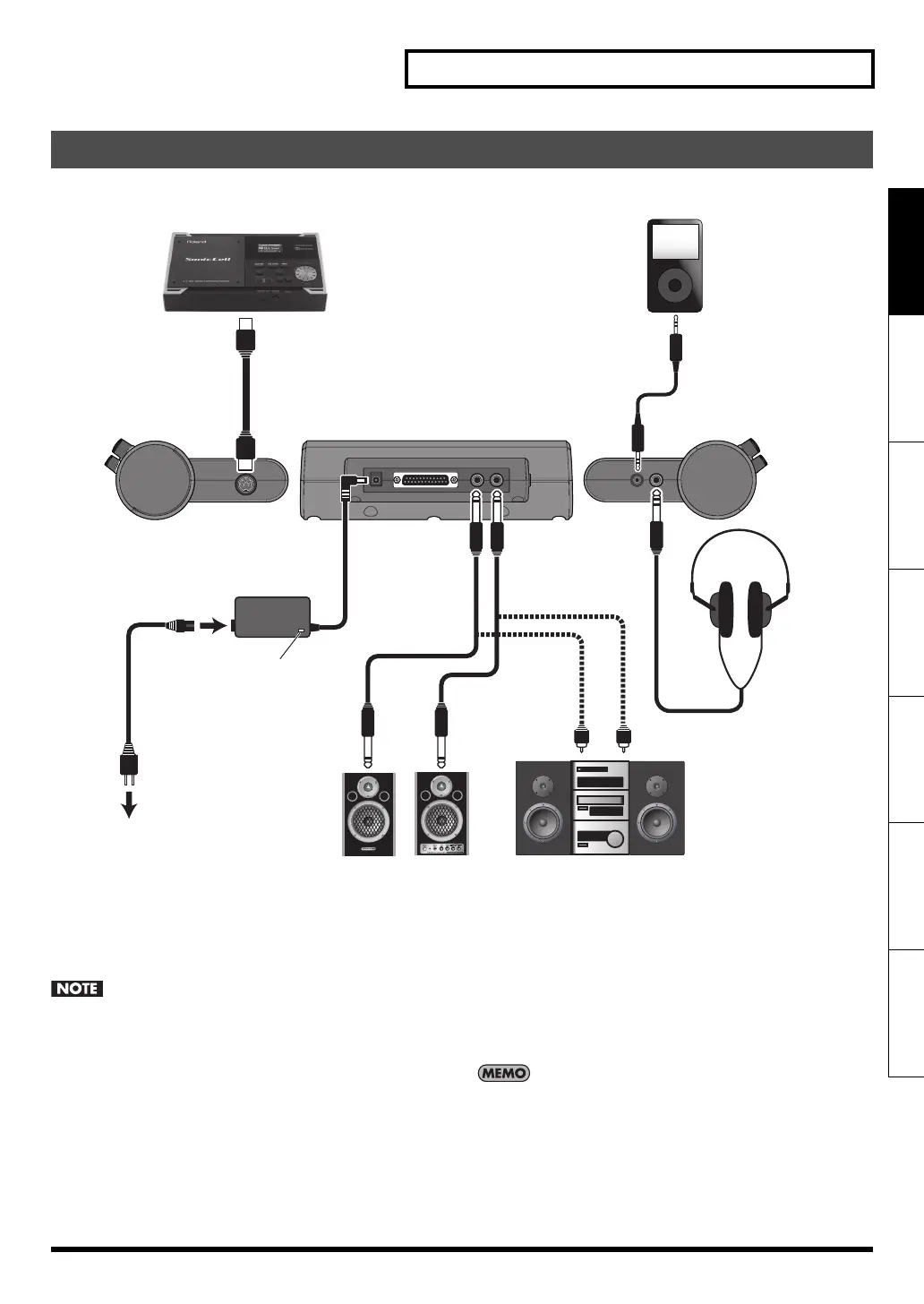

fig.Connection.eps
1. Power-off all equipment before making
connections.
To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the
power on all devices before making connections.
2. Connect the OUTPUT jacks (L/MONO, R) to your
audio system or amp.
*If you’re using headphones, connect them to the PHONES
jack.
3. Connect the included AC adaptor to the DC IN jack.
Place the AC adaptor so the side with the indicator (see
illustration) faces upwards and the side with written
information faces downwards.
* The indicator will light when you plug the AC adaptor into an
AC outlet.
Using the MIX IN jack allows playing along with music from a
portable audio player or other external sources (p. 16).
Connecting Your Audio Equipment
MIDI IN
Stereo
1/4” phone plug
Stereo
miniature plug
Stereo
Headphones
Audio Set, etc
Powered Amp, etc
Indicator
To AC Outlet
AC Adaptor
Power Cord
Portable Audio Player
MIDI Sound Module
TD-4_e.book 9 ページ ２００８年１１月５日 水曜日 午後６時４０分

Roland TD-4 Specifications

General

Sound Module	TD-4 Percussion Sound Module
Metronome	Yes
Type	Electronic Drum Kit
Power Supply	AC Adaptor (DC 9V)
Kits	25 preset kits
Instruments	125 instruments
Display	3-digit LED display
Inputs	1 x trigger input
Outputs	LINE OUT (Stereo 1/4" phone type), Headphones (Stereo 1/4" phone type)
Practice Features	Coach Mode
Connectivity	MIDI Out
Effects	Reverb
Inputs/Outputs	MIDI Out
Pads	Compatible with Roland PD-8, PD-9, PD-80, PD-85, PD-105, PD-125, KD-8, KD-80, KD-120, KD-140, CY-5, CY-8, CY-12, CY-14, CY-15
