Roland TD-4 User Manual

11
Getting Ready to Play
Deutsch Français Italiano Español Português NederlandsEnglish

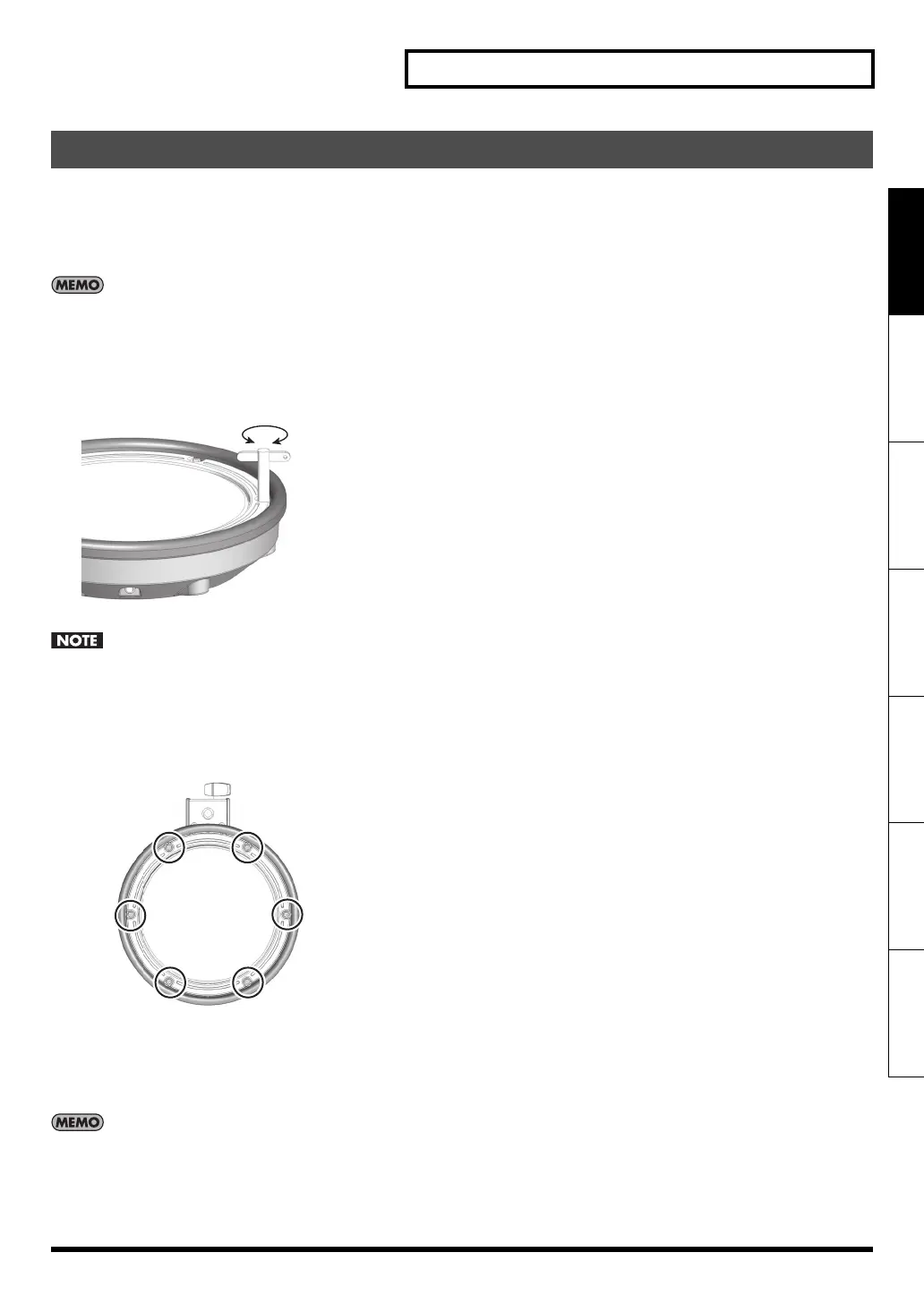

BEFORE using the PDX-8 mesh pads you must adjust the tension.
You can tension mesh heads the same way you do with acoustic drums.
* Use a drum key to make adjustments.
Adjusting the tension of the PDX-8 head is only for playing response and will not affect the pitch as on an acoustic drum.
1. Use the included drum key to tighten the tuning
bolts.
Strike the head to check the feel and response.
fig.PDX8-Adj.eps
fig.PDX8-Bolt.eps
Tighten the tuning bolts in the numerical order shown in the
following illustration. If you firmly tighten a tuning bolt at
one location all at once, it will be impossible to stretch the
head evenly, and this may cause triggering response
problems.
2. Tension the head evenly as you test the playing
feel, just as you would with an acoustic drum.
Head tension may slacken with the passage of time. Readjust
the tension as needed.
Tensioning the Head of a Mesh Pad (PDX-8)
Loosen Tighten
1
3
4
2
5
6
TD-4_e.book 11 ページ ２００８年１１月５日 水曜日 午後６時４０分

Roland TD-4 Specifications

General

Sound Module	TD-4 Percussion Sound Module
Metronome	Yes
Type	Electronic Drum Kit
Power Supply	AC Adaptor (DC 9V)
Kits	25 preset kits
Instruments	125 instruments
Display	3-digit LED display
Inputs	1 x trigger input
Outputs	LINE OUT (Stereo 1/4" phone type), Headphones (Stereo 1/4" phone type)
Practice Features	Coach Mode
Connectivity	MIDI Out
Effects	Reverb
Inputs/Outputs	MIDI Out
Pads	Compatible with Roland PD-8, PD-9, PD-80, PD-85, PD-105, PD-125, KD-8, KD-80, KD-120, KD-140, CY-5, CY-8, CY-12, CY-14, CY-15
