38
Expanding your drum set
Here’s an example of adding a separately sold cymbal (CY-8) to the
TD-4K as “Crash Cymbal 2” (CRASH 2).

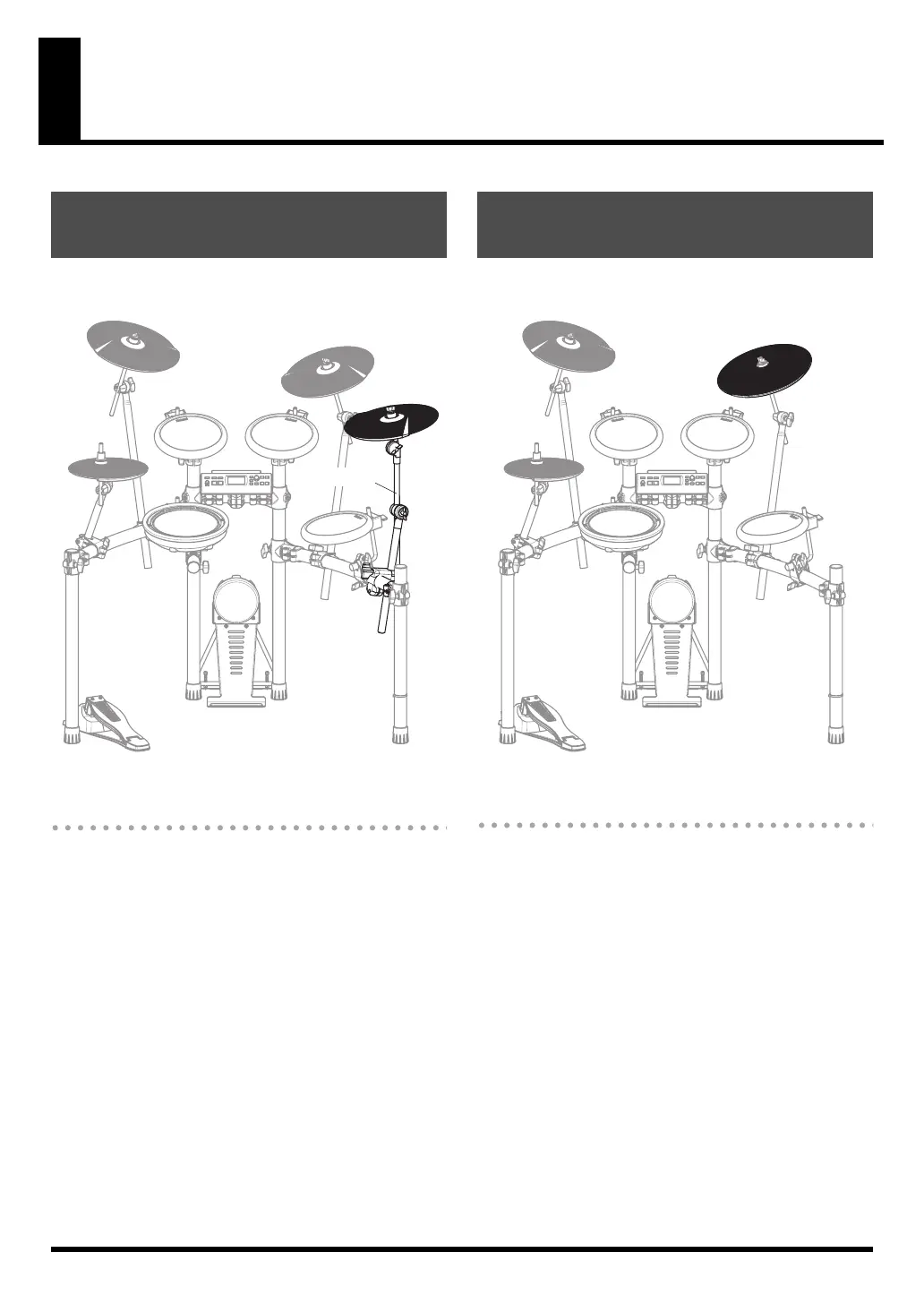

fig.Expand-1.eps
CRASH 2 (CY-8) settings
1. Connect the “CR2” trigger cable.
2. Set the Crash 2 Usage parameter to “CRASH 2” (p.
36).
3. As the pad type (Pad Type), select “CY-8” (p. 35).
Here’s an example of replacing the RIDE cymbal (CY-8) with a
separately sold CY-12R/C or CY-15R.
fig.Expand-2.eps
RIDE (CY-12R/C, CY-15R) settings
* In this case, the Crash 2 pad cannot be connected.
1. Connect the “RD” trigger cable to the BOW/EDGE
output jack.
2. Connect the “CR2” trigger cable to the BOW/BELL
output jack.
3. Set the Crash 2 Usage parameter to “RIDE BELL” (p.
36).
4. As the pad type (Pad Type), select “CY-12/15R” (p.
35).
If you select an instrument whose name is not followed by “/
B” in the instrument settings (p. 28), the sound won’t switch
to the bell sound even if you strongly strike the bow.
Adding a CRASH 2 cymbal
CY-8
MDY-10U
Using a CY-12R/C or CY-15R
instead of the CY-8 cymbal
CY-12R/C
CY-15R
