Roland TD-4 User Manual

39
Expanding your drum set
Deutsch Français Italiano Español Português NederlandsEnglish

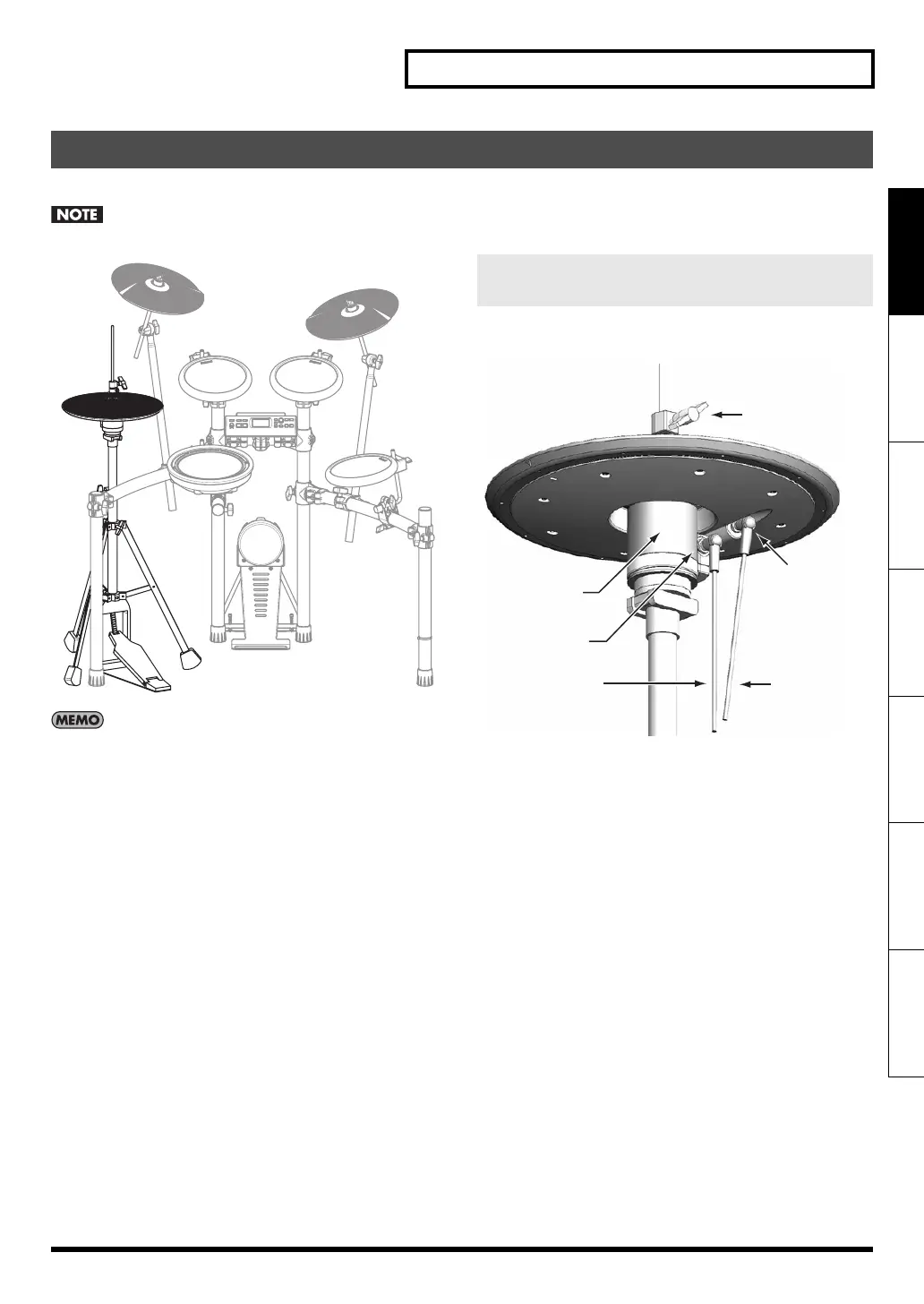

Here’s an example of using the VH-11 (sold separately) as the hi-hat.
The VH-12 is not supported.
You could also use the leftover CY-5 as CRASH 2.
Connections
fig.VH-Connect.eps
• Connect the “HH” trigger cable to the TRIGGER OUT jack.
• Connect the “HHC” trigger cable to the CONTROL OUT jack.
* For details on installing the VH-11 to the hi-hat stand, refer to
the “VH-11 Owner’s Manual.”
Settings
1. Make sure that the VH-11 is correctly connected to
the TD-4.
2. Set up the hi-hat, take your foot off the pedal, and
power-on the TD-4.
* It will be impossible to make the adjustment correctly if the
hi-hat is touching the motion sensor when you turn on the
power.
3. Loosen the clutch screw, and allow the hi-hat to
rest naturally on top of the motion sensor unit.
4. Press the [MENU] button so it’s lit.
Using the VH-11 V Hi-hat
Connecting the VH-11 and Making Settings
on the TD-4
TRIGGER OUT
Jack
Connect the
HH cable
Clutch Screw
Connect the
HHC cable
CONTROL OUT
Jack
Motion Sensor
Unit
TD-4_e.book 39 ページ ２００８年１１月５日 水曜日 午後６時４０分

Roland TD-4 Specifications

General

Sound Module	TD-4 Percussion Sound Module
Metronome	Yes
Type	Electronic Drum Kit
Power Supply	AC Adaptor (DC 9V)
Kits	25 preset kits
Instruments	125 instruments
Display	3-digit LED display
Inputs	1 x trigger input
Outputs	LINE OUT (Stereo 1/4" phone type), Headphones (Stereo 1/4" phone type)
Practice Features	Coach Mode
Connectivity	MIDI Out
Effects	Reverb
Inputs/Outputs	MIDI Out
Pads	Compatible with Roland PD-8, PD-9, PD-80, PD-85, PD-105, PD-125, KD-8, KD-80, KD-120, KD-140, CY-5, CY-8, CY-12, CY-14, CY-15
