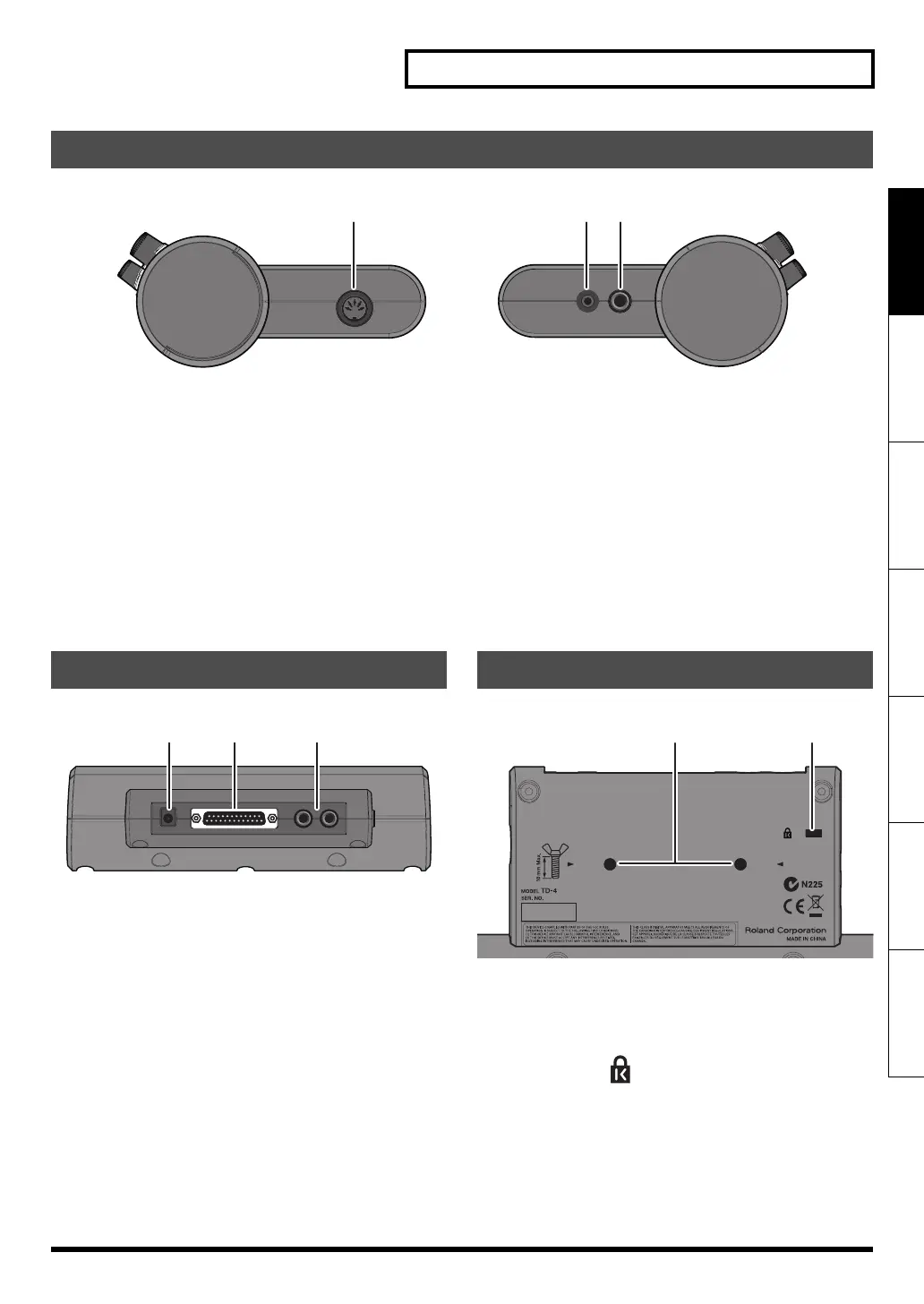

Panel Descriptions
Deutsch Français Italiano Español Português NederlandsEnglish
fig.SideP.eps
15. MIDI OUT connector
Use this when you want to use the pads to play external MIDI
sound sources or for recording with sequencers (p. 41).
16. MIX IN jack
For connecting an external audio source such as MP3 or CD
players (p. 16). All sound input here is also sent from the
OUTPUT and PHONES jacks.
* To adjust the volume, use the controls of the external device
connected to MIX IN.
17. PHONES jack
For connecting stereo headphones (p. 9).
Using the headphone jack will not mute the main OUTPUT
jacks.
fig.RearP.epss
18. DC IN jack
Connect the included AC adaptor here (p. 9).
19. TRIGGER INPUT connector
Connecting the special cable connects the pads and pedals
to the TD-4 (p. 8).
20. OUTPUT jacks (L/MONO, R)
All sounds of the TD-4 are output here. Use for connecting to
an amp or other external audio equipment.
If you’re working in mono, only use the L/MONO jack.
fig.BottomP.eps
21. Sound module mounting plate attachment holes
Attach the included sound module mounting plate here so
that you can attach the TD-4 to your drum stand.
22. Security Slot ( )
http://www.kensington.com/
Side Panel
15 16 17
Rear Panel
18 19 20
Bottom Panel
2221
TD-4_e.book 7 ページ ２００８年１１月５日 水曜日 午後６時４０分

Roland TD-4 Specifications

General

Sound Module	TD-4 Percussion Sound Module
Metronome	Yes
Type	Electronic Drum Kit
Power Supply	AC Adaptor (DC 9V)
Kits	25 preset kits
Instruments	125 instruments
Display	3-digit LED display
Inputs	1 x trigger input
Outputs	LINE OUT (Stereo 1/4" phone type), Headphones (Stereo 1/4" phone type)
Practice Features	Coach Mode
Connectivity	MIDI Out
Effects	Reverb
Inputs/Outputs	MIDI Out
Pads	Compatible with Roland PD-8, PD-9, PD-80, PD-85, PD-105, PD-125, KD-8, KD-80, KD-120, KD-140, CY-5, CY-8, CY-12, CY-14, CY-15
