Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
181
Specifications and Reference Data

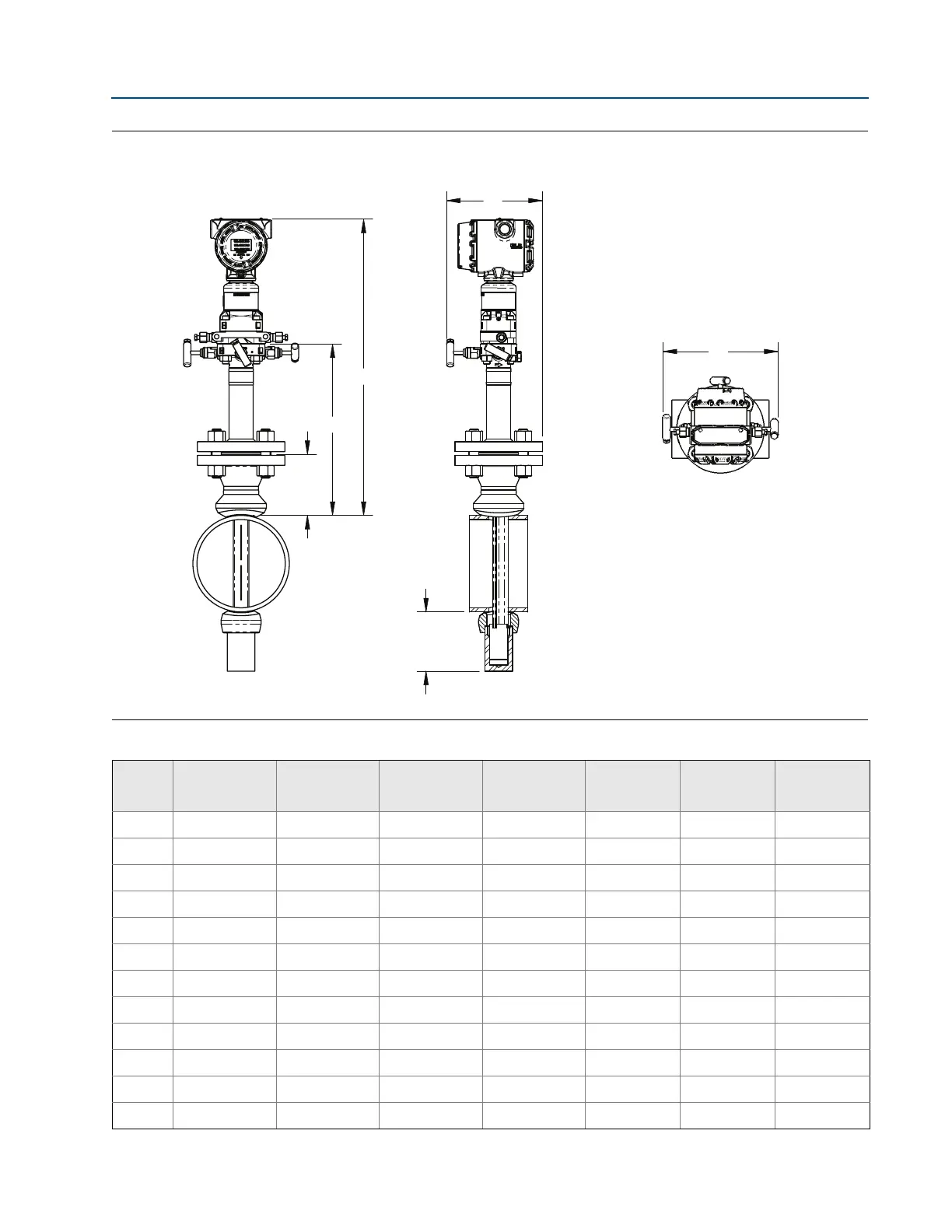

Figure 5. Rosemount 3051SFA Flanged with Opposite Side Support Annubar Flowmeter
Front view Side view Top view
Table 33. 3051SFA Flanged Annubar Flowmeter Dimensional Data
Sensor
size
Flange size
and rating
A ± 0.125
(3.2)
B ± 0.25
(6.4)
C ± 0.25
(6.4)
D (Max) E (Max) F (Max)
1 1
1
/2 – 150# 3.88 (98.6) 11.00 (279.4) 19.53 (496.1) 9.00 (228.6) 6.30 (160.0) 3.50 (88.9)
1 1
1
/2 – 300# 4.13 (104.9) 11.00 (279.4) 19.53 (496.1) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 1
1
/2 – 600# 4.44 (112.8) 11.00 (279.4) 19.53 (496.1) 9.00(228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/PN16 3.09 (78.5) 11.00 (279.4) 19.53 (496.1) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/PN40 3.21 (81.5) 11.00 (279.4) 19.53 (496.1) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/ PN100 3.88 (98.6) 11.00 (279.4) 19.53 (496.1) 9.00(228.6) 6.86 (174.2) 3.50 (88.9)
1 1
1
/2 – 900# 4.94 (125.5) 9.31 (236.5) N/A N/A N/A 3.50 (88.9)
1 1
1
/2 – 1500# 4.94 (125.5) 9.31 (236.5) N/A N/A N/A 3.50 (88.9)
1 1
1
/2 – 2500# 6.76 (171.7) 11.63 (295.4) N/A N/A N/A 4.00 (101.6)
2 2 – 150# 4.13 (104.9) 12.00 (304.8) 20.53 (521.5) 9.00 (228.6) 6.80 (172.7) 5.00 (127.0)
2 2 – 300# 4.38 (111.3) 12.00 (304.8) 20.53 (521.5) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
2 2 – 600# 4.75 (120.7) 12.00 (304.8) 20.53 (521.5) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
A
B
C
D
E
F
