Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
201
Specifications and Reference Data

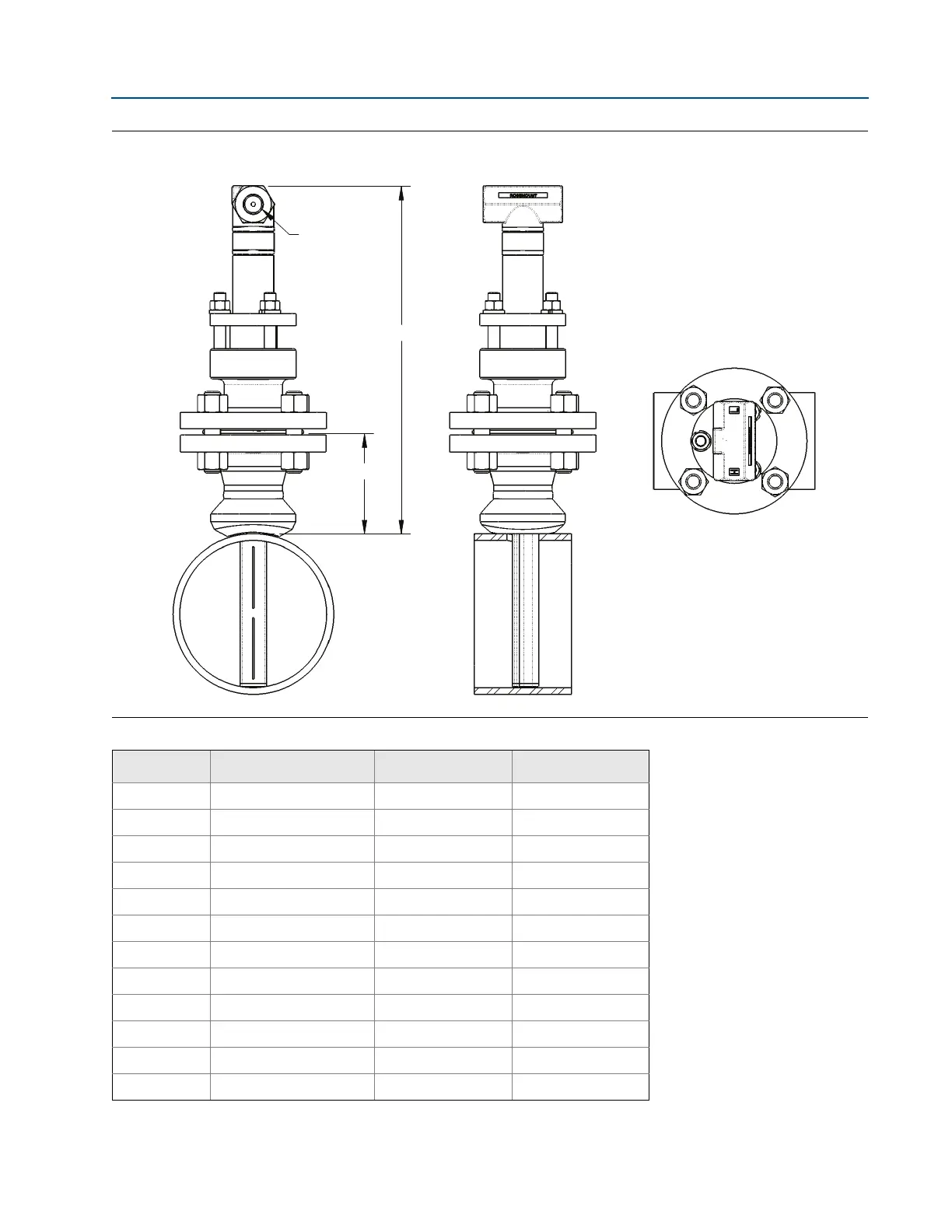

Figure 19. Flange-Lok 485 Annubar Primary Element
(1)
Front view Side view Top view
1. The Flange-Lok Annubar model can be direct mounted up to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 47. Flange-Lok 485 Annubar Primary Element Dimensional Data
Sensor size Flange size and rating A ± 0.125 (3.2) B ± 0.25 (6.4)
1 1
1
/2 – 150# 3.88 (98.6) 12.25 (311.2)
1 1
1
/2 – 300# 4.13 (104.9) 12.25 (311.2)
1 1
1
/2 – 600# 4.44 (112.8) 12.25 (311.2)
1 DN40/PN16 3.09 (78.5) 12.25 (311.2)
1 DN40/PN40 3.21 (81.5) 12.25 (311.2)
1 DN40/PN100 3.88 (98.6) 12.25 (311.2)
2 2 – 150# 4.13 (104.9) 14.25 (362.0)
2 2 – 300# 4.38 (111.3) 14.25 (362.0)
2 2 – 600# 4.75 (120.7) 14.25 (362.0)
2 DN50/PN16 3.40 (86.4) 14.25 (362.0)
2 DN50/PN40 3.52 (89.4) 14.25 (362.0)
2 DN50/ PN100 4.30 (109.2) 14.25 (362.0)
