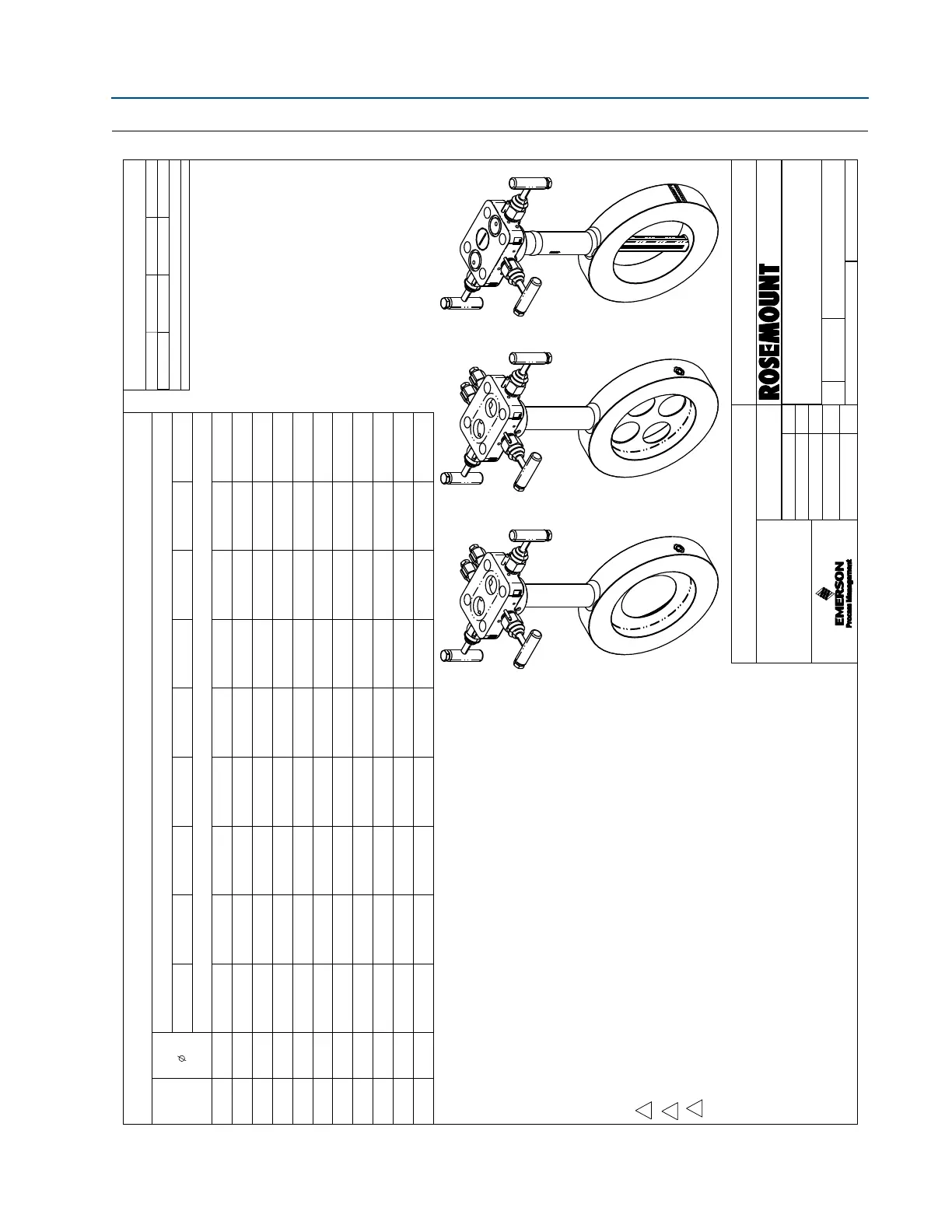

Figure 3. FM Installation Drawing 00405-1001, Rev. AQ
®
DR.
SIZE
C
TITLE
BOULDER, COLORADO
DRAWING NO.
APPROVAL
SPECIALS
TAGGING
DRAWING
*ALL DIMENSIONS ARE NOMINAL
AND ARE FOR REFERENCE ONLY
*UNLESS OTHERWISE SPECIFIED
DIMENSIONS IN INCHES (MM)
TYPE I
SHEET:
of
SCALE
: NONE
REVISION
ECO NO.
APP'D
DATE
REVISION TABLE
DESCRIPTION
P DEEGAN
12/13/11
S IFFT
12/27/11
00405-1001
1
7
DIMENSIONAL DRAWING MODEL 405
COMPACT FLOWMETER
2/24/14JSDSI1051961AQ
REMOVE BETA CALLOUT FROM NOTE 6
TABLE 1: DIMENSIONAL & FLANGE RATINGS
(SEE NOTES 9 & 10)
FLANGE
SIZE
ANSI/DN
B
FLANGE RATING
150# ANSI 300# ANSI 600# ANSI DIN PN16 DIN PN40 DIN PN100 JIS 10K JIS 20K JIS 40K
THREAD SIZE / (QTY) / STUD LENGTH (NOTE: DIN & JIS LENGTHS GIVEN IN mm)
1/2"
DN15
1.38
[35]
1/2-13 (4) 4.50 1/2-13 (4) 4.75 1/2-13 (4) 5.25 M12 (4) 118 M12 (4) 130 M12 (4) 145 M12 (4) 120 M12 (4) 120 M16 (4) 140
1"
DN25
2.00
[51]
1/2-13 (4) 4.50 5/8-11 (4) 5.25 5/8-11 (4) 5.75 M12 (4) 120 M12 (4) 135 M16 (4) 165 M16 (4) 130 M16 (4) 140 M16 (4) 140
1-1/2"
DN40
2.88
[73]
1/2-13 (4) 5.00 3/4-10 (4) 5.75 3/4-10 (4) 6.50 M16 (4) 120 M16 (4) 135 M20 (4) 175 M16 (4) 130 M16 (4) 150 M20 (4) 150
2"
DN50
3.62
[92]
5/8-11 (4) 5.50 5/8-11 (8) 5.75 5/8-11 (8) 6.50 M16 (4) 140 M16 (4) 145 M24 (4) 180 M16 (4) 130 M16 (8) 150 M16 (8) 150
3"
DN80
5.00
[127]
5/8-11 (4) 5.75 3/4-10 (8) 6.50 3/4-10 (8) 7.25 M16 (8) 150 M16 (8) 165 M24 (8) 185 M16 (8) 140 M20 (8) 170 M20 (8) 170
4"
DN100
6.19
[157]
5/8-11 (8) 5.75 3/4-10 (8) 6.75 7/8-9 (8) 8.00 M16 (8) 150 M20 (8) 165 M27 (8) 200 M16 (8) 150 M20 (8) 170 M22 (8) 180
5"
DN125
7.31
[186]
3/4-10 (8) 6.50 3/4-10 (8) 7.50 1-8 (8) 9.5 M20 (8) 155 M24 (8) 185 M30 (12) 240 M20 (8) 170 M22 (8) 180 M24 (8) 190
6"
DN150
8.50
[216]
3/4-10 (8) 6.50 3/4-10 (12) 7.50 1-8 (12) 9.50 M20 (8) 155 M24 (8) 185 M30 (12) 240 M20 (8) 170 M22 (12) 180 M30 (12) 210
8"
DN200
10.62
[270]
3/4-10 (8) 6.75 7/8-9 (12) 8.25 1-1/8-7 (12) 10.25 M12 (12) 160 M27 (12) 305 M33 (12) 265 M20 (12) 170 M22 (12) 180 M30 (12) 230
10"
DN250
12.75
[324]
7/8-9 (12) 7.00 1-8 (16) 8.25 1-1/4-8 (16) 10.5 M24 (12) 170 M30 (12) 210 M36 (12) 270 M22 (12) 180 M24 (12) 200 M30 (12) 240
12"
DN300
15.00
[381]
7/8-9 (12) 7.00 1-1/8-8 (16) 9.00 1-1/4/8 (20) 11.00 M24 (12) 180 M30 (16) 240 M39 (16) 280 M22 (16) 180 M24 (16) 200 M36 (16) 260
NOTES:
1. ROSEMOUNT INC. CERTIFIES THIS DRAWING IS IN ACCORDANCE WITH ENGINEERING
SPECIFICATIONS AND ACCURATELY REPRESENTS THE EQUIPMENT FURNISHED.
2. SENSOR ORIENTATION SHOWN FOR DETAIL ONLY. FOR ACTUAL RECOMMENDED LOCATION AND
ORIENTATION REFER TO INSTALLATION MANUAL 00809-0100-4810.
3. FOR MODEL SELECTIONS, REFER TO ROSEMOUNT PRODUCT DATA SHEET 00813-0100-4810.
4. 405 TEMPERATURE LIMITS ARE -40°F TO 450°F FOR DIRECT MOUNT 3 VALVE MANIFOLD, -148°F TO 850°F
FOR REMOTE MOUNT WITH GRAPHOIL VALVE PACKING.
5. MATERIALS: 316/316L STAINLESS STEEL.
6. ORIFICE BORE HAS SQUARE EDGE. 405C/P ONLY.
7. 405 RATED TO 600# ANSI/PN100 316SST.
8. REMOTE MOUNT 3-VALVE MANIFOLD WITH ADAPTER PLATE AND 1/2" NPT FLANGE ADAPTERS:
ADAPTERS CAN BE ROTATED TO GIVE CONNECTIONS CENTERS OF 2.00 (51), 2.13 (54) OR 2.25 (57).
9. ASSEMBLY OF 405 TO FLANGE PIPE SECTION: ALIGNMENT RING WILL HAVE ETCHED FLANGE SIZE TO
BE INDEXED WITH STUDS TO INSURE PROPER ALIGNMENT OF 405 TO PIPE ID.
10. STUDS, NUTS AND GASKETS NOT INCLUDED WITH 405. CORRECT STUD SIZE PER TABLE 1 IS
CRITICAL FOR PROPER ALIGNMENT. RECOMMENDED GASKET: 1/8" MAX THICKNESS WITH APPROPRIATE
MATERAIL FOR APPLICATION CONDITIONS.
11. FOR OPTIMUM PERFORMANCE, ORIENTATION AND FLOW DIRECTION IS AS FOLLOWS:
GAS: DIRECT MOUNT OR REMOTE MOUNT OPTIONS ARE ACCEPTABLE IN HORIZONTAL OR
DOWNWARD FLOW IN A VERTICAL LINE.
LIQUID: DIRECT MOUNT OR REMOTE MOUNT OPTIONS ARE ACCEPTABLE IN A HORIZONTAL OR
UPWARD FLOWING VERTICAL LINE. IT IS NOT RECOMMENDED FOR USE IN A DOWNWARD FLOWING
VERTICAL LINE.
STEAM: REMOTE MOUNTING OPTION IS ACCEPTABLE IN A HORIZONTAL OR UPWARD FLOWING VERTICAL
LINE. DIRECT MOUNTING OPTION IS RECOMMENDED ONLY IN A HORIZONTAL LINE. IT IS NOT
RECOMMENDED FOR USE IN A DOWNWARD FLOWING LINE.
12. SPECIAL CLEANING IS NOT AVAILABLE WITH HIGH TEMPERATURE OPTION ON 405C/P OR ANY 405A.
405P
405C
405A
