Reference Manual
00809-0100-4809, Rev DA
Section 2: Installation
September 2015
Installation
Liquid

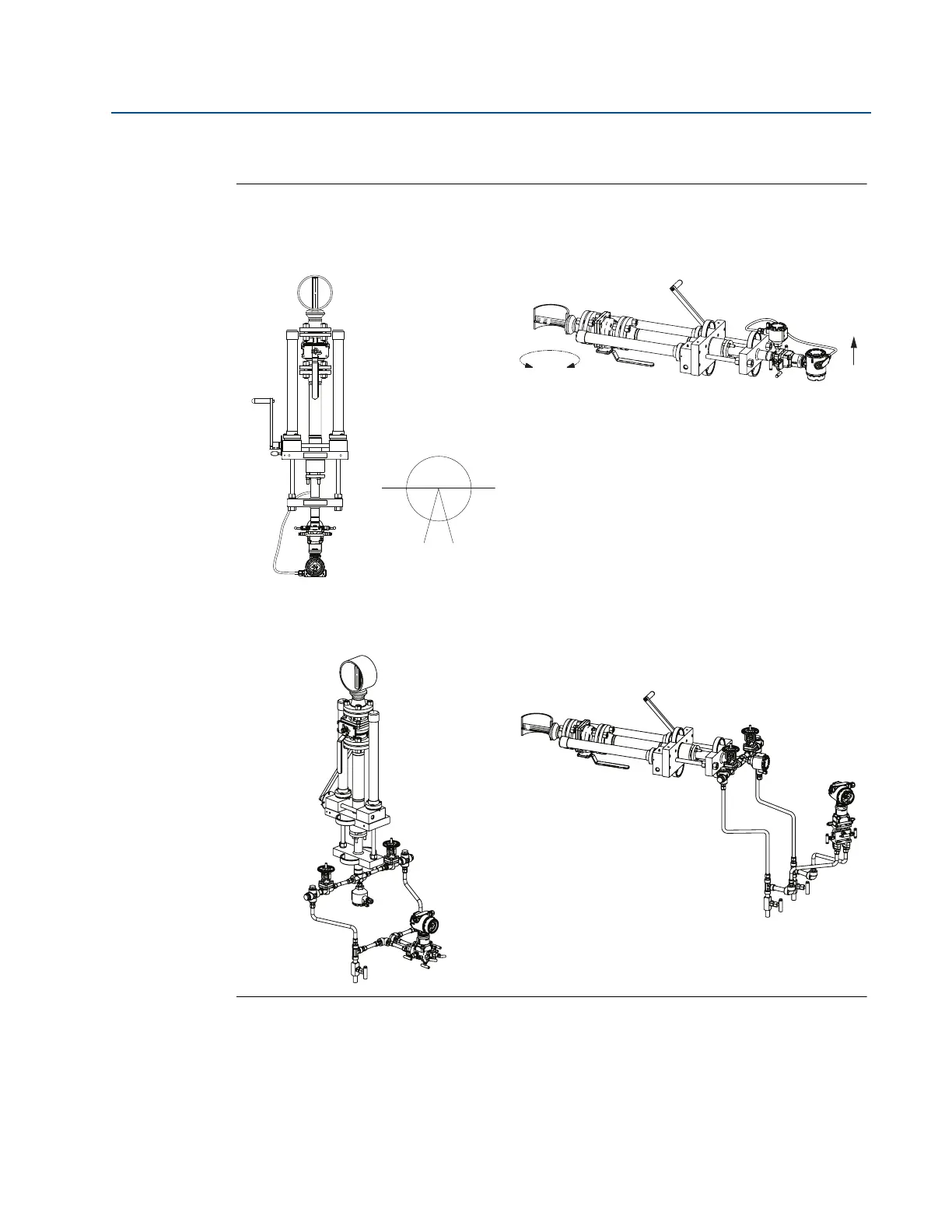

Figure 2-12. Liquid Service
Direct mount
Horizontal liquid Vertical liquid
Remote mount
Horizontal liquid Vertical liquid
30°
Recommended zone
360°
Flow
Note: Downward flow is not recommended.
