Reference Manual
00809-0100-4809, Rev DA
Section 2: Installation
September 2015
Installation
Steam

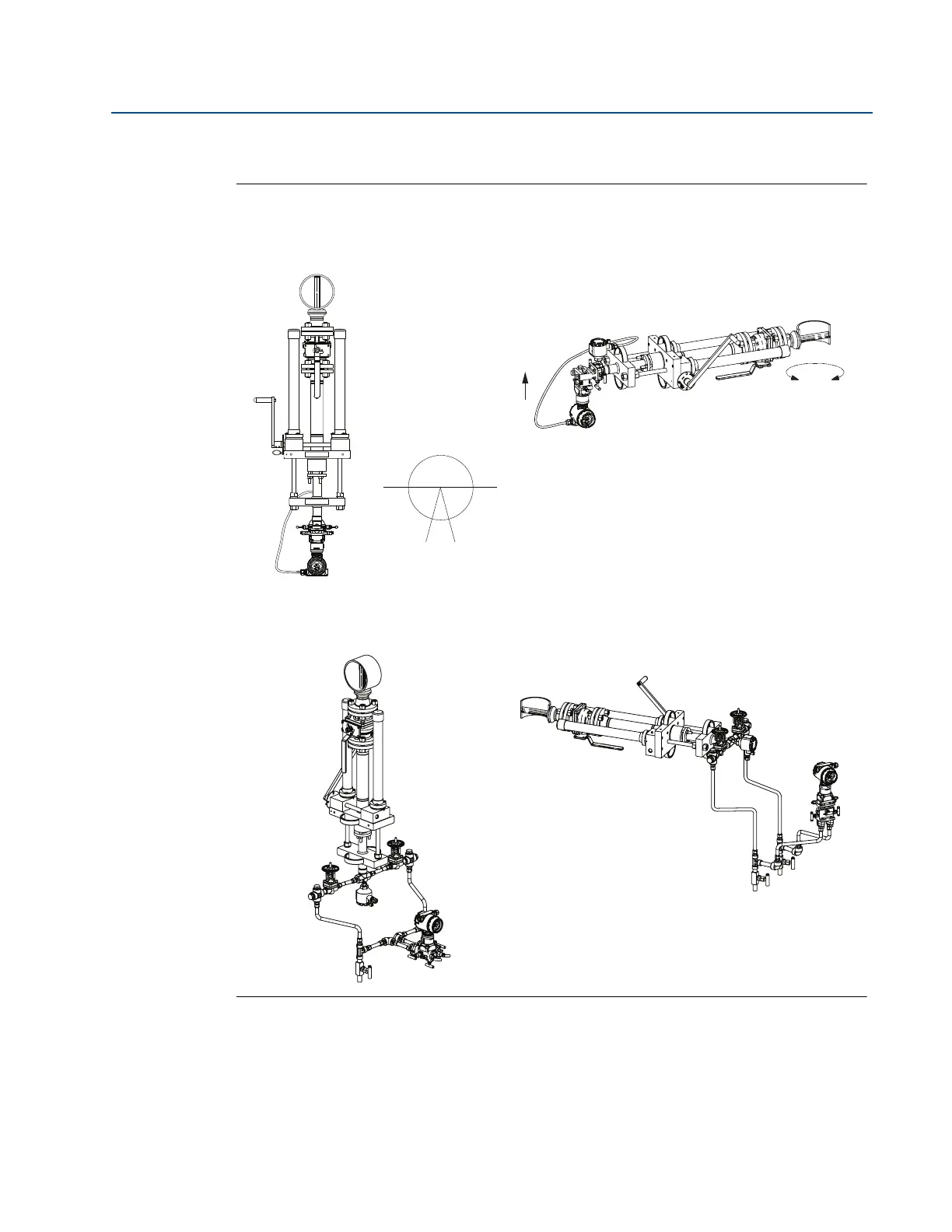

Figure 2-13. Steam
Direct mount
Horizontal steam Vertical steam
Remote mount
Horizontal steam Vertical steam
30°
Recommended zone
360°
Flow
Note: Downward flow is not recommended.
