26
Reference Manual
00809-0100-4809, Rev DA
Section 2: Installation
September 2015
Installation
8. Tighten the nuts onto the studs:
Place the included split-ring lock washer between each of the nuts and the
compression plate. Give each nut one half (
1
/2) turn in succession until the split-ring
lock washer is flat between the nut and the compression plate.
Inspect the unit for leakage; if any exists, tighten the nuts in one-quarter (
1
/4) turn
increments until there is no leakage.
Note
On sensor size (1), failure to use the split-ring lock washers, improper washer orientation, or
over-tightening the nuts may result in damage to the flowmeter.

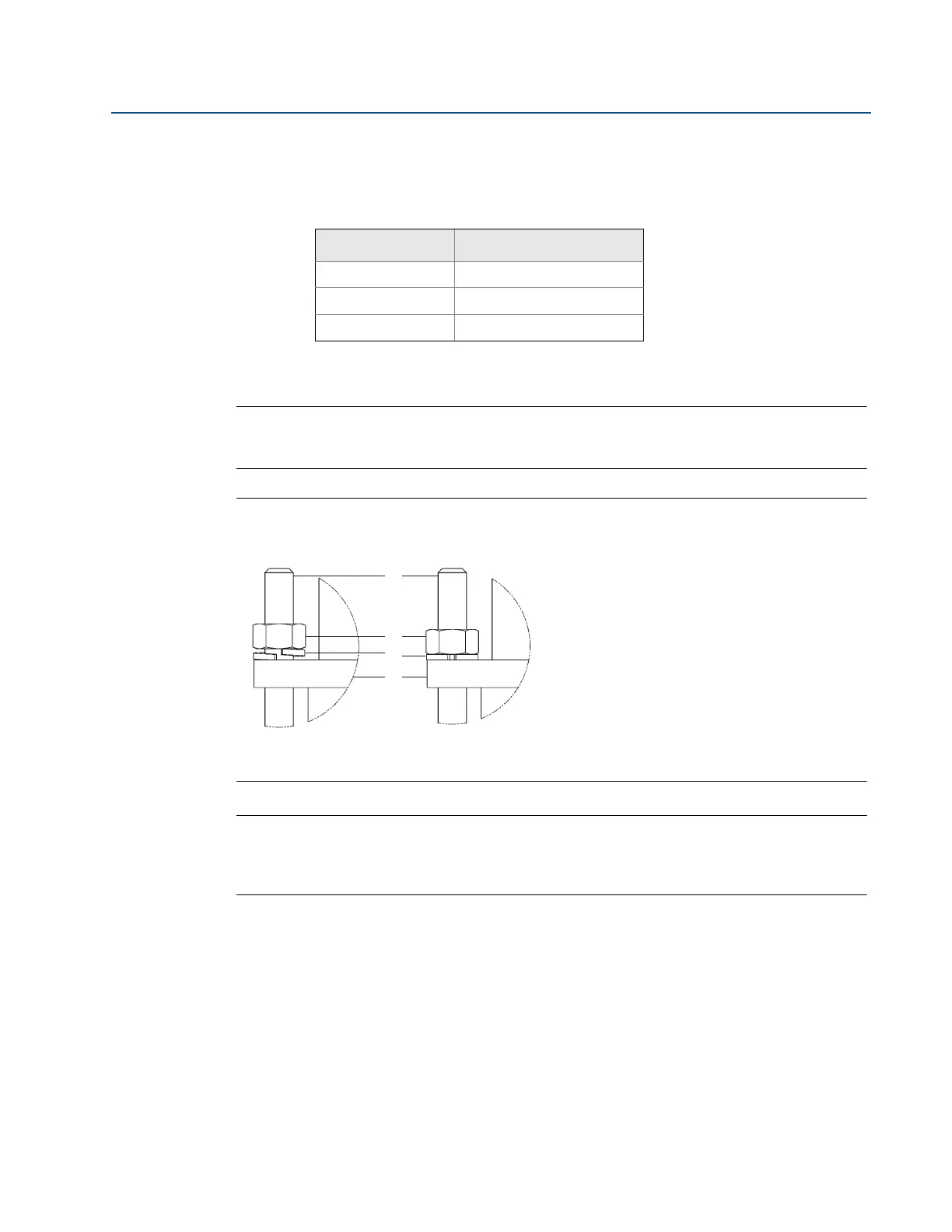

Figure 2-17. Split-Ring Lock Washer Orientation
Note
Pak-Lok sealing mechanisms generate significant force at the point where the sensor contacts
the opposite pipe wall. Caution needs to be exercised on thin-walled piping (ANSI Schedule 10
and below) to avoid damage to the pipe.
Sensor size Torque
1 40-in./lb (4.52 Nm)
2 100-in./lb (11.30 Nm)
3 250-in./lb (28.25 Nm)
Before Tightening After Tightening
A. Stud
B. Nut
C. Split ring lock washer
D. Compression plate
A
B
C
D
